3 CONTROL FUNCTIONS

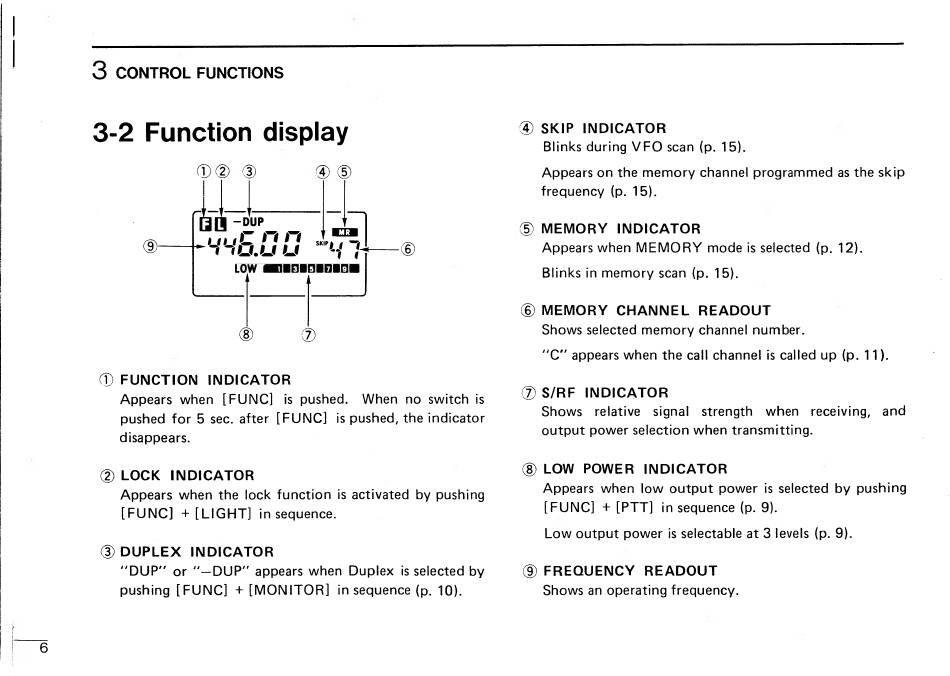

3-2 Function display
(t ORO
7 oa i
cla Em
"O 7 O
LOW SNIBEBDBEBDSS
8) D
(D FUNCTION INDICATOR
Appears when [FUNC] is pushed. When no switch is
pushed for 5 sec. after [FUNC] is pushed, the indicator
disappears.
(2 LOCK INDICATOR
Appears when the lock function is activated by pushing
[FUNC] + [LIGHT] in sequence.
(3 DUPLEX INDICATOR
"DUP" or "—DUP" appears when Duplex is selected by
pushing [FUNC] * [MONITOR] in sequence (p. 10).
©
;
4) SKIP INDICATOR
Blinks during VFO scan (p. 15).
Appears on the memory channel programmed as the skip
frequency (p. 15).
(5 MEMORY INDICATOR
Appears when MEMORY mode is selected (p. 12).
Blinks in memory scan (p. 15).
(6 MEMORY CHANNEL READOUT
Shows selected memory channel number.
"C" appears when the call channel is called up (p. 11).
(D S/RF INDICATOR
Shows relative signal strength when receiving, and
output power selection when transmitting.
(8 LON POWER INDICATOR
Appears when low output power is selected by pushing
[FUNC] + [PTT] in sequence (p. 9).
Low output power is selectable at 3 levels (p. 9).
(8 FREQUENCY READOUT
Shows an operating frequency.
