PANEL DESCRIPTION
Function display (Continued)
■
e t
q w r y u io !0
@3
@2
@1
@0
!9

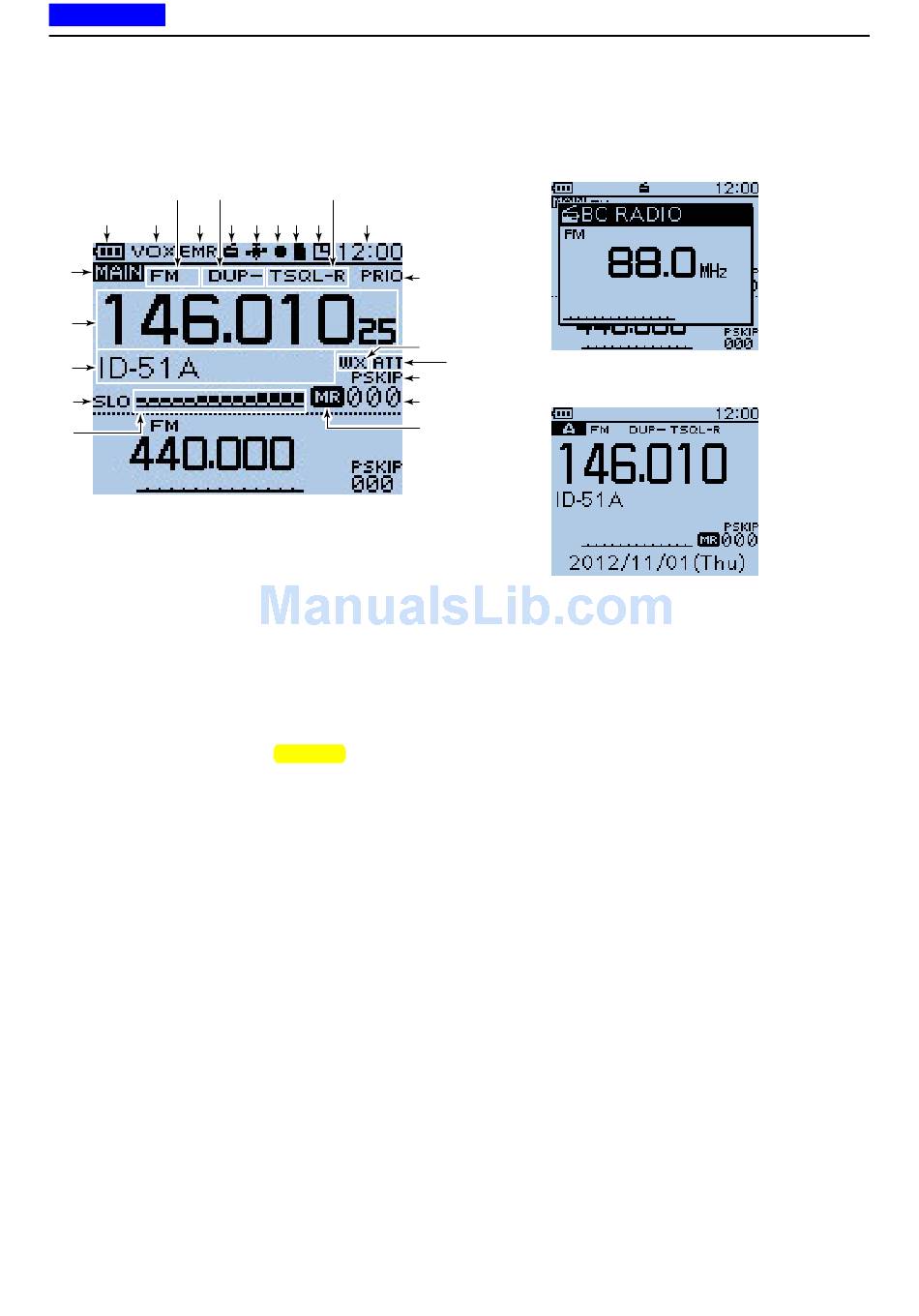

Dual band display
!1 TONE ICONS
• While operating in FM/FM-N mode:
(pp. 17-13, 17-15)
" TONE" appears while the Repeater Tone Encod-
➥
er is ON.
" TSQL" appears while the Tone squelch function
➥
is ON.
" TSQL-R" appears while the Reverse Tone
➥
squelch function is ON.
" DTCS" appears while the DTCS squelch function
➥
is ON.
" DTCS-R" appears while the reverse DTCS
➥
squelch function is ON.
➥ S" appears with the "TSQL" or "DTCS" icon "
while the Pocket Beep function (with CTCSS or
DTCS) is ON.
• While operating in DV mode: (pp. 9-19, 9-20)
" DSQL" appears while the Digital Call Sign squelch
➥
function is ON.
" CSQL" appears while the Digital Code squelch
➥
function is ON.
➥ S" appears with the "DSQL" or "CSQL" icon "
while the Pocket Beep function (with Digital Call
Sign or Digital Code squelch) is ON.
!2 CLOCK DISPLAY (p. 16-82)
Displays the current time.
!1
!2
!3
!4
!5
!6
!7
!8
!3 PRIORITY WATCH ICON (p. 14-5)
!4 WEATHER ALERT ICON (p. 5-15)
!5 ATTENUATOR ICON (p. 5-11)
!6 SKIP ICON (pp. 13-7, 13-8)
!7 MEMORY CHANNEL NUMBER
!8 MEMORY ICON (p. 12-3)
3-6
BC Radio setting pop-up
window (Tuning mode)
Single band display
Appears when Priority Watch is in use.
Appears when the Weather alert function is ON.
Appears when the attenuator is ON in the AIR band.
" SKIP" appears when the selected memory chan-
➥
nel is set as a skip channel.
" PSKIP" appears when the displayed frequency is
➥
set as a skip frequency in the Memory mode.
" PSKIP" appears while the Frequency Skip Scan
➥
function is ON in the VFO mode.
Displays the selected memory channel or bank
➥
number. (p. 12-3)
"C0" to "C3" appears when the Call channel is se-
➥
lected. (p. 12-3)
Appears when the Memory mode is selected.
