18
OPTIONS

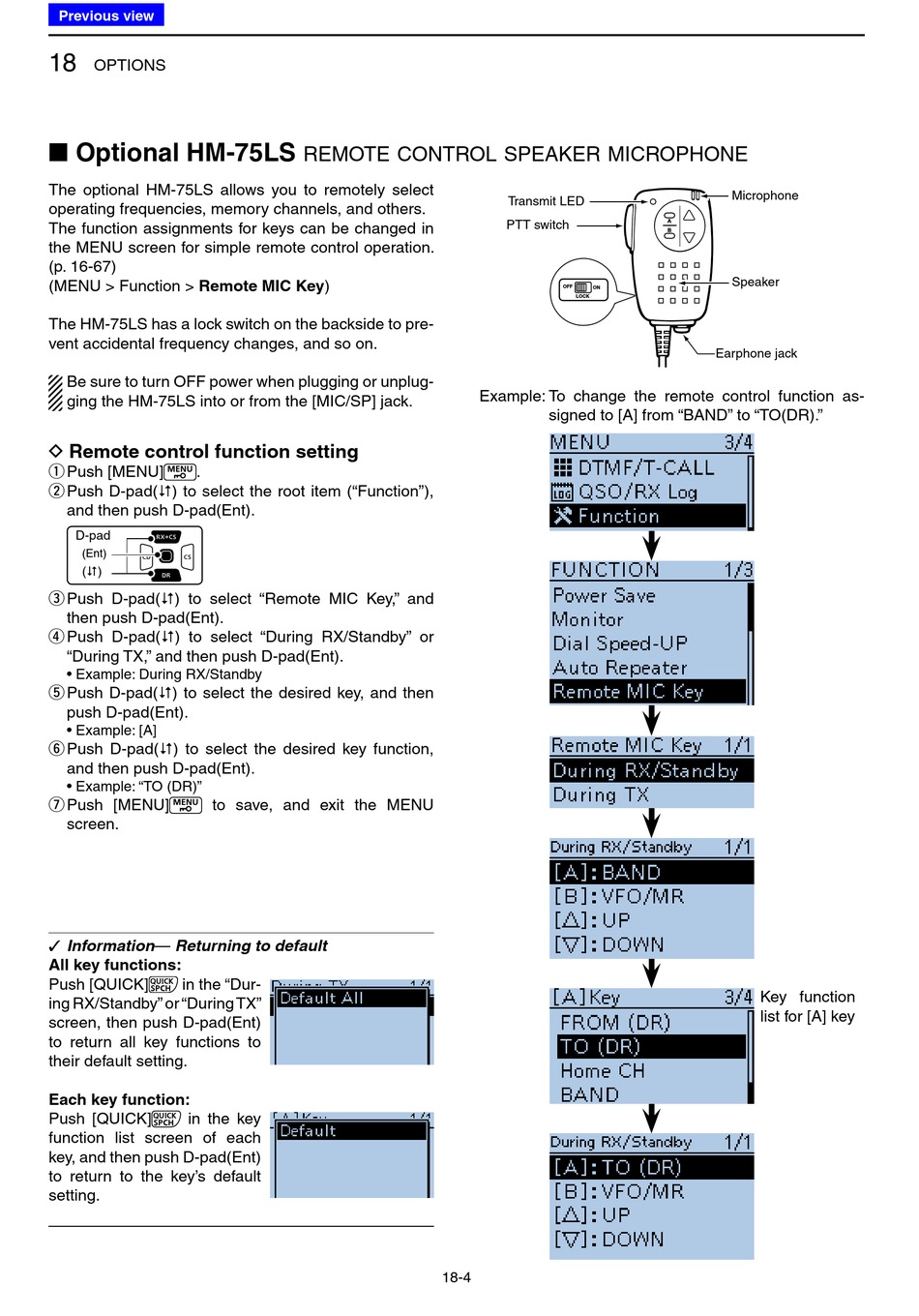

■ Optional HM-75LS
The optional HM-75LS allows you to remotely select
operating frequencies, memory channels, and others.
The function assignments for keys can be changed in
the MENU screen for simple remote control operation.
(p. 16-67)
(MENU > Function > Remote MIC Key)
The HM-75LS has a lock switch on the backside to pre-
vent accidental frequency changes, and so on.
Be sure to turn OFF power when plugging or unplug-
ging the HM-75LS into or from the [MIC/SP] jack.

D Remote control function setting

Push [MENU] .
q
Push D-pad( ) to select the root item ("Function"),
w
and then push D-pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select "Remote MIC Key," and
e
then push D-pad(Ent).
Push D-pad( ) to select "During RX/Standby" or
r
"During TX," and then push D-pad(Ent).
• Example: During RX/Standby
Push D-pad( ) to select the desired key, and then
t
push D-pad(Ent).
• Example: [A]
Push D-pad( ) to select the desired key function,
y
and then push D-pad(Ent).
• Example: "TO (DR)"
Push [MENU] to save, and exit the MENU
u
screen.
Information — Returning to default
✓
All key functions:
Push [QUICK] in the "Dur-
ing RX/Standby" or "During TX"
screen, then push D-pad(Ent)
to return all key functions to
their default setting.
Each key function:
Push [QUICK] in the key
function list screen of each
key, and then push D-pad(Ent)
to return to the key's default
setting.
remote control speaker microphone
18-4
Transmit LED
PTT switch
OFF
ON
LOCK
Example: To change the remote control function as-
signed to [A] from "BAND" to "TO(DR)."
Microphone
A
B
Speaker
Earphone jack
Key function
list for [A] key
