5
BASIC OPERATION

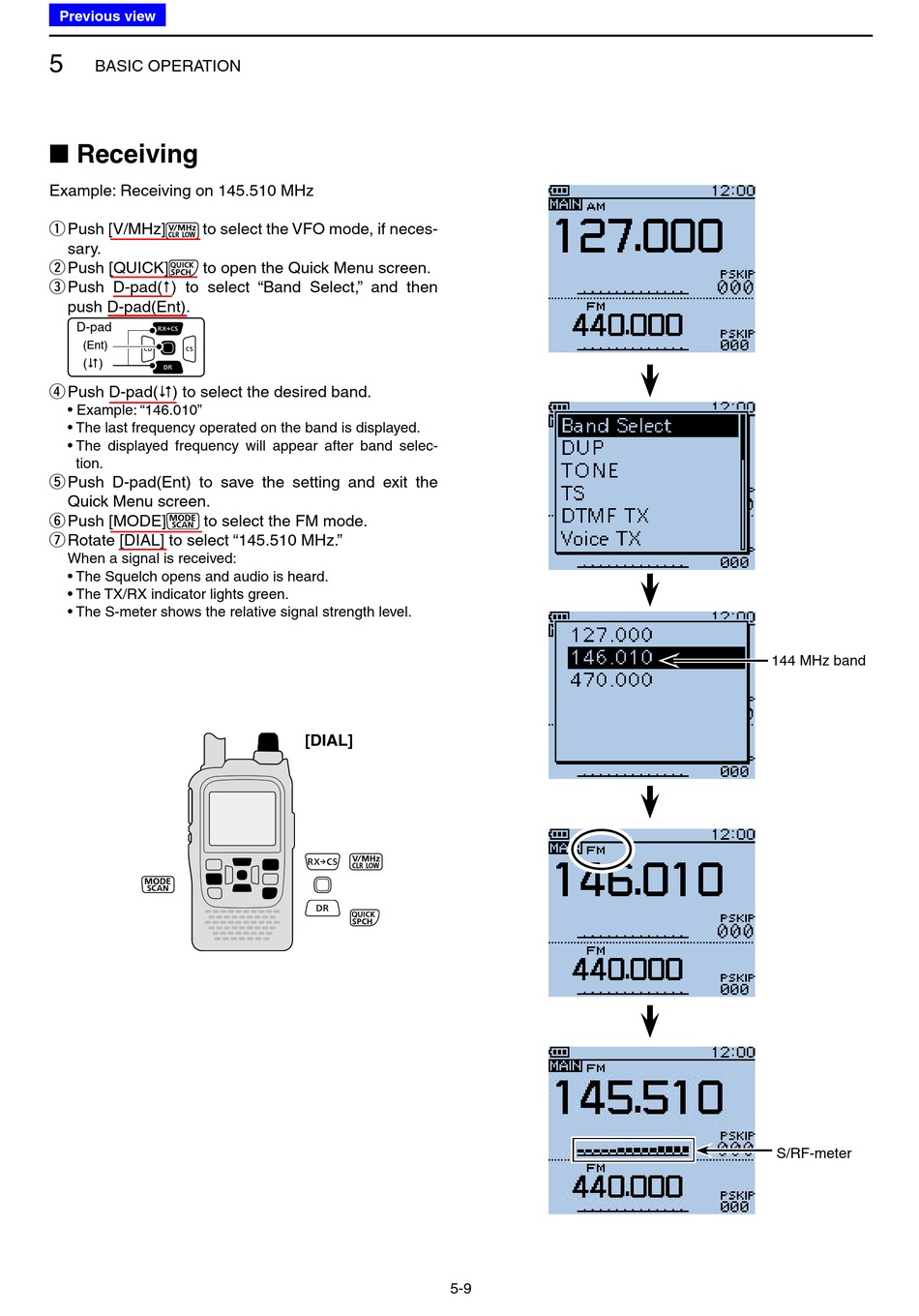

■ Receiving

Example: Receiving on 145.510 MHz
q Push [V/MHz] to select the VFO mode, if neces-
sary.
Push [QUICK] to open the Quick Menu screen.
w
Push D-pad( ) to select "Band Select," and then
e
push D-pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select the desired band.
r
• Example: "146.010"
• The last frequency operated on the band is displayed.
• The displayed frequency will appear after band selec-
tion.
Push D-pad(Ent) to save the setting and exit the
t
Quick Menu screen.
Push [MODE] to select the FM mode.
y
Rotate [DIAL] to select "145.510 MHz."
u
When a signal is received:
• The Squelch opens and audio is heard.
• The TX/RX indicator lights green.
• The S-meter shows the relative signal strength level.
[DIAL]
5-9
144 MHz band
S/RF-meter
