PANEL DESCRIPTION

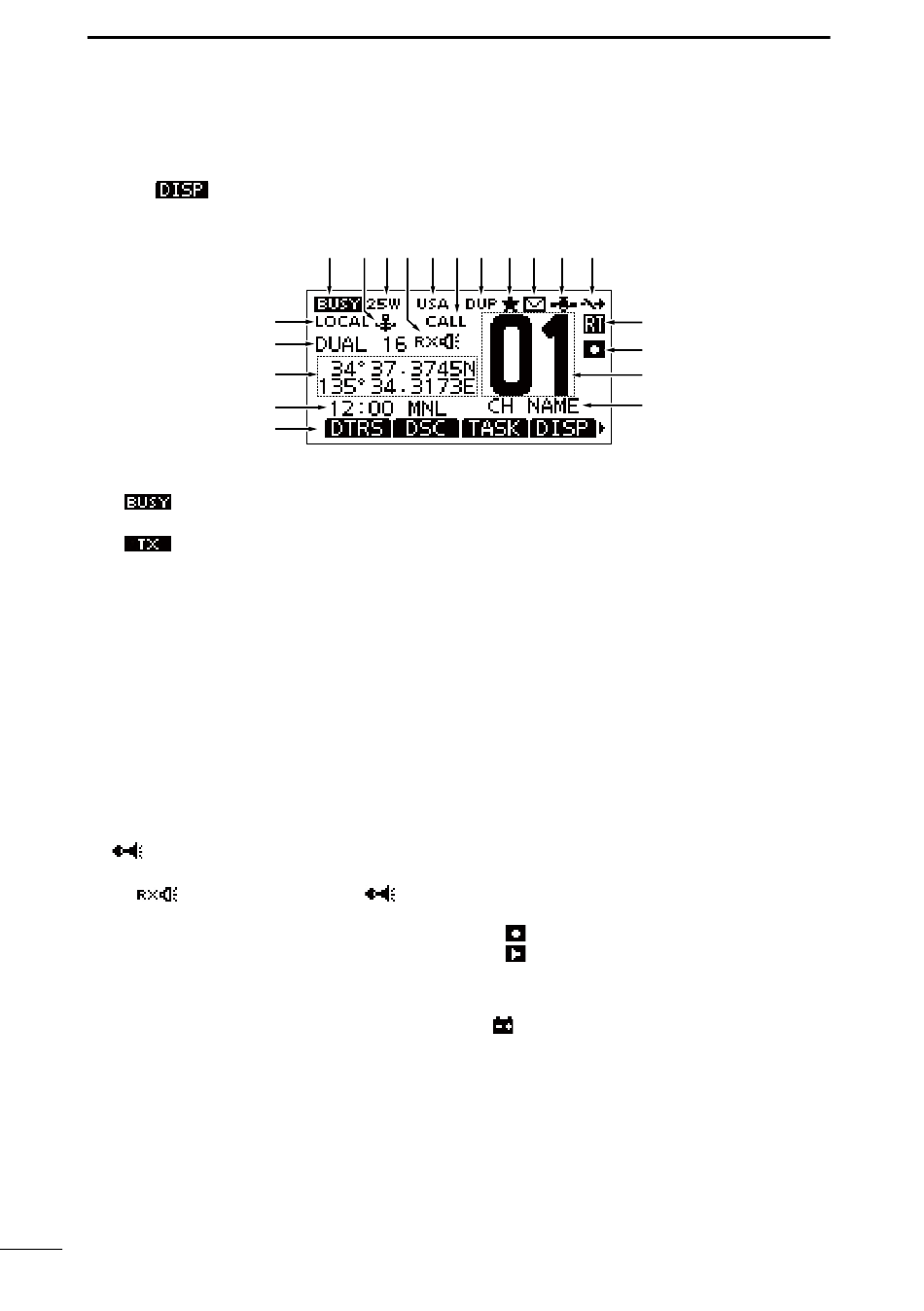

■ Function Display
L When you switch the main screen between the INFO, the Plotter, and the MOB screens,
push .*
* For only the IC-M510BB.
1 BUSY/TRANSMIT
• is displayed when receiving a
signal or the squelch is open.
• is displayed while transmitting.
2 ANCHOR WATCH INDICATOR
(For only the IC-M510BB)
Displayed when the Anchor Watch
function is activated. (p. 65)
3 POWER
• "25W" is displayed when high power is
selected.
• "1W" is displayed when low power is
selected.
4 RX HAILER
Displayed while in the RX Hailer mode.
AUTO FOGHORN
is displayed when the Auto Foghorn
function is activated.
takes precedence over
L
screen.
5 CHANNEL GROUP
Displays the selected channel group.
L The selectable channels diff er,
depending on the version or presetting.
6 CALL CHANNEL
Displayed when the Call channel is
selected
7 DUPLEX
Displayed when a Duplex channel is
selected.
8 FAVORITE CHANNEL
Displayed when a Favorite channel is
selected.
3
(INFO screen)
1 2 34 5 6 7 8 9 10 .
20
19
18
17
16
(p. 69)
(p. 71)
on the
(p. 9)
(p. 12)
(p. 15)
FELLECS-TECH | inbox@fellecs-tech.com | www.fellecs-tech.com
12
D
F
G
9 MESSAGE
• Displayed when there are unread DSC
messages
• Blinks when a DSC message is received.
10 GPS INDICATOR
• Displayed when the transceiver receives
valid position data.
• Blinks when invalid GPS data is being
received.
. CH AUTO SWITCH
Displayed when
"CH AUTO SWITCH" is
set to anything other than "Accept."
12 RT (Radio Telephone) INDICATOR
Displayed while in the Radio Telephone
mode.
L The transceiver returns to the Standby
mode if no operation occurs during the
preset period of time.
D VOICE RECORD
(For only the IC-M510BB)
• is displayed while recording the audio.
• is displayed while playing back the
recorded audio.
LOW BATTERY INDICATOR
is displayed when the battery voltage
is low.
F CH NUMBER READOUT
Displays the selected channel number
G CH NAME FIELD
The channel name is displayed.
(p. 41)
(p. 44)
(p. 67)
(p. 12)
