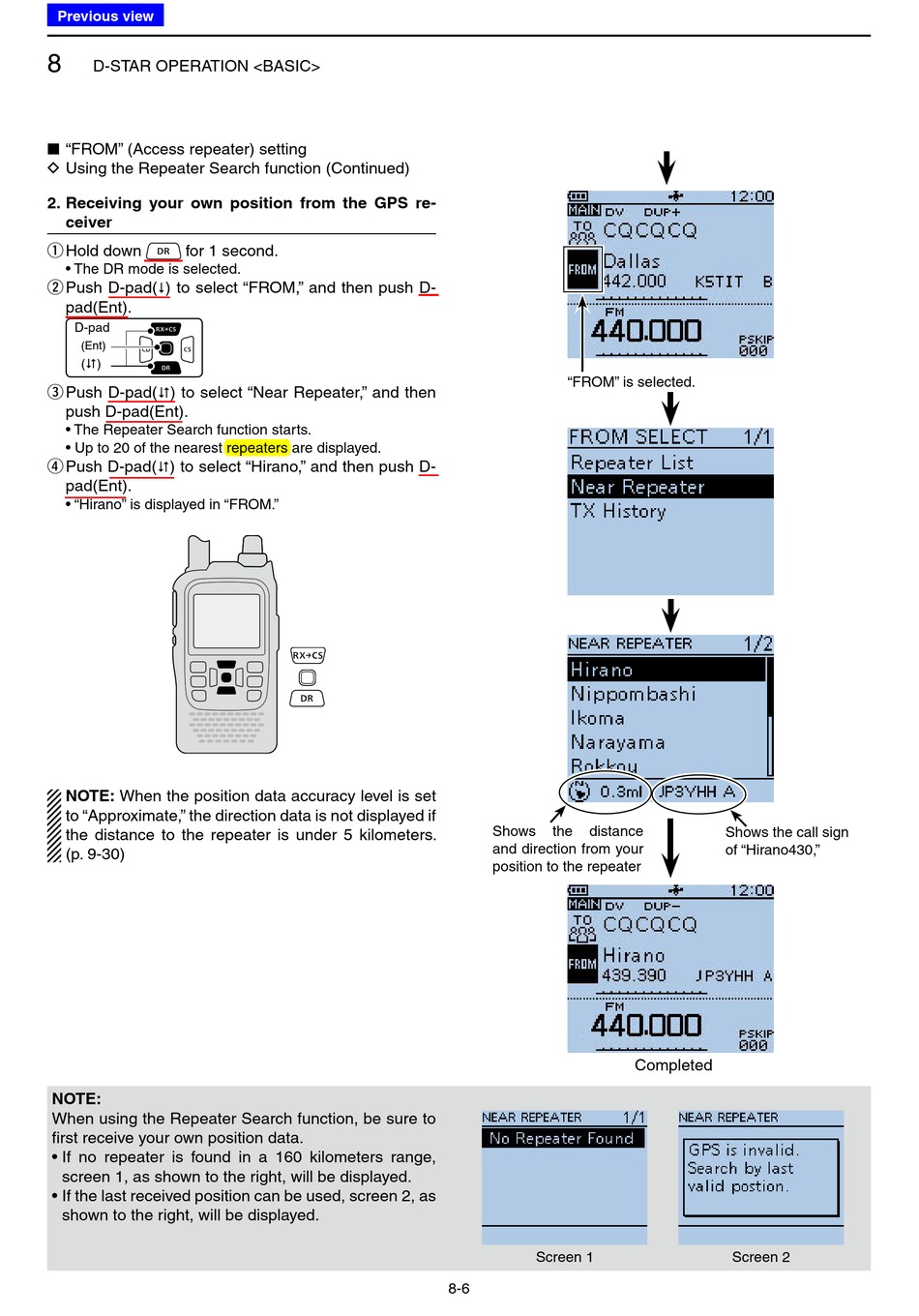

8
D-STAR OPERATION <BASIC>
"FROM" (Access repeater) setting
■
D Using the Repeater Search function (Continued)
2. Receiving your own position from the GPS re-
ceiver
Hold down for 1 second.
q
• The DR mode is selected.
Push D-pad( ) to select "FROM," and then push D-
w

pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select "Near Repeater," and then
e 
push D-pad(Ent).
• The Repeater Search function starts.
• Up to 20 of the nearest repeaters are displayed.
Push D-pad( ) to select "Hirano," and then push D-
r 
pad(Ent).
• "Hirano" is displayed in "FROM."
NOTE: When the position data accuracy level is set
to "Approximate," the direction data is not displayed if
the distance to the repeater is under 5 kilometers.
(p. 9-30)
NOTE:
When using the Repeater Search function, be sure to
first receive your own position data.
• If no repeater is found in a 160 kilometers range,
screen 1, as shown to the right, will be displayed.
• If the last received position can be used, screen 2, as
shown to the right, will be displayed.
"FROM" is selected.
Shows the distance
and direction from your
position to the repeater
Screen 1
8-6
Shows the call sign
of "Hirano430,"
Completed
Screen 2
