17
OTHER FUNCTIONS
Using the DTMF memory (Continued)
■

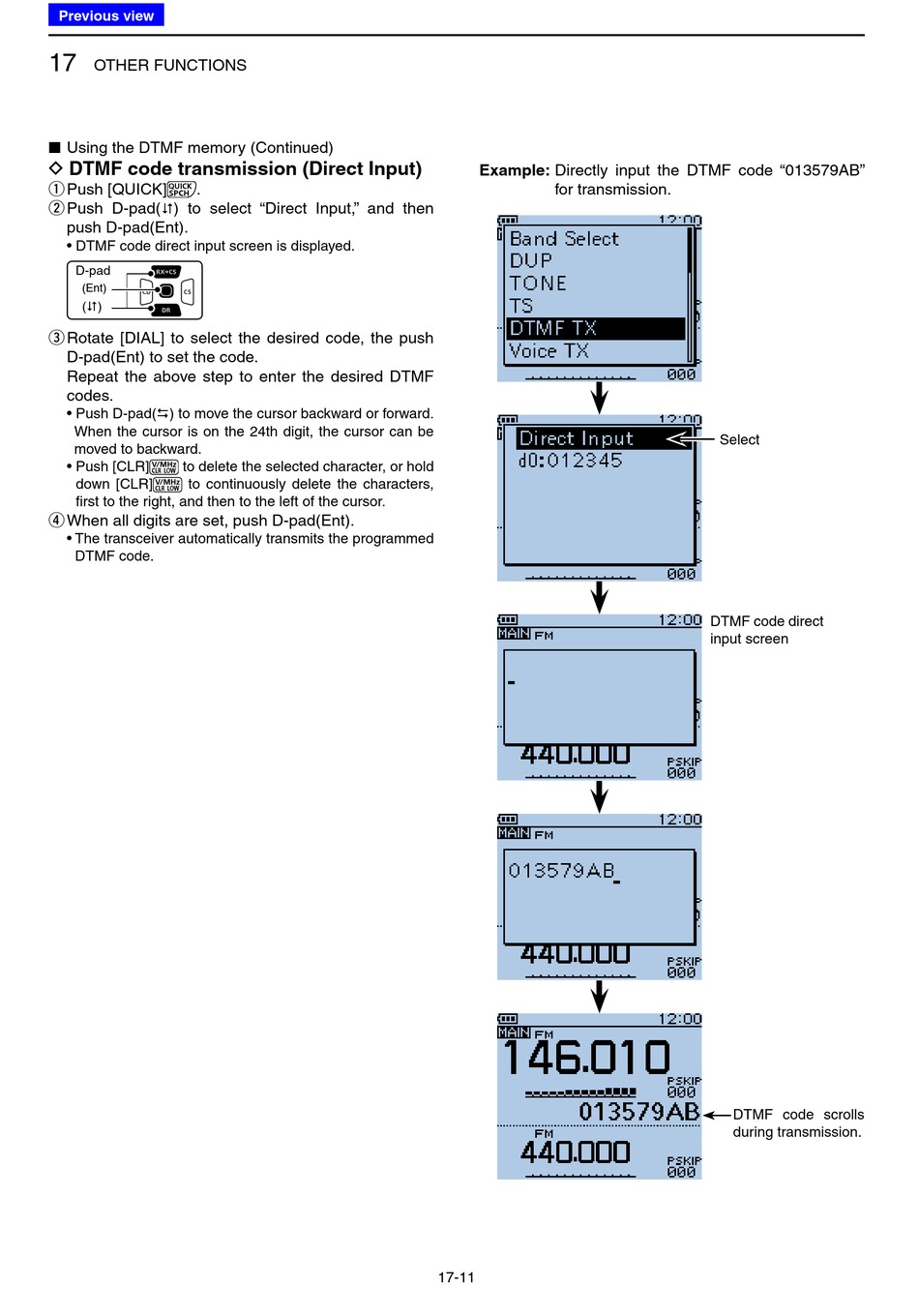

D DTMF code transmission (Direct Input)
Push [QUICK] .
q
Push D-pad( ) to select "Direct Input," and then
w 
push D-pad(Ent).
• DTMF code direct input screen is displayed.
D-pad
(Ent)
(�)
Rotate [DIAL] to select the desired code, the push
e
D-pad(Ent) to set the code.
Repeat the above step to enter the desired DTMF
codes.
• Push D-pad() to move the cursor backward or forward.
When the cursor is on the 24th digit, the cursor can be
moved to backward.
• Push [CLR] to delete the selected character, or hold
down [CLR] to continuously delete the characters,
first to the right, and then to the left of the cursor.
When all digits are set, push D-pad(Ent).
r
• The transceiver automatically transmits the programmed
DTMF code.
Example: Directly input the DTMF code "013579AB"
for transmission.
17-11
Select
DTMF code direct
input screen
DTMF code scrolls
during transmission.
