16

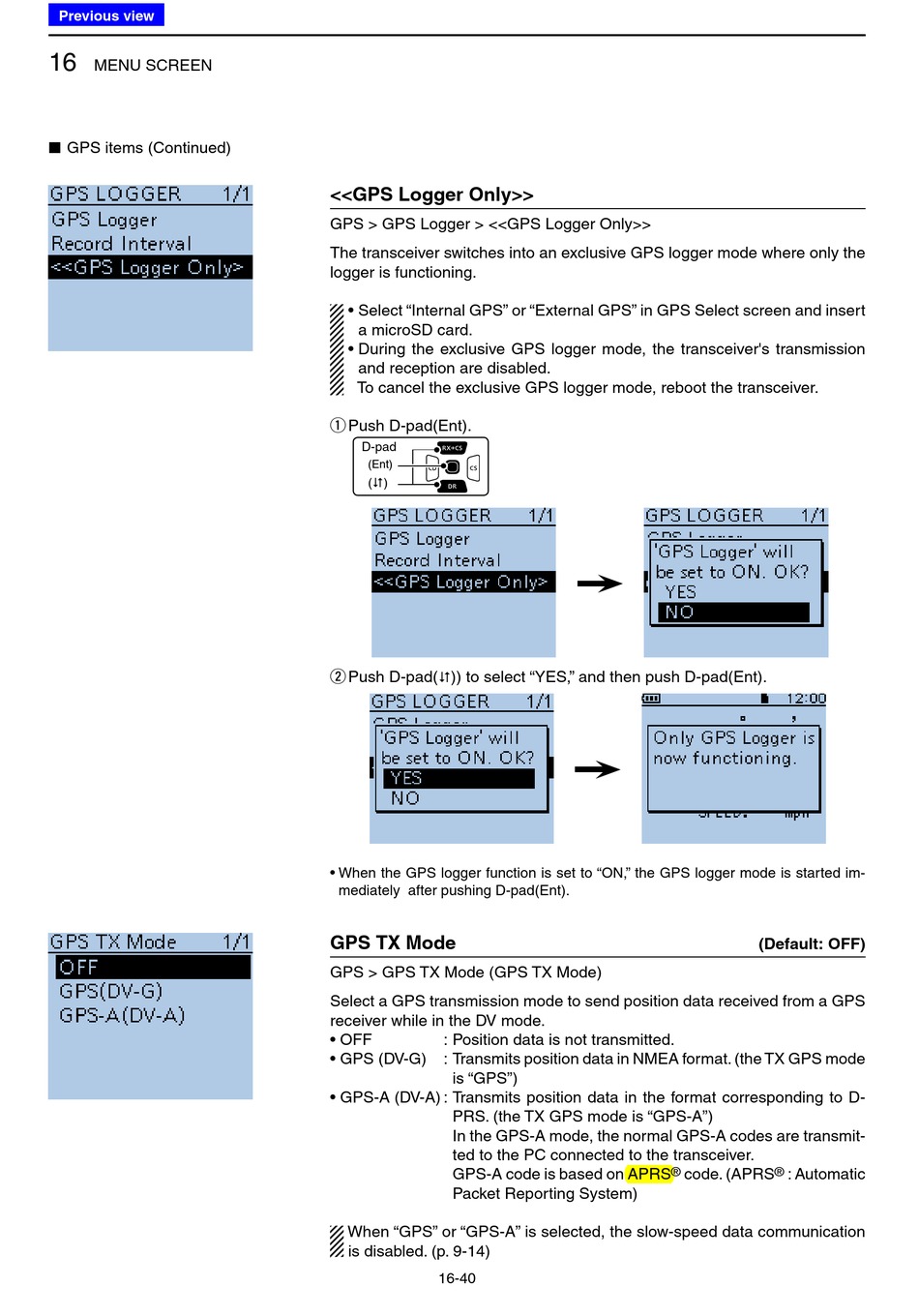

MENU SCREEN
GPS items (Continued)
■
<<GPS Logger Only>>
GPS > GPS Logger > <<GPS Logger Only>>
The transceiver switches into an exclusive GPS logger mode where only the
logger is functioning.
• Select "Internal GPS" or "External GPS" in GPS Select screen and insert
a microSD card.
• During the exclusive GPS logger mode, the transceiver's transmission
and reception are disabled.
To cancel the exclusive GPS logger mode, reboot the transceiver.
Push D-pad(Ent).
q
D-pad
(Ent)
(�)
Push D-pad( )) to select "YES," and then push D-pad(Ent).
w 
• When the GPS logger function is set to "ON," the GPS logger mode is started im-
mediately after pushing D-pad(Ent).
GPS TX Mode
GPS > GPS TX Mode (GPS TX Mode)
Select a GPS transmission mode to send position data received from a GPS
receiver while in the DV mode.
• OFF : Position data is not transmitted.
• GPS (DV-G) : Transmits position data in NMEA format. (the TX GPS mode
is "GPS")
• GPS-A (DV-A) : Transmits position data in the format corresponding to D-
PRS. (the TX GPS mode is "GPS-A")
In the GPS-A mode, the normal GPS-A codes are transmit-
ted to the PC connected to the transceiver.
GPS-A code is based on APRS
Packet Reporting System)
When "GPS" or "GPS-A" is selected, the slow-speed data communication
is disabled. (p. 9-14)
16-40
(Default: OFF)
® code. (APRS ® : Automatic
