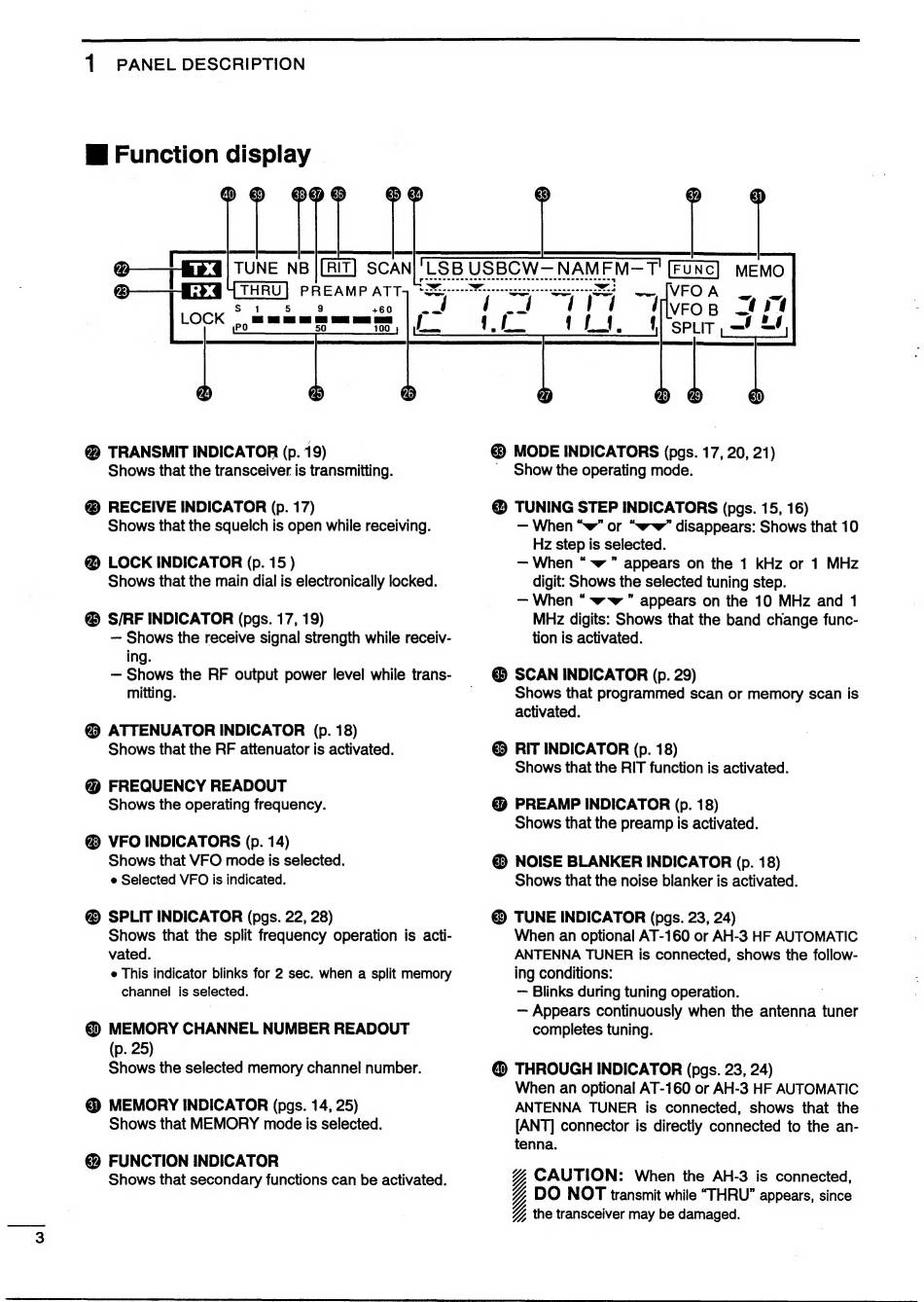

1 PANEL DESCRIPTION
W Function display
............
THRU| PREAMP ATT
S 1 5 9 +60
LOCK Pe) Por tT lt
PO 50 100
40 | 36
gi NB SCAN] LSB USBCW— NAMFM—T MEM
Aa ic
@ TRANSMIT INDICATOR (p. 19)
Shows that the transceiver is transmitting.
@ RECEIVE INDICATOR (p. 17)
Shows that the squelch is open while receiving.
@ LOCK INDICATOR (p. 15)
Shows that the main dial is electronically locked.
@ S/RF INDICATOR (pgs. 17, 19)
— Shows the receive signal strength while receiv-
ing.
— Shows the RF output power level while trans-
mitting.
@ ATTENUATOR INDICATOR (p. 18)
Shows that the RF attenuator is activated.
@ FREQUENCY READOUT
Shows the operating frequency.
@ VFO INDICATORS (p. 14)
Shows that VFO mode is selected.
e Selected VFO is indicated.
@ SPLIT INDICATOR (pgs. 22, 28)
Shows that the split frequency operation is acti-
vated.
e This indicator blinks for 2 sec. when a split memory
channel is selected.
€ MEMORY CHANNEL NUMBER READOUT
(p. 25)
Shows the selected memory channel number.
@ MEMORY INDICATOR (pgs. 14, 25)
Shows that MEMORY mode is selected.
@ FUNCTION INDICATOR
Shows that secondary functions can be activated.
O
..............................
i]
1I.
@ MODE INDICATORS (pgs. 17, 20, 21)
' Show the operating mode.
@ TUNING STEP INDICATORS (pgs. 15, 16)
— When "w" or "ww" disappears: Shows that 10
Hz step is selected.
— When "~~" appears on the 1 kHz or 1 MHz
digit: Shows the selected tuning step.
— When "we" appears on the 10 MHz and 1
MHz digits: Shows that the band change func-
tion is activated.
@ SCAN INDICATOR (p. 29)
Shows that programmed scan or memory scan is
activated.
€ RIT INDICATOR (p. 18)
Shows that the RIT function is activated.
D PREAMP INDICATOR (p. 18)
Shows that the preamp is activated.
@ NOISE BLANKER INDICATOR (p. 18)
Shows that the noise blanker is activated.
@ TUNE INDICATOR (pgs. 23, 24)
When an optional AT-160 or AH-3 HF AUTOMATIC
ANTENNA TUNER is connected, shows the follow-
ing conditions:
— Blinks during tuning operation.
— Appears continuously when the antenna tuner
completes tuning. ;
@ THROUGH INDICATOR (pgs. 23, 24)
When an optional AT-160 or AH-3 HF AUTOMATIC
ANTENNA TUNER is connected, shows that the
[ANT] connector is directly connected to the an-
tenna.
Y CAUTION: When the AH-3 is connected,
Z DO NOT transmit while "THRU" appears, since
Z the transceiver may be damaged.
