FUEL INJECTION (FUEL SYSTEMS)

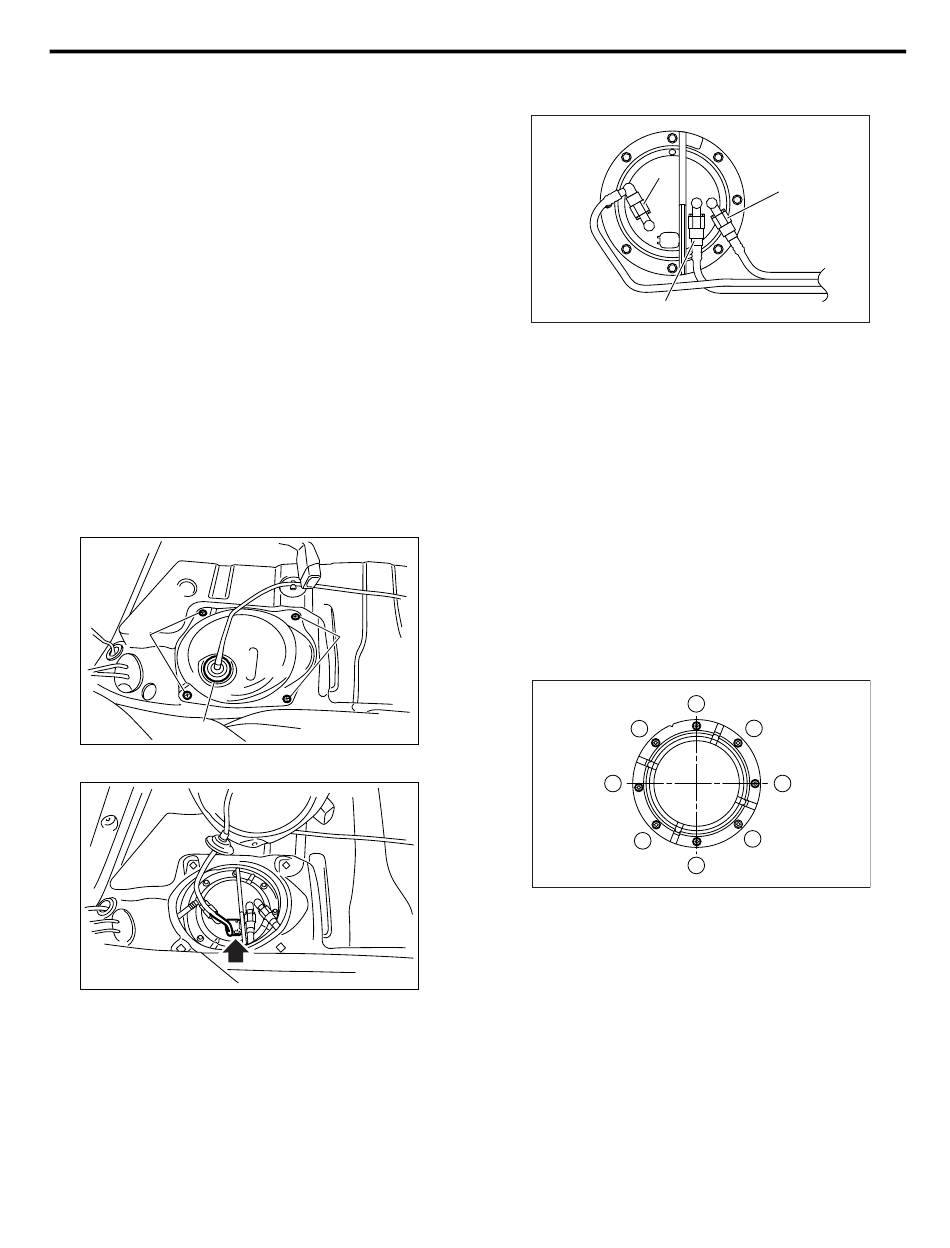

25.Fuel Pump
A: REMOVAL
WARNING:
• Place "NO FIRE" signs near the working area.
• Be careful not to spill fuel on the floor.
• Reduce the fuel in the fuel tank to less than
3/4 beforehand. Be careful that fuel may spill
when the fuel is more than 3/4.
NOTE:
Fuel pump assembly consists of fuel pump and fuel
level sensor.
1) Release the fuel pressure. <Ref. to FU(H6DO)-
39, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
2) Drain fuel. <Ref. to FU(H6DO)-39, DRAINING
FUEL, PROCEDURE, Fuel.>
3) Remove the rear seat.
4) Remove the service hole cover.
(1) Remove the bolts (A).
(2) Push the grommet (B) down and remove
service hole cover.
(A)
(B)
5) Disconnect the connector from fuel pump.
6) Disconnect the quick connector and then discon-
nect the fuel delivery hose, return hose and jet
pump hose. <Ref. to FU(H6DO)-54, REMOVAL,
Fuel Delivery, Return and Evaporation Lines.>
Fuel Pump
7) Remove the nuts which install the fuel pump as-
sembly to fuel tank.
8) Remove the fuel pump assembly from fuel tank.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Use a new gasket.
(1) Ensure the sealing portion is free from fuel or
foreign particles before installation.
(2) Tighten the nuts to specified torque in the order
as shown in the figure.
Tightening torque:
(A)
4.4 N
FU-01124
FU-01125
FU(H6DO)-48
(B)
(A)
(A) Delivery hose
(B) Return hose
(C) Jet pump hose
⋅
m (0.45 kgf-m, 3.2 ft-lb)
1
4
6
7
2
(C)
FU-01140
8
5
3
FU-01141
