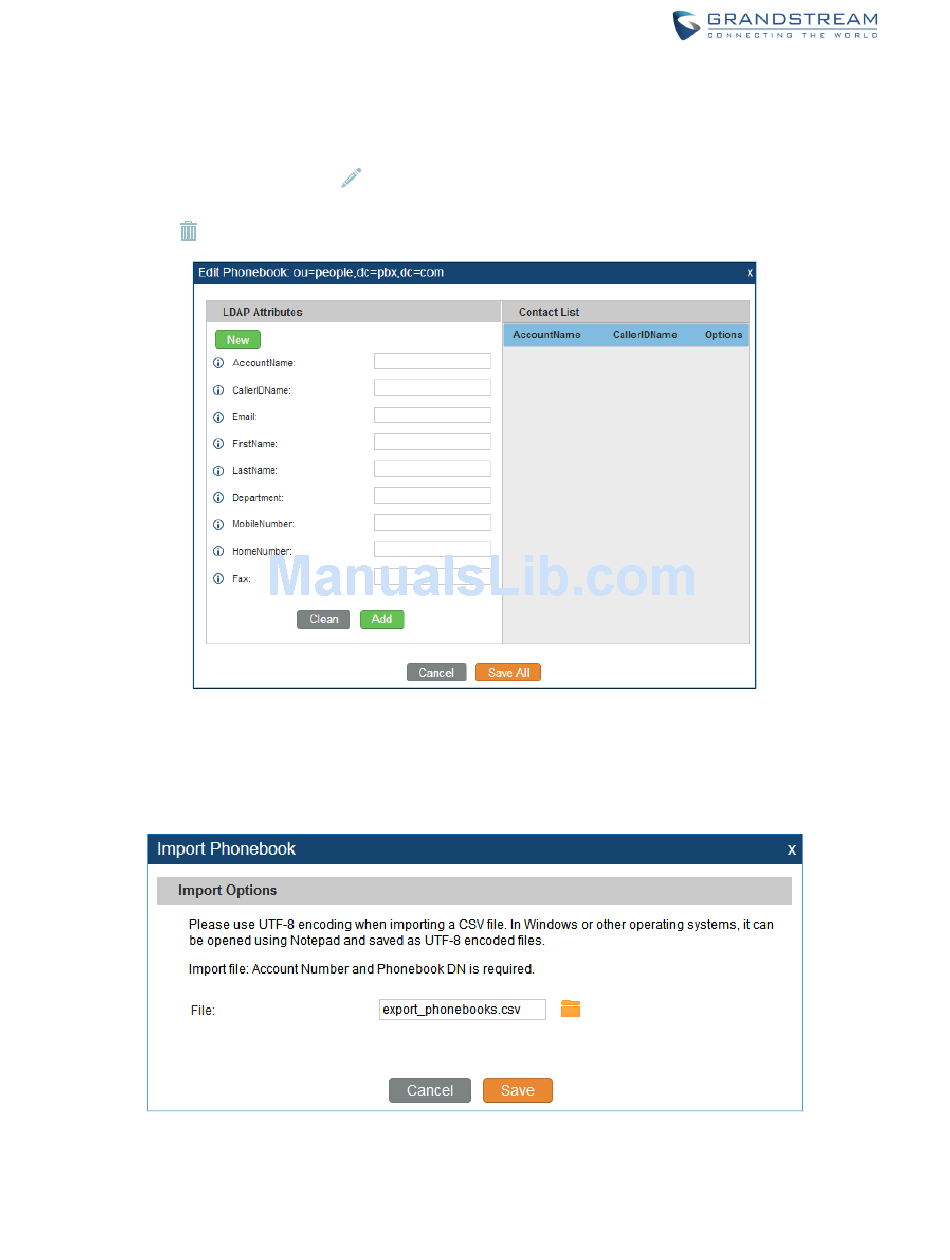

Figure 35: Edit Ldap Phonebook; Figure 36: Import Phonebook - Grandstream Networks UCM6510 User Manual

Configure the "Phonebook Prefix" first. The "Phonebook DN" will be automatically filled in. For
example, if configuring "Phonebook Prefix" as "people", the "Phonebook DN" will be filled with
"ou=people,dc=pbx,dc=com".
Once added, users can select
or select to delete the phonebook.
Import phonebook from your computer to LDAP server
•
Click on "Import Phonebook" and a dialog will prompt as shown in the figure below.
Firmware Version 1.0.2.5
to edit the phonebook attributes and contact list (see figure below),
Figure 35: Edit LDAP Phonebook
Figure 36: Import Phonebook
UCM6510 IP PBX User Manual Page 65 of 317
