On the UCM6510 web UI->Settings->Network Settings->Port Forwarding, configure a port
•
forwarding entry as the figure shows below.
WAN Port: This is the port opened up on the WAN side for access purpose.
LAN IP: This is the GXP2160 IP address, under the LAN interface network of the UCM6510.
Protocol Type: We select TCP here for web UI access using HTTP.
This will allow users to access the GXP2160 web UI from public side, by typing in address "1.1.1.1:8088".
Firmware Version 1.0.2.5

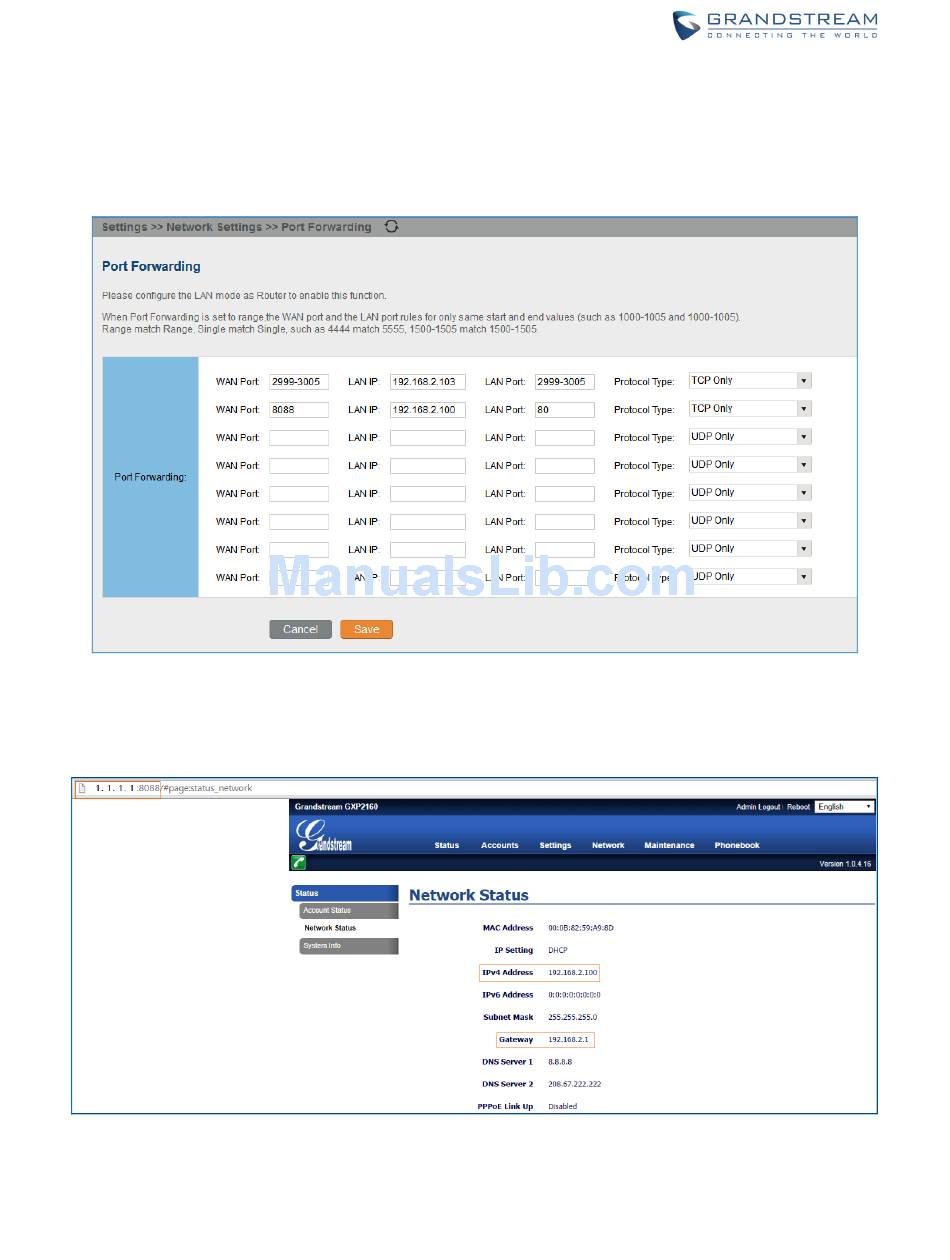

Figure 24: UCM6510 Port Forwarding Configuration
Figure 25: GXP2160 Web Access Using UCM6510 Port Forwarding
UCM6510 IP PBX User Manual
Page 55 of 317
