Manage Devices; Figure 62: Create New Device; Figure 63: Manage Devices - Grandstream Networks UCM6510 User Manual

1. Firstly select a model for the device to be created and enter its MAC address, IP address and firmware
version (optional) in the corresponding field.
2. Basic settings will show a list of settings based on the model selected in step 1. Users could assign
extensions to accounts, assign functions to Line Keys and Multiple-­Purposed Keys if supported on the
selected model.
3. Click on "Create New Device" to save the configuration for this device.
MANAGE D EVICES
The device manually created or discovered from Auto Discover will be listed in the web UI-­>PBX-­>Zero
Config-­>Zero Config page. Users can see the devices with their MAC address, IP address, vendor,
model and etc.
1. Click on to access the web UI of the phone.
2. Click on to edit the device configuration.
Firmware Version 1.0.2.5

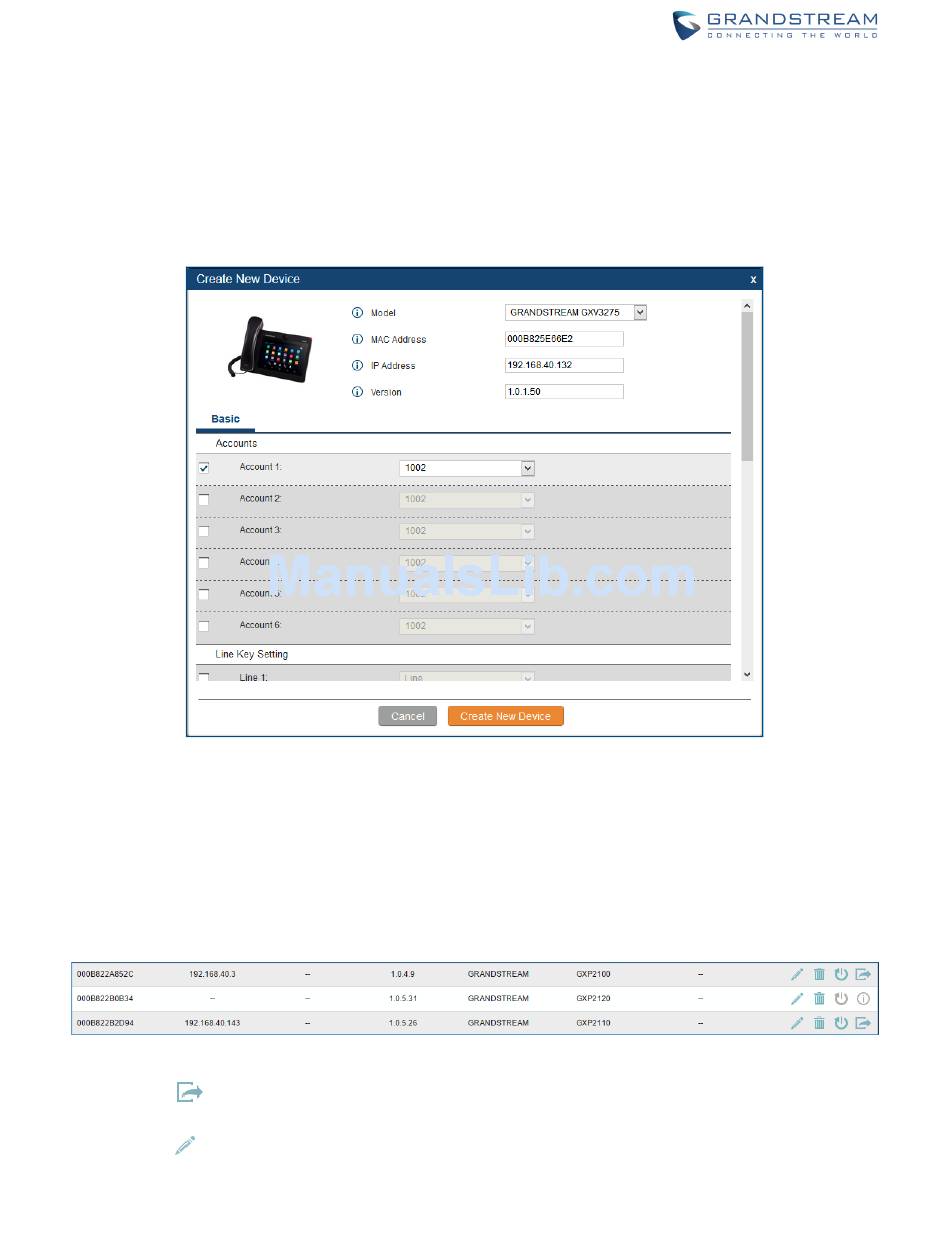

Figure 62: Create New Device
Figure 63: Manage Devices
UCM6510 IP PBX User Manual Page 100 of 317
