Method: Dual
•
Both WAN port and LAN port are used for uplink connection. WAN port will be mapped to LAN 1
interface;; LAN port will be mapped to LAN 2 interface. Users will need assign LAN 1 or LAN 2 as the
default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this
interface.
Firmware Version 1.0.2.5

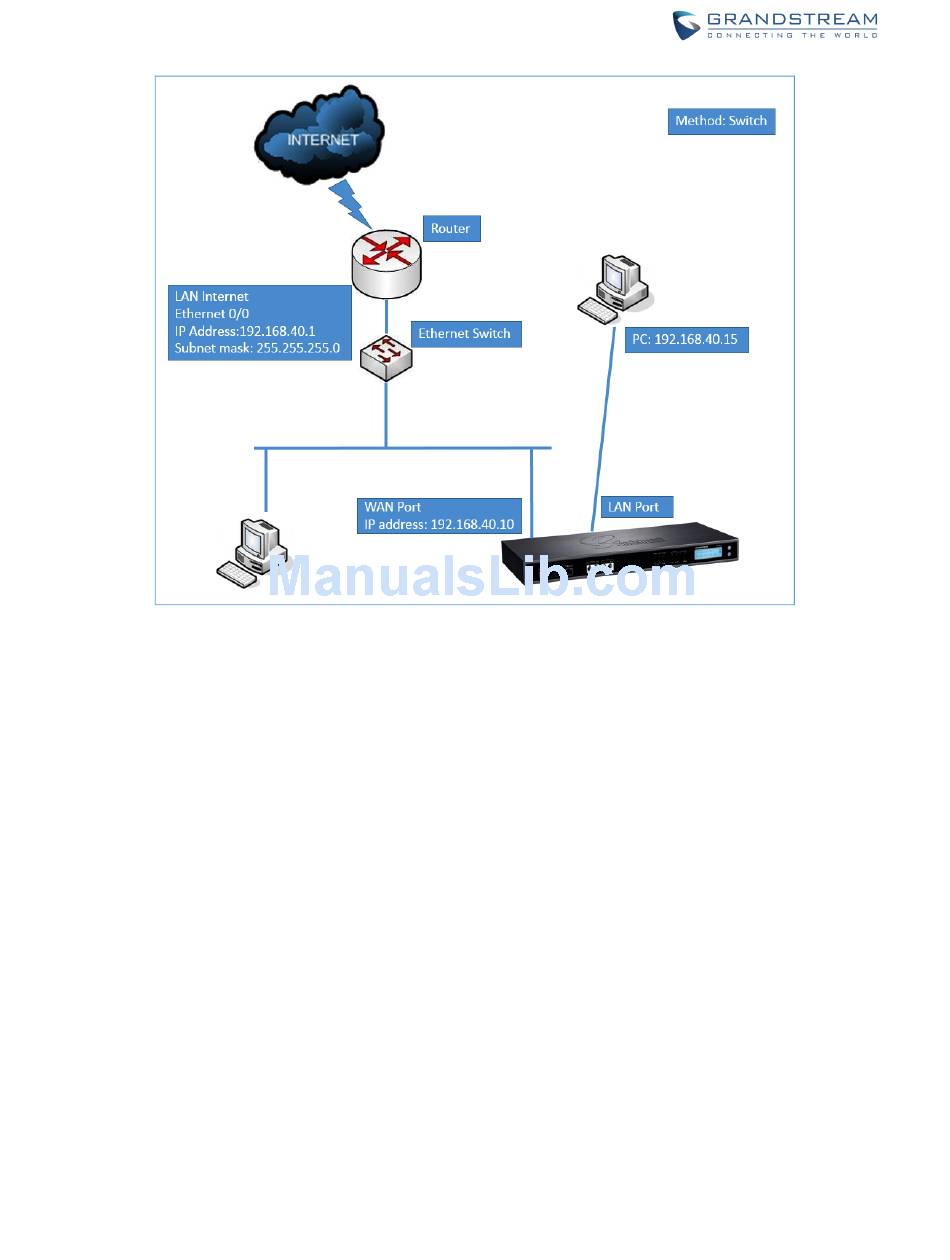

Figure 18: UCM6510 Network Interface Method: Switch
UCM6510 IP PBX User Manual
Page 49 of 317
