Interfaces Status - Grandstream Networks UCM6510 User Manual

Users could see all the conference room status in this section. It shows all the configured conference
rooms, current users, call duration for each user and conference call.
Other operations are also available in conference room status section:
Click on "Conference Rooms", the web page will redirect to conference room configuration page which
•
can also be accessed via web GUI-­>PBX-­>Call Features-­>Conference.
Click on to refresh the conference room status.
•
Click on [ + ] to expand the conference room details.
•
Click on [ -­ ] to hide the conference room details.
•
INTERFACES S TATUS
This section displays interface connection status on the UCM6510 for USB, SD Card, LAN, WAN, LAN
PoE, Heartbeat, Power 1, Power 2, Digital, FXS and FXO ports.
Firmware Version 1.0.2.5

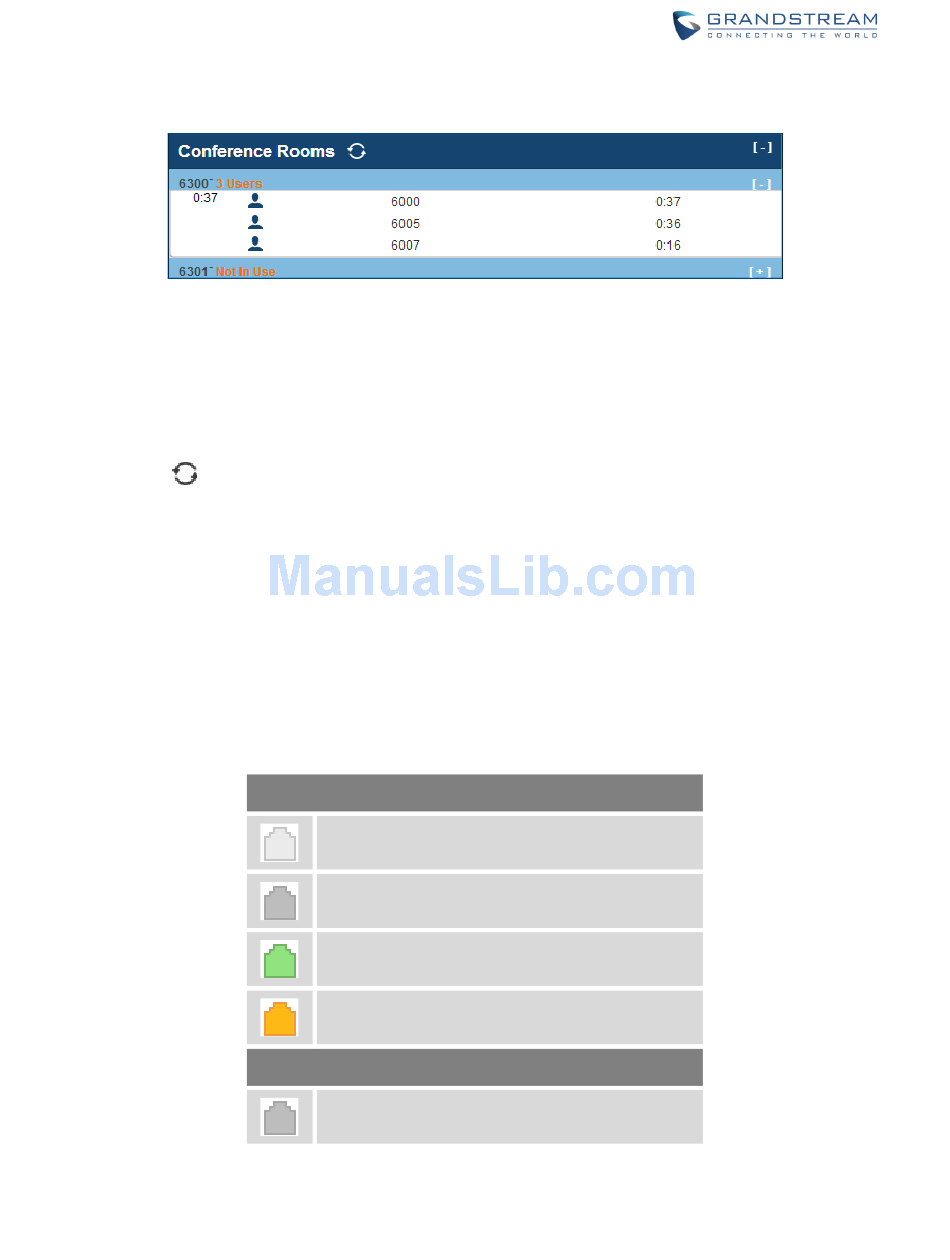

Figure 152: Conference Room Status
Table 100: Interface Status Indicators
FXO
Disconnected
Connected but not configured
Connected and idle
Connected and in use
FXS
Connected but not configured
