Data Trunk; Figure 89: Data Trunk Web Page; Figure 90: Data Trunk Configuration - Grandstream Networks UCM6510 User Manual

The UCM6510 E1/T1/J1 interface also supports data trunk function that allows users to access Internet.
Users can select HDLC, HDLC-­ETH, Cisco and PPP protocol for the data trunk.
To use data trunk,
1. Go to web UI-­>PBX-­>Ports Config-­>Digital Hardware page and click
Designate a channel for data trunk usage in the group setting.
2. Go to web UI-­>PBX-­>Basic/Call Routes-­>Data Trunks page, click on
3. Save the configuration and click on "Apply Changes" for the change to take effect.
4. Once connected, the data trunk will periodically ping and check the status, with status indicator shown
for the data trunk on the web page. The status indicator shows
5. If the user happens to lost connection or experience unstable connection, click on
to help resolve the problem.
6. Users can always click on ON/OFF switch
configured data trunk.
Firmware Version 1.0.2.5
DATA T RUNK

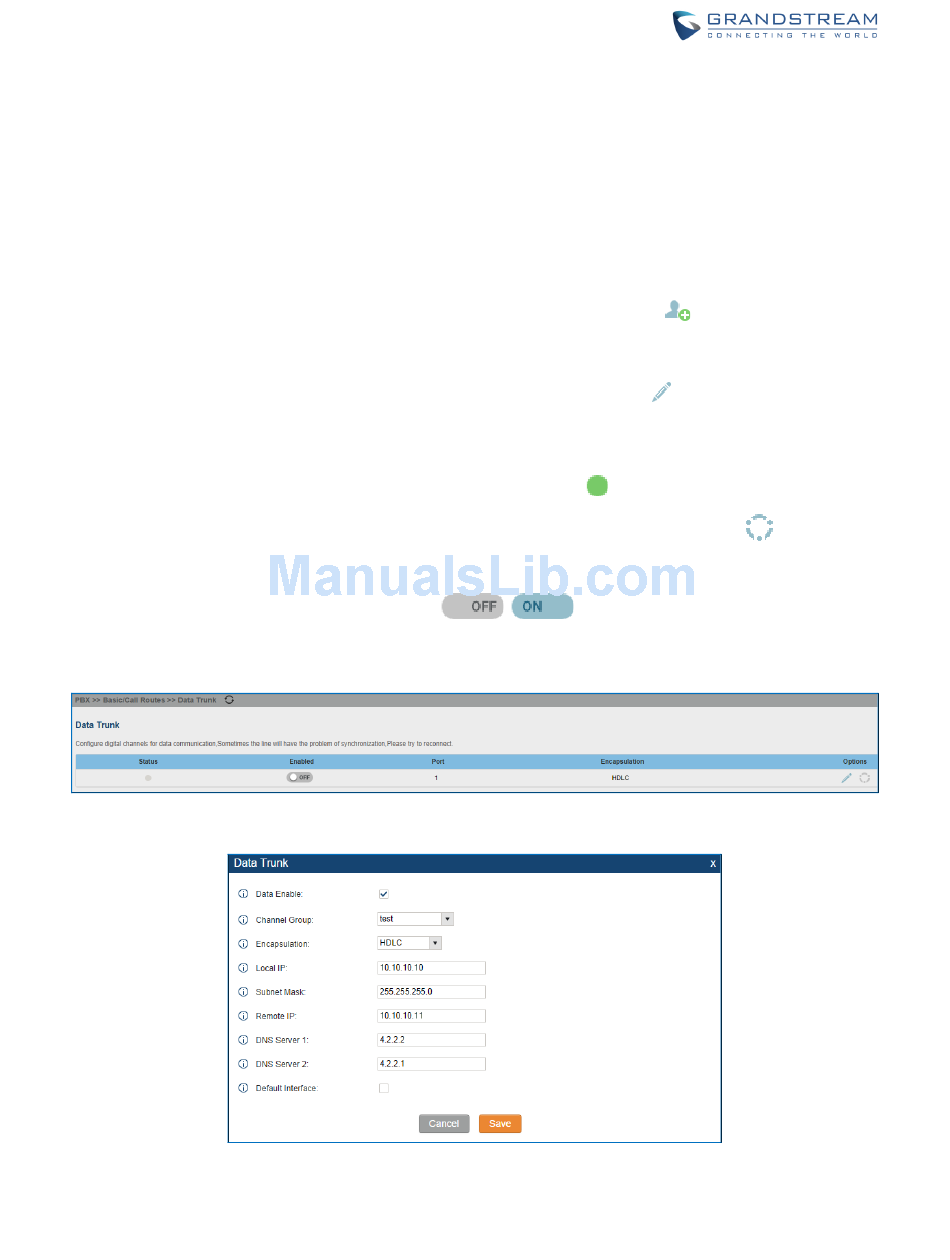

Figure 89: Data Trunk Web Page
Figure 90: Data Trunk Configuration
UCM6510 IP PBX User Manual
to create a new group.
to edit the data trunk.
if connected successfully.
in the web page to enable/disable the
to reconnect
Page 162 of 317
