TROUBLESHOOTING
On the UCM6510, users could capture traces, ping remote host and traceroute remote host for
troubleshooting purpose under web GUI-­>Maintenance-­>Troubleshooting.
ETHERNET C APTURE
The captured trace can be downloaded for analysis. Also the instructions or result will be displayed in the
web GUI output result.
The output result is in .pcap format. Therefore, users could specify the capture filter as used in general
network traffic capture tool (host, src, dst, net, protocol, port, port range) before starting capturing the
trace.
IP P ING
Enter the target host in host name or IP address. Then press "Start" button. The output result will
dynamically display in the window below.
Firmware Version 1.0.2.5

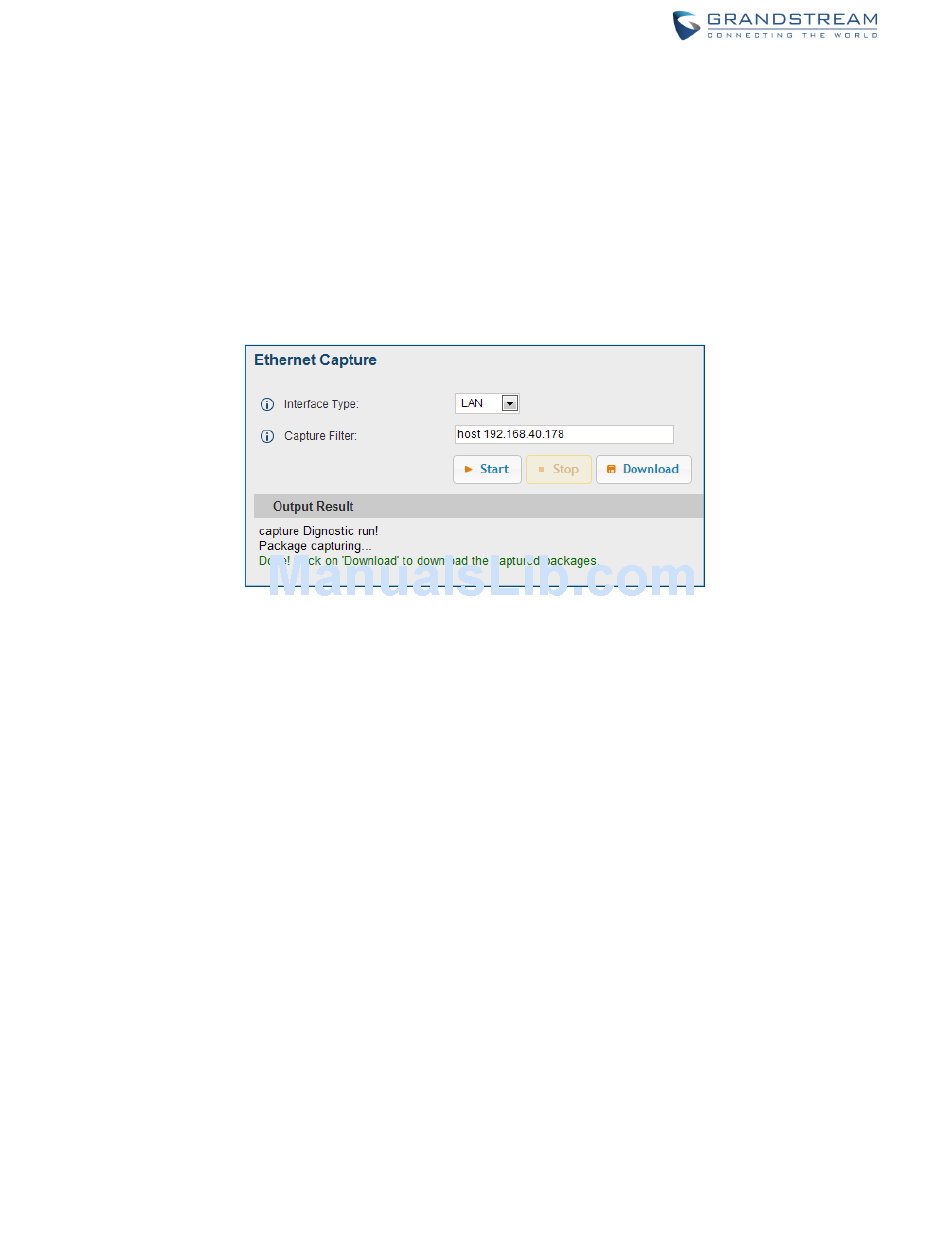

Figure 186: Ethernet Capture
