Configuration Page

The Configuration page is activated by selecting Configuration from the Satellite Modem
page.

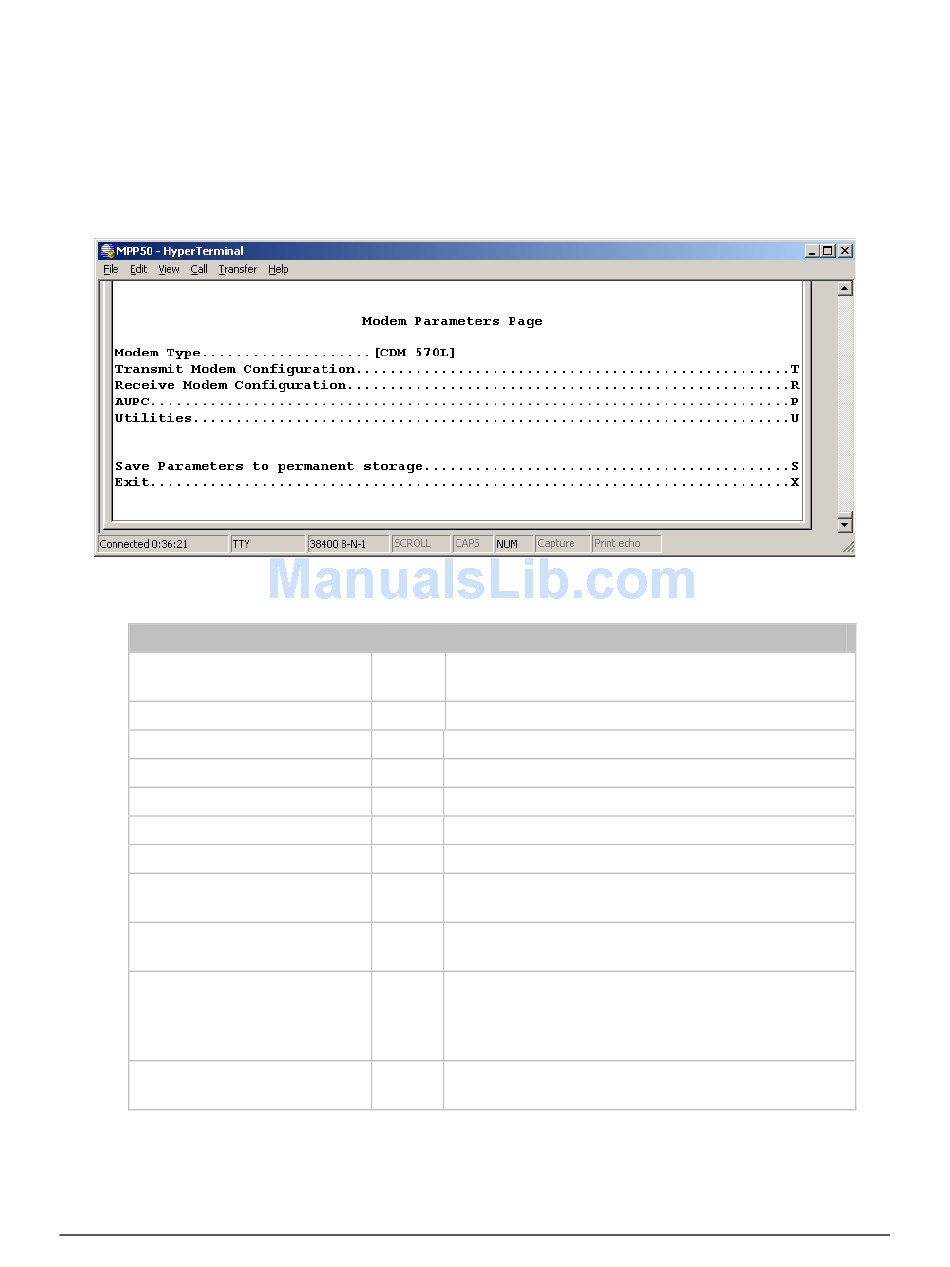

The Modem Parameters page contains the following options/fields:
Menu Options/Fields
Modem Type
Tx Configuration
Rx Configuration
Framing Mode Configuration
Data Interface Configuration
Reference Configuration
Alarm Mask Configuration
BUC Configuration
LNB Configuration
Save Parameters
Exit
Entry Description
Read Modem type – CDM-570/570L .
Only
T Activates Tx Configuration page.
Activates Rx Configuration page.
R
F Activates Framing Mode Configuration page.
I Activates Data Interface Configuration page.
E Activates Reference Configuration page.
A Activates Alarm Mask Configuration page.
B Activates Block Up Converter (BUC) Configuration
page.
Activates Low Noise Block Converter (LNB)
N
Configuration page.
This option allows a user to save the current
S
configuration to permanent storage. This
configuration will be restored on each successive
power cycle.
X This option allows a user to exit the current menu
and return to its parent menu.
