Comtech EF Data CDM-570L Installation And Operation Manual page 330

CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation

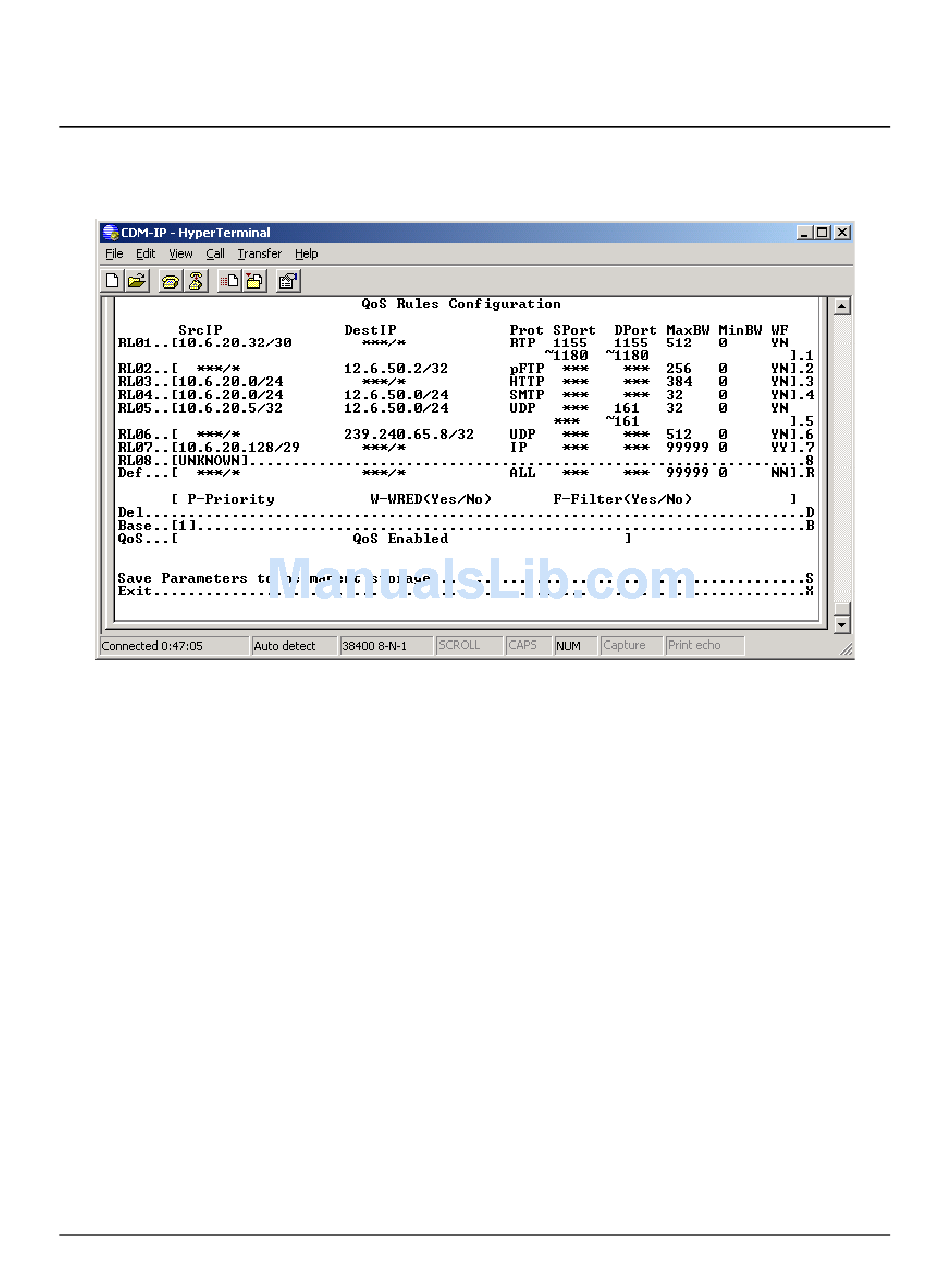

17.2.3.2 16.2.4.1 QoS Configuration Page – Min/Max Mode
The QoS Rules Configuration page is activated from the QoS Configuration page.
In Minimum/Maximum Mode, the QoS Rules Configuration page contains the same
options/fields as in Max/Pri Mode with the following exceptions:
Priority is not assigned.
A Minimum Bandwidth can be assigned, or select enter to assign no Min Bandwidth
(displayed as '0').
See the Quality of Service section for a more detailed description of this QoS option.
17–30
Revision 4
MN/CDM570L.IOM
