CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation
17.2.2.2 Satellite/HDLC Interface Page

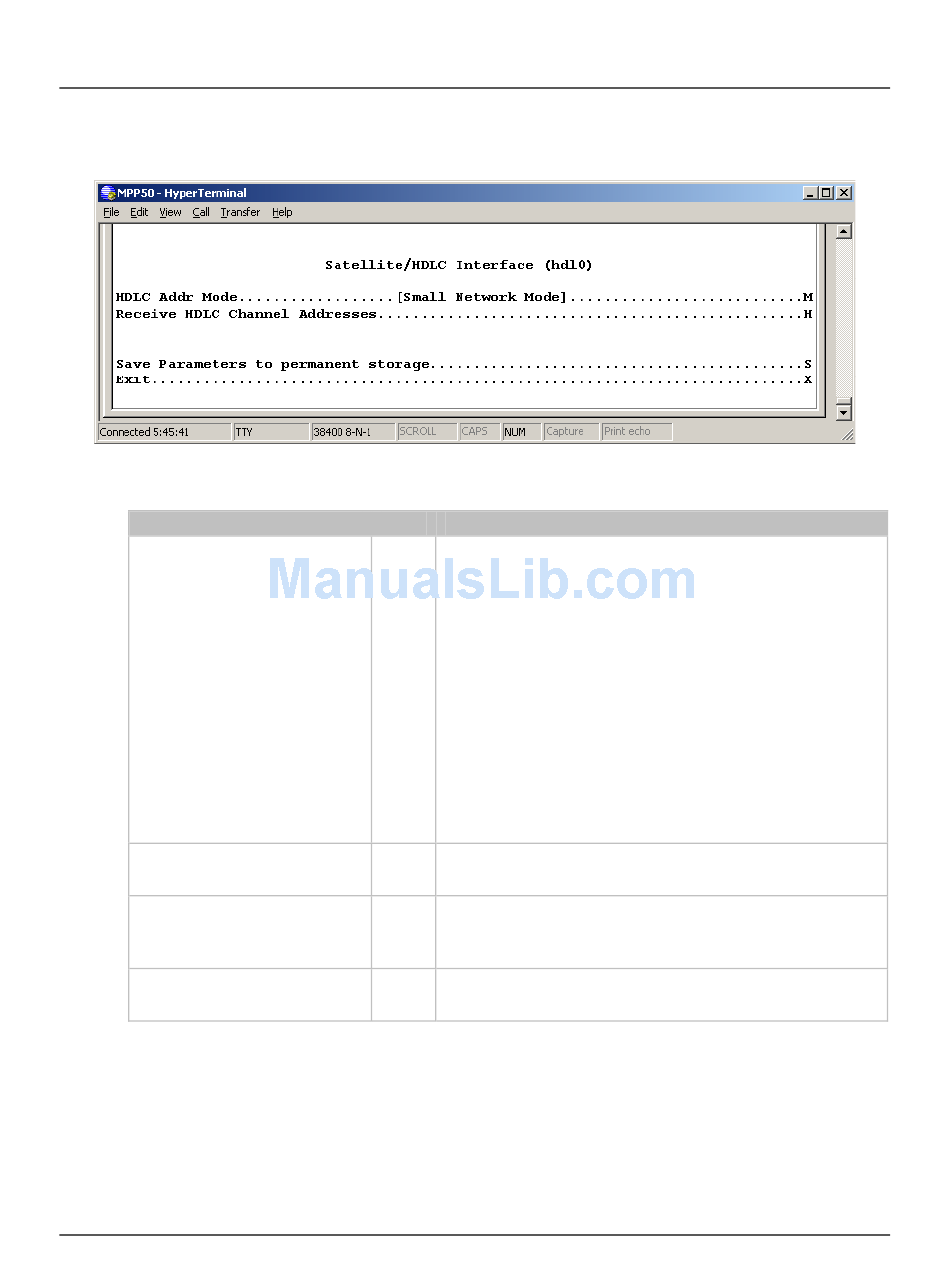

The Satellite/HDLC Interface) page is activated from the Interface Configuration page.
The Satellite/HDLC Interface page contains the following options/fields:
Menu Options/Fields
HDLC Addr Mode
Receive HDLC Channel
Addresses
Save Parameters
Exit
Entry
Read The HDLC Address mode is configured via the
Working mode which is found on the Administration
Only
page.
Point-To-Point Mode – In this mode of operation, no
HDLC address is transmitted over the satellite link.
The restrictions on using this mode are that it can only
be used for pure Point-to-Point configurations.
Small Network Mode (up to 254 addresses) - In this
mode of operation a single byte HDLC address will be
transmitted over the satellite link (0x1 – 0xFE).
Large Network Mode (up to 32766 addresses) - In this
mode of operation a two byte HDLC address will be
transmitted over the satellite link (0x1 – 0xFFFE).
Activates Receiver HDLC Addresses page.
H
S This option allows a user to save the current
configuration to permanent storage. This configuration
will be restored on each successive power cycle.
X This option allows a user to exit the current menu and
return to its parent menu.
