CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation
17.2.5.2 ARP Table Utilities Page
The ARP Table Utilities page is activated from the Protocol page.

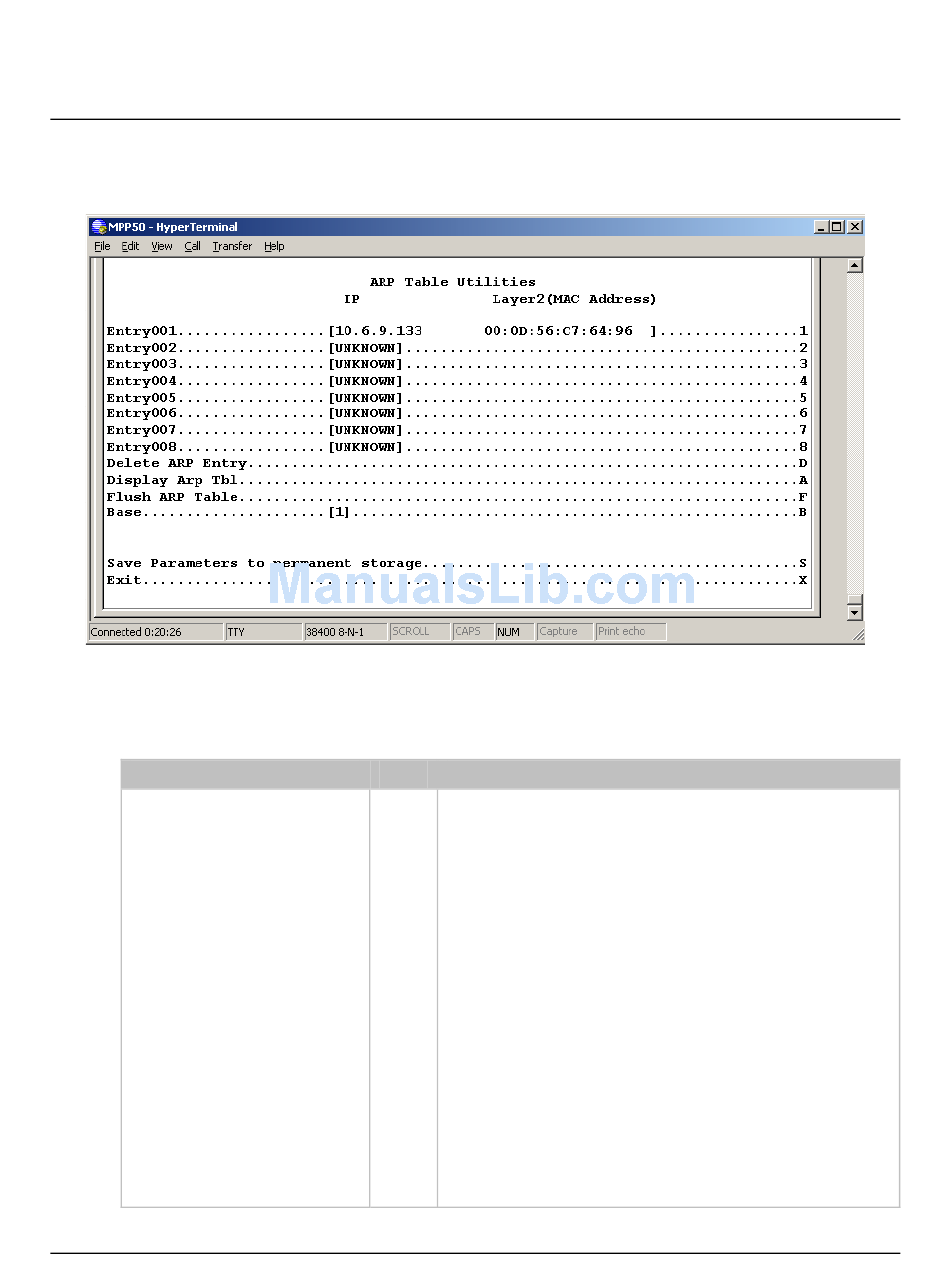

The ARP Table Utilities page allows the user to view and edit the ARP table defined by
the IP Module. It allows up to 256 static IP->MAC ARP entries.
The ARP Table Utilities page contains the following options/fields:
Menu Options/Fields
Entry001 - 008
Entry
The user can define up to 256 static ARP definitions on
1 - 8
IP M
the odule. This table allows the user to
operate/view up to 8 of these definitions. An ARP
definition is defined as:
1. Unicast IP Address
This IP Address is used as a lookup into the ARP table
IP M
when the
Address.
Restrictions:
IP Address must be on the same subnet as the
Ethernet Interface.
IP Address must be a valid Unicast address (Not
Multicast, broadcast, etc.)
2. MAC Address
The MAC Address defines the hardware destination
MAC Address that is used when an Ethernet packet
is destined for an IP machine from the
17–41
Description
odule needs to resolve a MAC or HDLC
Revision 4
MN/CDM570L.IOM
IP M
odule.
