CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation
17.2.8.1 Transmit Modem Configuration Page

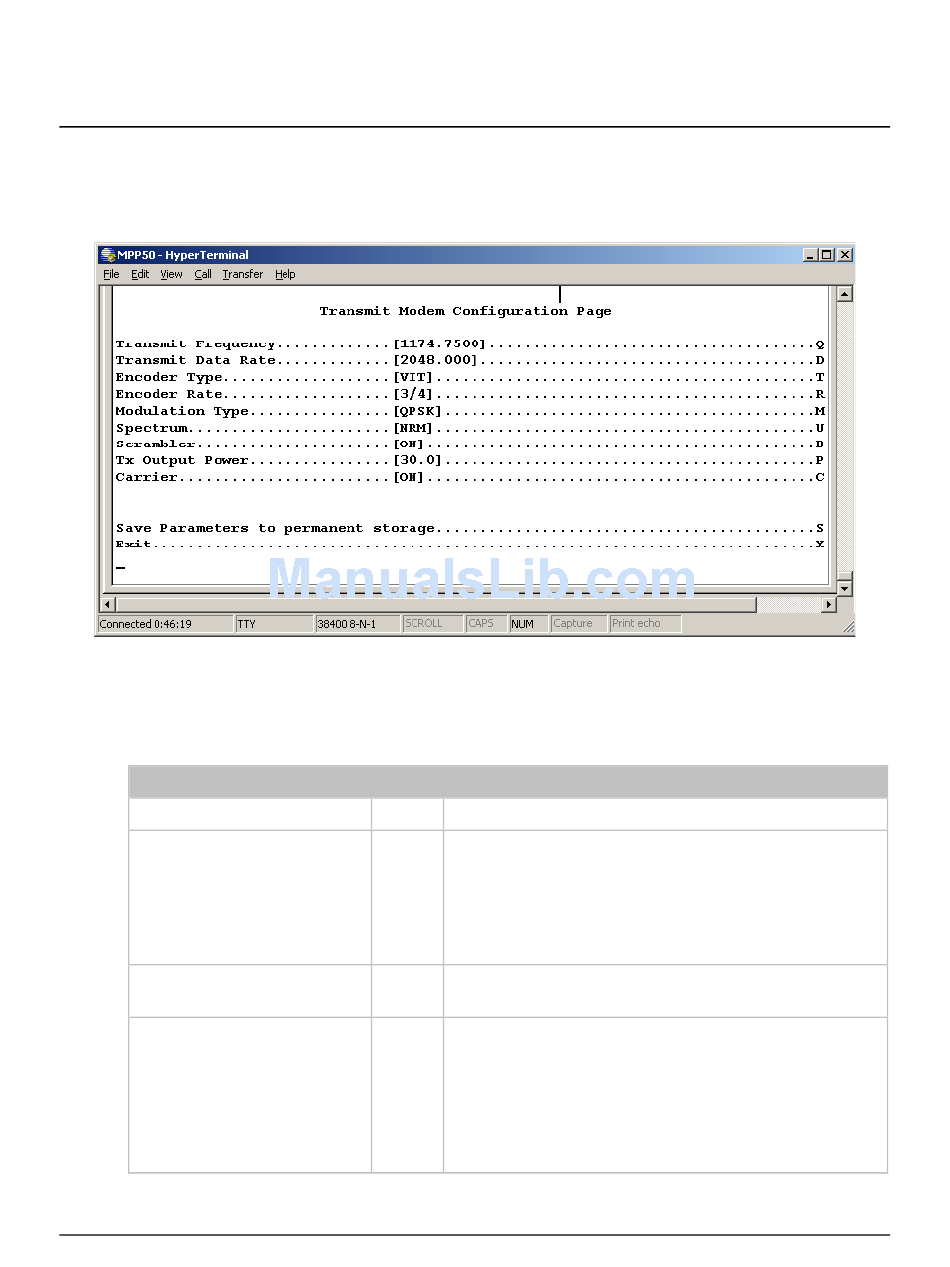

The Tx Configuration page is activated from the Configuration page.
The Transmit Modem Configuration page contains the following options/fields:
Note: Turbo FEC selections only displayed if Turbo card is installed.
Menu Options/Fields
Tx Frequency
Tx Data Rate
Tx Symbol Rate
Tx Encoder Type
Entry Description
Q Valid ranges are from 950 to 1950 MHz
D The rate at which the Modem will send traffic over the
Satellite Interface.
Valid ranges are from 2.4 to 9980 kbps.
Up to 5000 kbps and 9980kbps are options that must
be purchased.
Read Corresponding Symbol Rate for the currently selected
Only data rate, encoder, rate and modulation scheme.
T 1 - VIT
2 - TURBO
3 – VIT+RS
4 – TCM-RS
5 – LDPC
17–46
