CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation
17.2.8.2 Receive Modem Configuration Page
The Rx Configuration page is activated from the Configuration page.

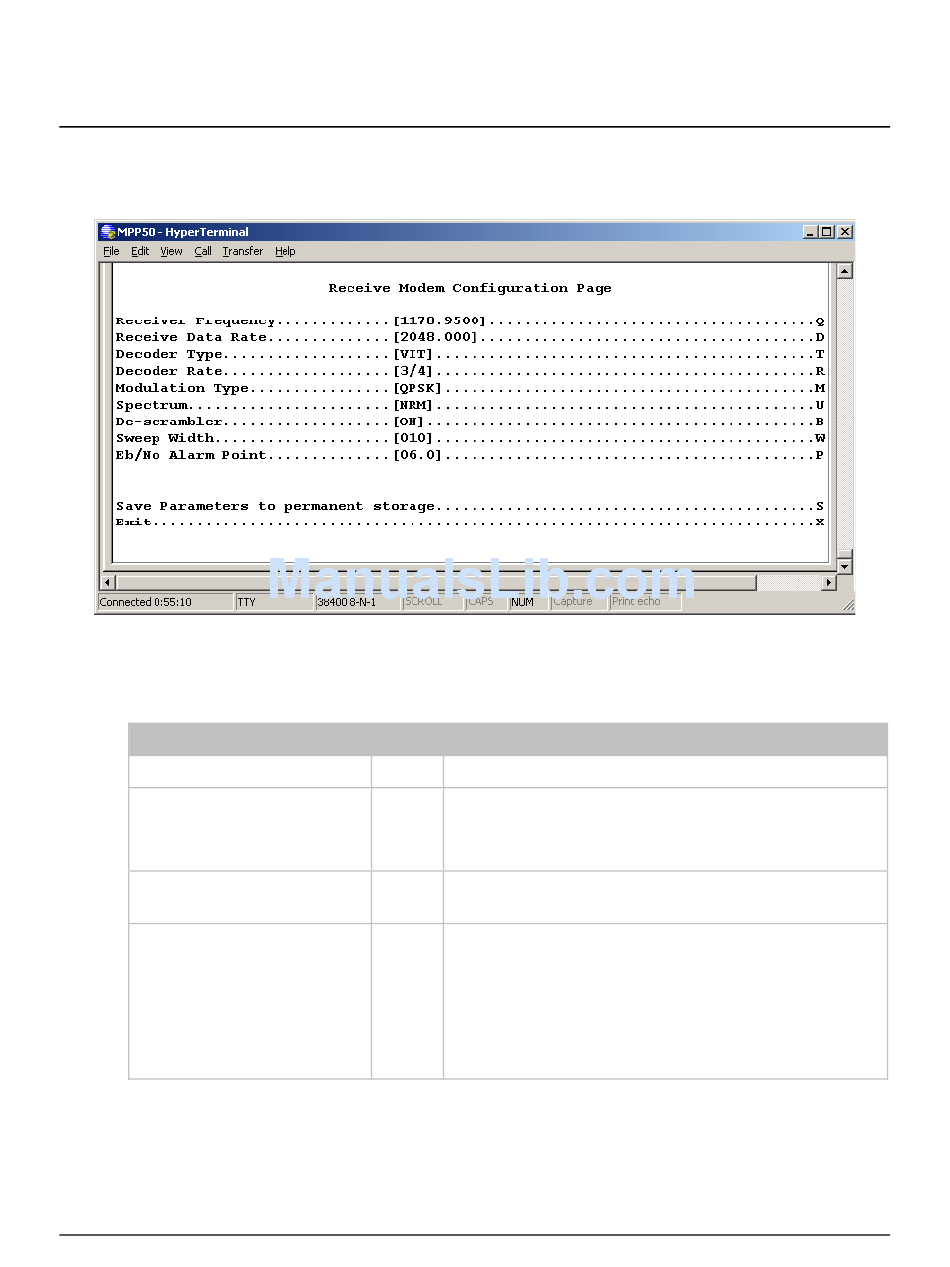

The Receive Modem Configuration Page contains the following options/fields:
Note: Turbo FEC selections only displayed if Turbo card is installed
Menu Options/Fields
Rx Frequency
Rx Data Rate
Rx Symbol Rate
Rx FEC
Entry Description
Q Valid ranges are from 950 to 1950 MHz.
D Valid ranges are from 2.4 to 9980 kbps.
Up to 5000 kbps and 9980kbps are options that must
be purchased.
Read Corresponding Symbol Rate for the currently selected
Only data rate, encoder, rate and modulation scheme.
T 1 - VIT
2 - TURBO
3 – VIT+RS
4 – TCM-RS
5 – LDPC
17–48
