Comtech EF Data CDM-570L Installation And Operation Manual page 74

OVERALL SHIELD
TX CLOCK A 24
TX CLOCK B 11
TX DATA A 2
TX DATA B 14
RX CLOCK A 17
RX CLOCK B 9
RX DATA A 3
RX DATA B 16
INT TX CLK A 15
INT TX CLK B 12
RS A 4
CS A 5
RCVR READY A 8
SIG GROUND 7
SHIELD
1
DM A 6
NOTES:
USE METAL BACKSHELLS
FOR D TYPE CONNECTORS
ENSURE SHIELDING FOIL
AND/OR BRAID IS BONDED
TO METAL BACKSHELL FOR
EMC SHIELDING
Filename: T_ERRATA
LENGTH = TBD
(7 TWISTED PAIRS PLUS OVERALL FOIL/BRAID
SCREEN BELDEN 8107 OR 8307, OR NEAR
EQUIVALENT)

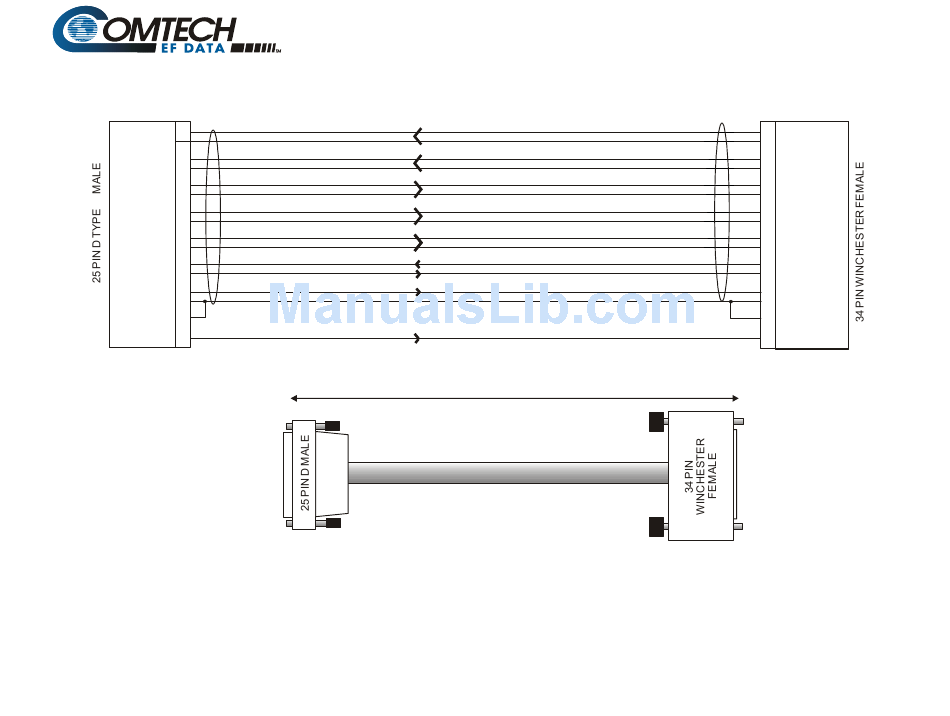

CDM-570L EIA530 TO V.35 DCE CONVERSION CABLE
2
LINK
TOGETHER
IN SHELL
U TX CLOCK A
TWISTED PAIR
W TX CLOCK B
P TX DATA A
TWISTED PAIR
S TX DATA B
V RX CLOCK A
TWISTED PAIR
X RX CLOCK B
R RX DATA A
TWISTED PAIR
T RX DATA B
Y INT TX CLK A
TWISTED PAIR
AA INT TX CLK B
C RTS
D CTS
RLSD
F
B SIG GROUND
A
SHIELD
E OSR
