CDM-570/570L Satellite Modem with Optional IP Module
IP Module - CLI and Telnet Operation
17.2.2.3 Receiver HDLC Addresses Page

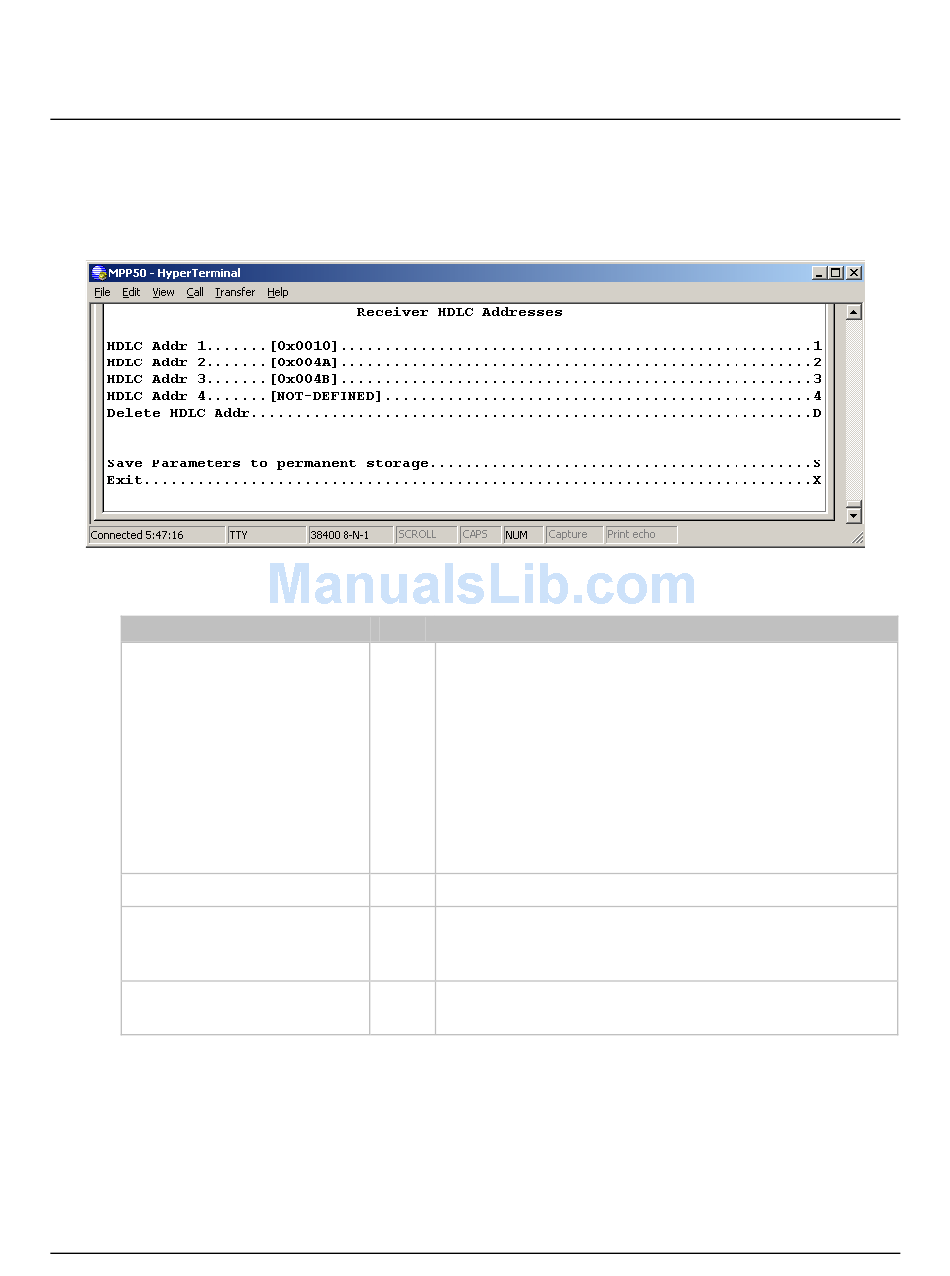

The Receiver HDLC Addresses page is activated from the Satellite/HDLC Interface page.
This page allows the user to define up to four HDLC addresses that can carry user
information on the Satellite Interface.
The Satellite/HDLC Interface page contains the following options/fields:
Menu Options/Fields
HDLC Addr 1 - 4
Delete HDLC Addr
Save Parameters
Exit
Entry
HDLC address in hex <1 - FFFE, enter = 0001>
1 - 4
Note: HDLC addresses are not used in Point-To-
Point Mode.
Small Network Mode (up to 254 addresses) - The user
is limited to valid addresses between the values of
0x01 and 0xFE.
Large Network Mode (up to 32766 addresses) - The
user is limited to valid addresses between the values of
0x0001 and 0x7FFF.
D Enter the HDLC entry to delete <1...4>
S This option allows a user to save the current
configuration to permanent storage. This configuration
will be restored on each successive power cycle.
X This option allows a user to exit the current menu and
return to its parent menu.
17–24
MN/CDM570L.IOM
Description
Revision 4
