Installing the Front Panel I/O Board

1. Observe the safety precautions, warnings, and cautions described in
2. Set the front panel I/O board in place over the hooks. See letters "A" and "B" in Figure 131.
3. Slide the front panel I/O board forward until seated over the hooks. See letter "C" in the figure.
4. Tighten the captive screw. See letter "D" in the figure.
5. Reconnect all cables you disconnected when you removed the front panel I/O board. For
connection locations, see Figure 85.
6. Install the processor air baffle. For instructions, see
7. Install the top cover. For instructions, see
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
D
C
A

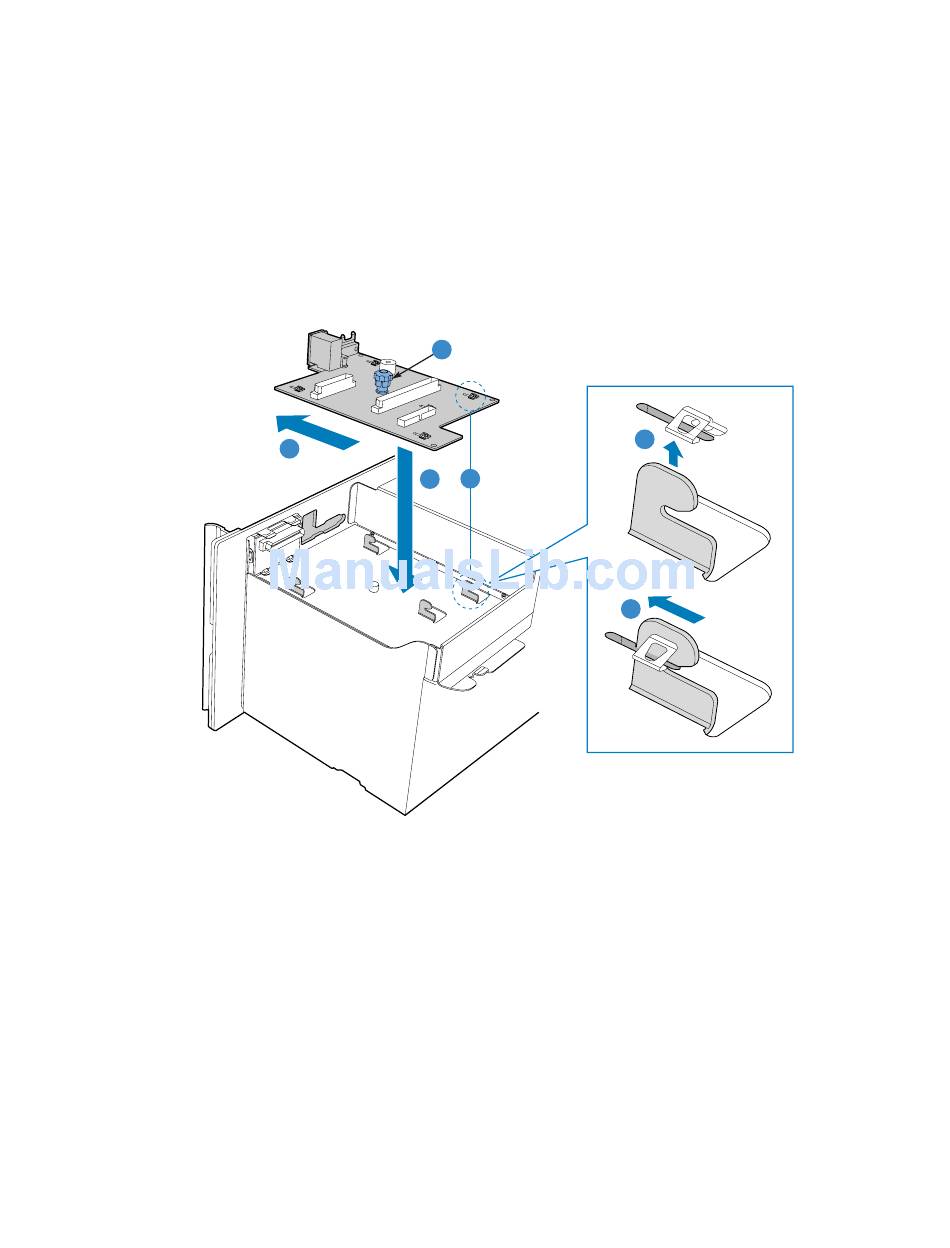

Figure 131. Installing the Front Panel I/O Board

"Installing the Processor Air
"Installing the Top
Cover".
B
B
C
"Safety
Information".
Baffle".
TP01444
223
