Platform Description

Platform Rear

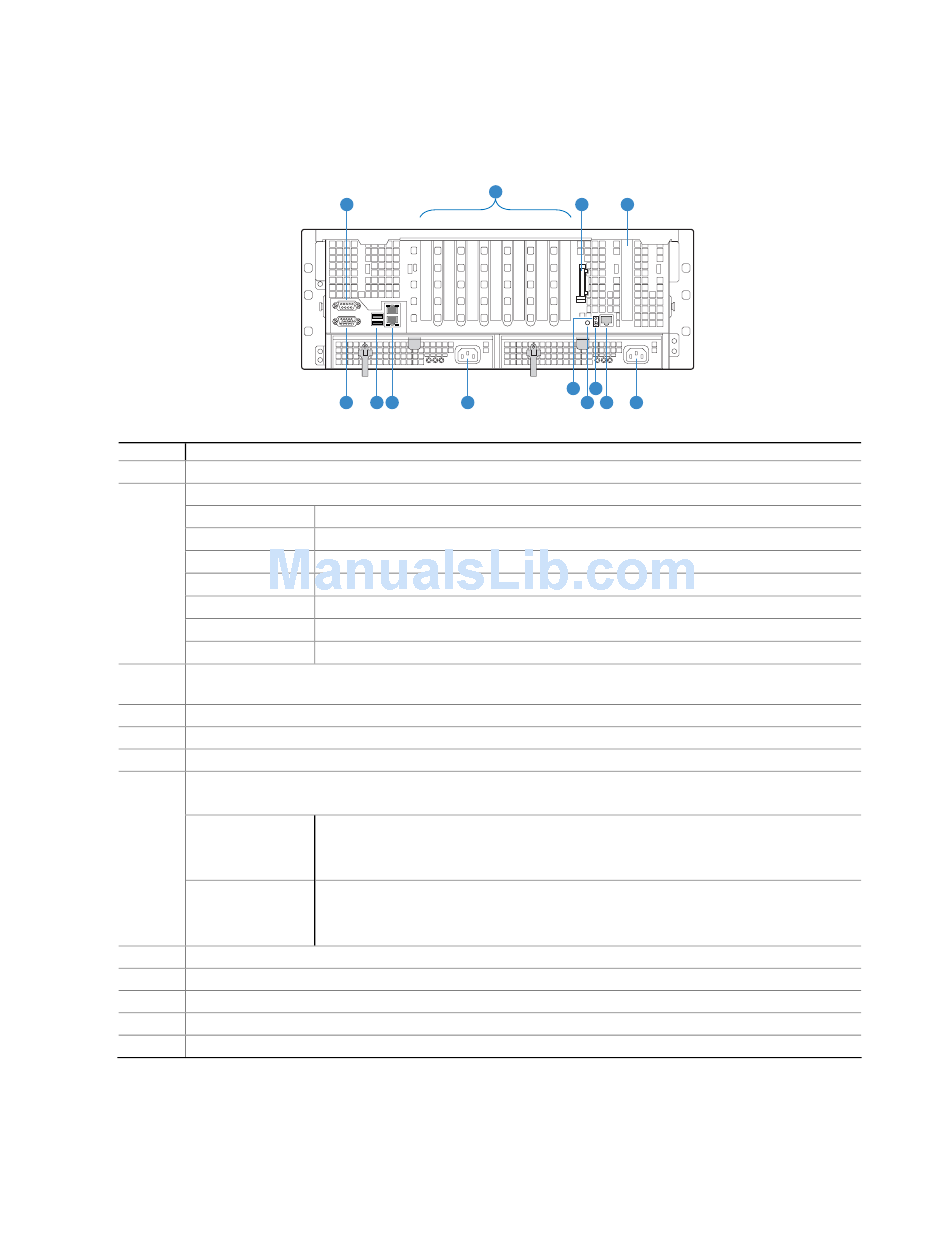

Figure 5 shows the features on the chassis back panel.
Item
A Serial port connector. Emergency Management Port access is provided through the serial port.
B PCI Slots
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
C External SCSI connector. The external SCSI bus supports both LVDS and SE signals through the
external SCSI connector
D Fibre Channel Module Slot
E Video port, standard VGA compatible, 15-pin connector
F Two USB 2.0 ports
G Two LAN ports, RJ45 connector (LAN1 on top, LAN2 on bottom)
LAN port LEDs:
Status LED
(green)
Speed LED
(green/amber
dual color)
H1, H2 AC input power connectors
I System ID button
J System ID LED (blue)
K DC jack (not used)
L Server Management RJ-45 connector (GCM)
36
B
A
1 2 3 4
E F G H1
Description
PCI Express* x8 (Hot-plug)
PCI-X* 133MHz, 64-bit (Hot-plug)
PCI Express* x4 (Hot-plug)
PCI Express* x4 (Hot-plug)
PCI Express* x4 (Hot-plug)
PCI-X* 100MHz, 64-bit (not Hot-plug)
PCI-X* 100MHz, 64-bit (not Hot-plug)
On – ethernet link is detected
Off – no ethernet connection
Blinking – ethernet link is active
Off – 10 Mbps
Green On – 100 Mbps
Amber On – 1000 Mbps

Figure 5. Rear Platform Features

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
C D
5 6 7
I K
J L H2
TP01401
