Removable Media Drive Bay Support

The DVD-ROM/CD-ROM drive is installed in a sheetmetal carrier and is inserted from the front of
the chassis. The tape back-up drive is also installed from the front of the chassis. You must power
down the platform and remove the top cover to remove or install these devices.
5 ¼-inch Half-height Drive Bay
The system supports a single 5 ¼" half height device mounted in the front of the chassis. A SCSI
tape backup device could be used and cabled to the SCSI Channel B on the main board.

Platform Board Set

The board set consists of the following boards:
One main board
One to four memory boards
In addition, the server contains the following system boards:
Front panel board
SCSI backplane board
Power distribution board
SATA-to-IDE adapter board
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide

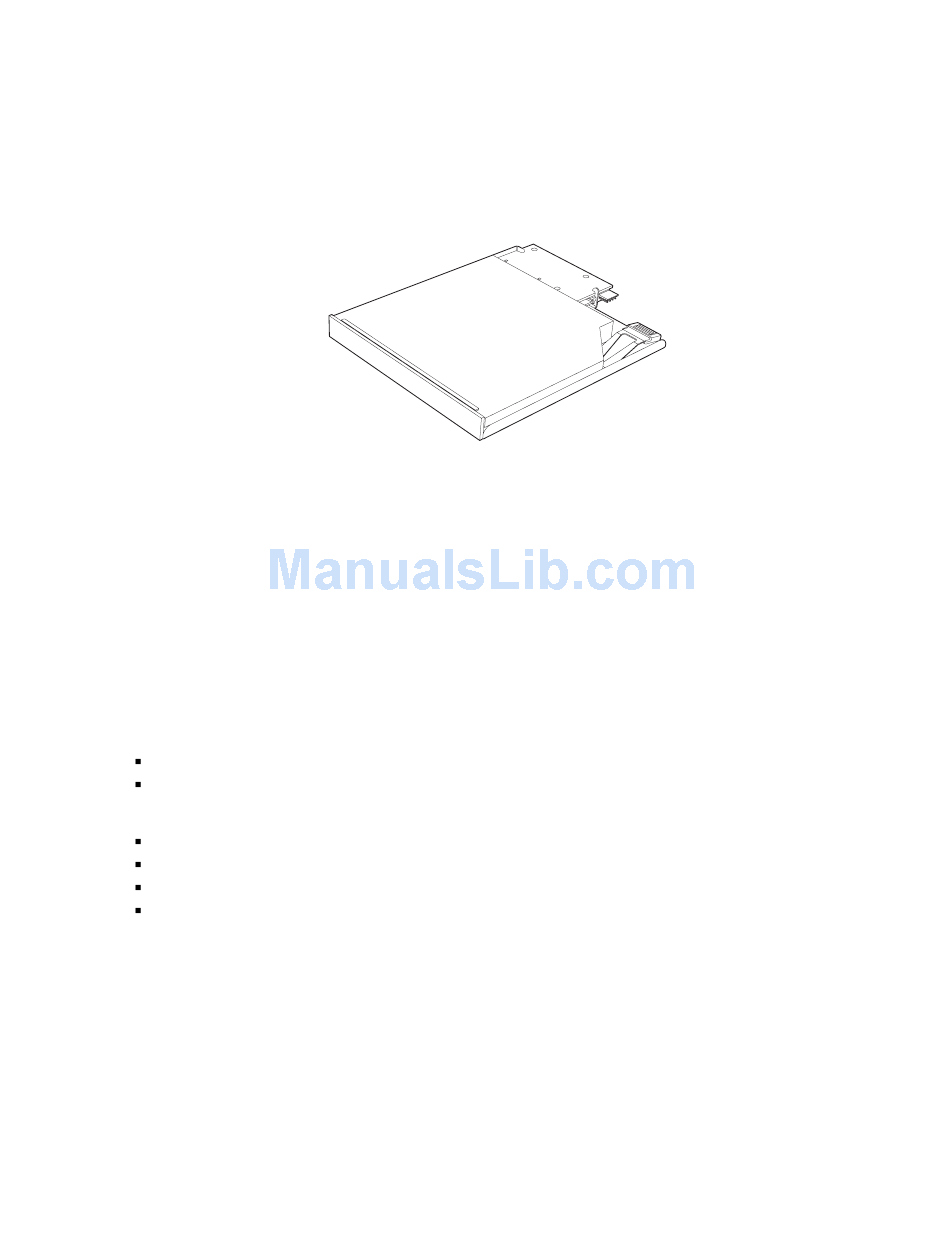

Figure 9. DVD/CD-ROM Drive Carrier

TP01511
45
