Universal Serial Bus (USB) Interface

The main board provides a double-stacked USB port at the rear panel and one vertical USB port
located in the middle of the main board. The front panel I/O board provides three stacked USB port
connectors via a USB hub controller. These built-in USB ports permit the direct connection of six
USB peripherals without an external hub. If more devices are required, an external hub can be
connected to any of the built-in ports.
The pinout for the dual USB connector is listed in Table 16. The pinout for the triple USB
connector on the front panel I/O board is listed in Section 8.

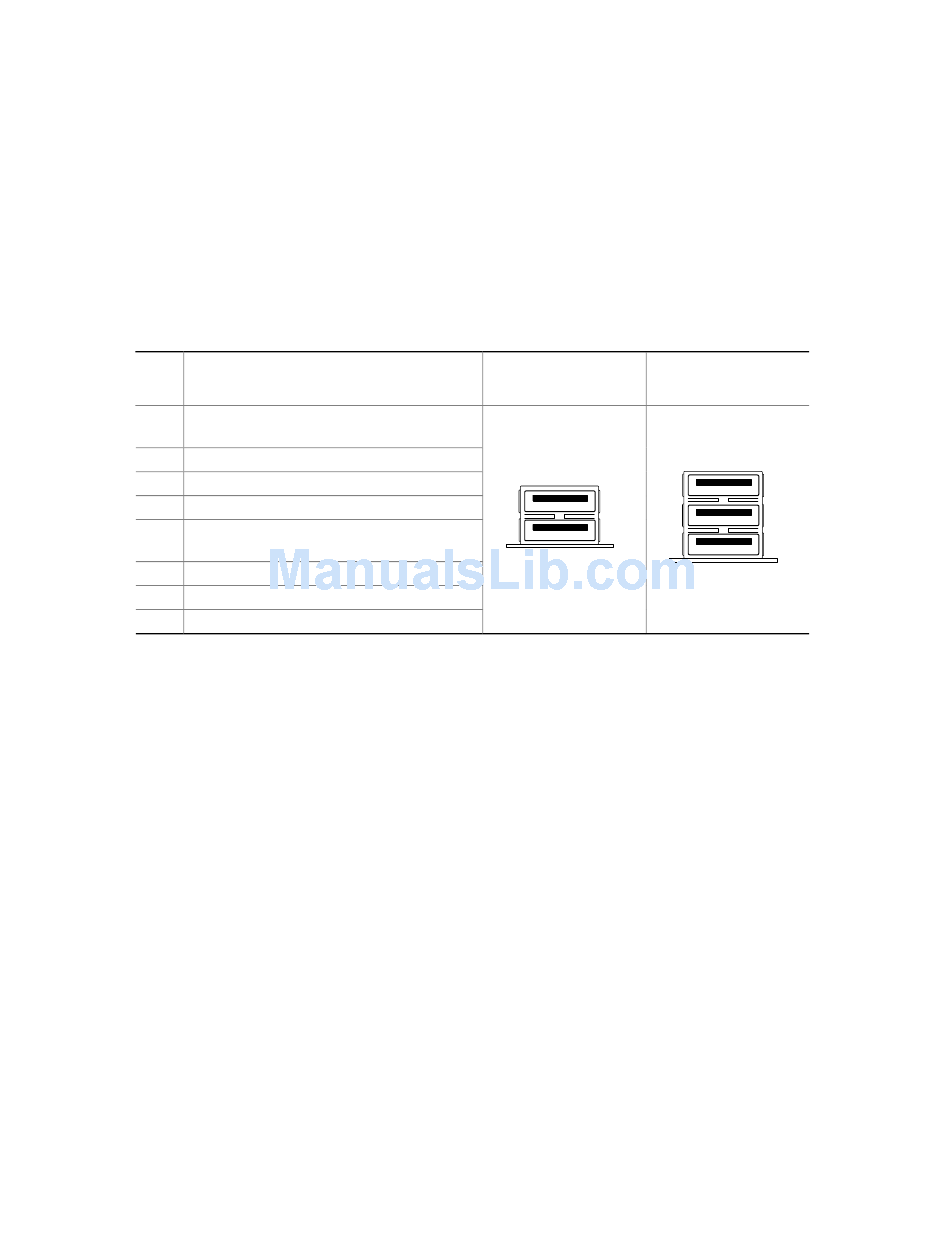

Table 16. Dual USB Connector Pinout
Pin Signal
A1 Fused Voltage Controlled Current (VCC)
(+5 V with over-current monitoring)
A2 USBPxM (differential data line)
A3 USBPxP (differential data line)
A4 GND (ground)
B1 Fused VCC (+5 V with over-current
monitoring)
B2 USBPxM (differential data line)
B3 USBPxP (differential data line)
B4 GND (ground)
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
Dual Stacked USB Triple Stacked USB
Connector on Rear Connector on Front
Panel Panel
1
2
1
2
3
237
