9 Servicing the Peripheral Area Components

Installing the External SCSI Cable Assembly

The optional external SCSI cable assembly allows external SCSI components to be connected to the
chassis.
To install the external SCSI cable assembly:
1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see
5. Remove the memory boards from Slots C and D. For instructions, see
Memory Board".
6. If installed, remove the Fibre Channel Module. For instructions, see
Channel Module".
7. Connect the end of the SCSI cable labeled either "main board" or "Baseboard" into the Channel
B SCSI connector.
8. Route the remaining length of cable along the chassis wall and through the air dam to the rear
of the chassis.
9. Bend and route the end of the cable beneath the two memory board and Fibre Channel Module
locations.

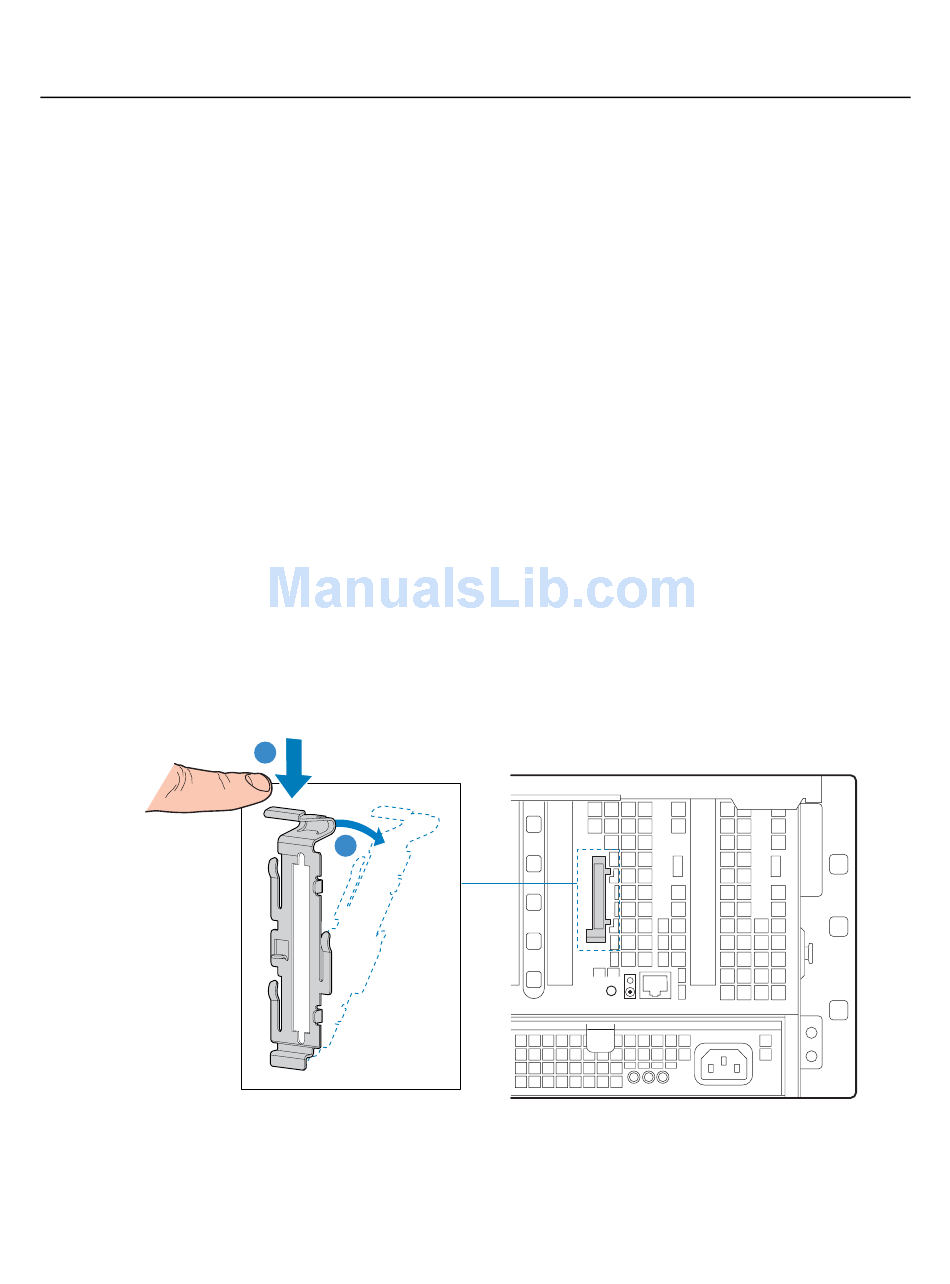

10. If installed, remove the filler bracket by pushing down on the latch at the top of it and pulling
the panel from the server. See letter "A" in Figure 111.
A
B

Figure 111. Removing External SCSI Filler Panel

"Removing the Top Cover".
"Safety Information".
"Cold Removal of
"Removing the Fibre
TP01458
