Service Technicians Guide

Installing a Power Supply

1. Remove the new power supply from the protective packaging and place it on a clean
ESD-protected work surface.
2. Record the model and serial numbers of the power supply in your
3. Remove the filler panel from the back of the chassis, if installed.
4. Position the power supply as shown in Figure 69, with the handle at the right side of the power
supply.
5. Slide the new power supply partway into the power supply bay. See letter "A" in Figure 69.
6. With the handle in the open position, push the power supply into the power supply fully into
the bay until it stops.
7. Rotate the handle to the closed position. See letter "B" in the figure.
8. Tighten the thumbscrew to secure the power supply. See letter "C" in the figure.
9. Plug the power cord into the AC receptacle on the power supply.
10. Use the LEDs on the power supply to confirm the power supply is functioning.
144
C
B

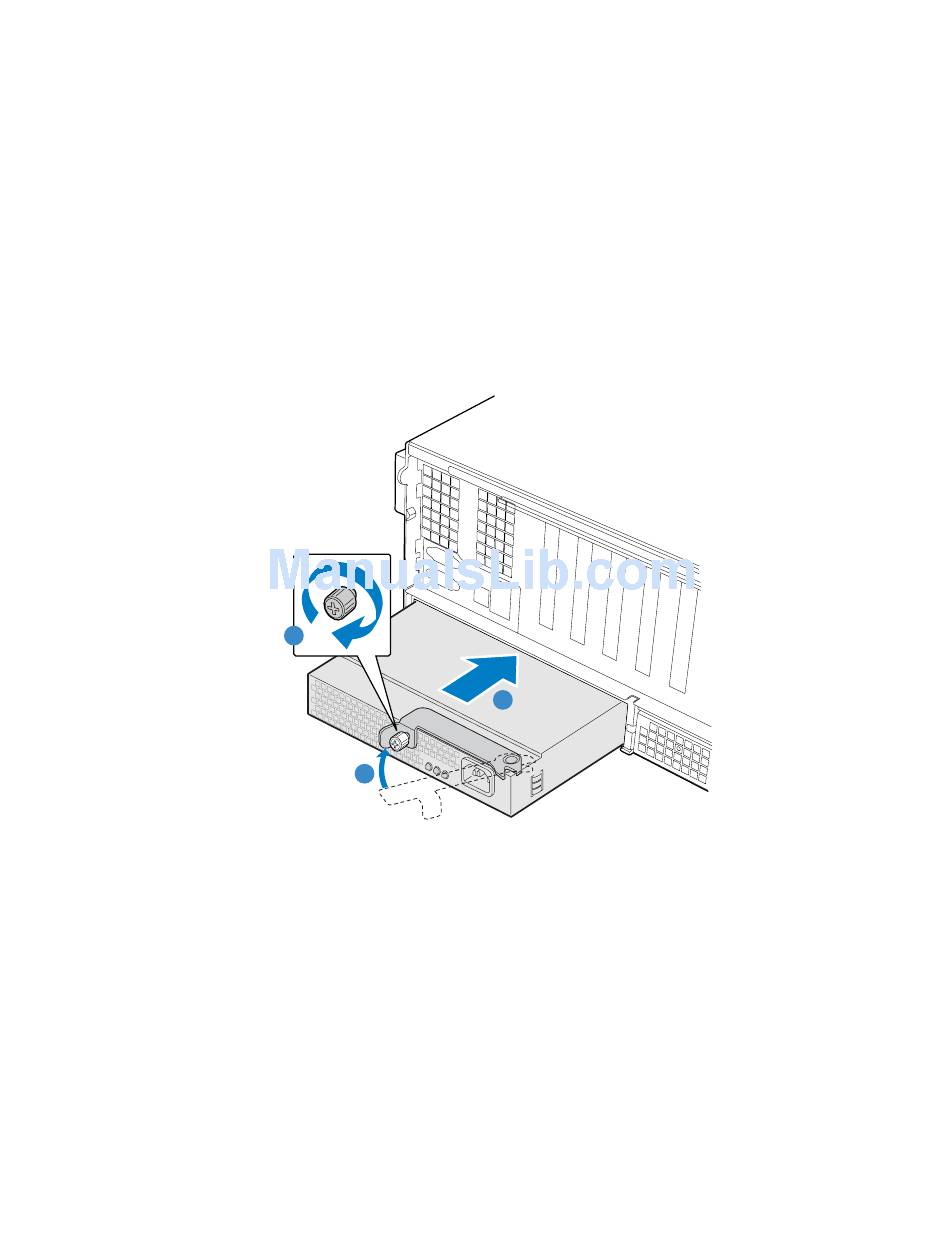

Figure 69. Installing a Power Supply

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Equipment
A
TP01452
Log".
