Working Inside the System

Installing the Top Cover

To install the top cover, follow these instructions:
1. Observe the safety precautions, warnings, and cautions described in
2. Place the top cover on the chassis so that the tabs on the cover align with the slots on the
chassis.
3. Slide the top cover towards the front of the chassis until it is fully closed. See letter "A" in
Figure 87.
4. Tighten the captive screws on the faceplate of the chassis. See letter "B" in the figure.
B
170
A

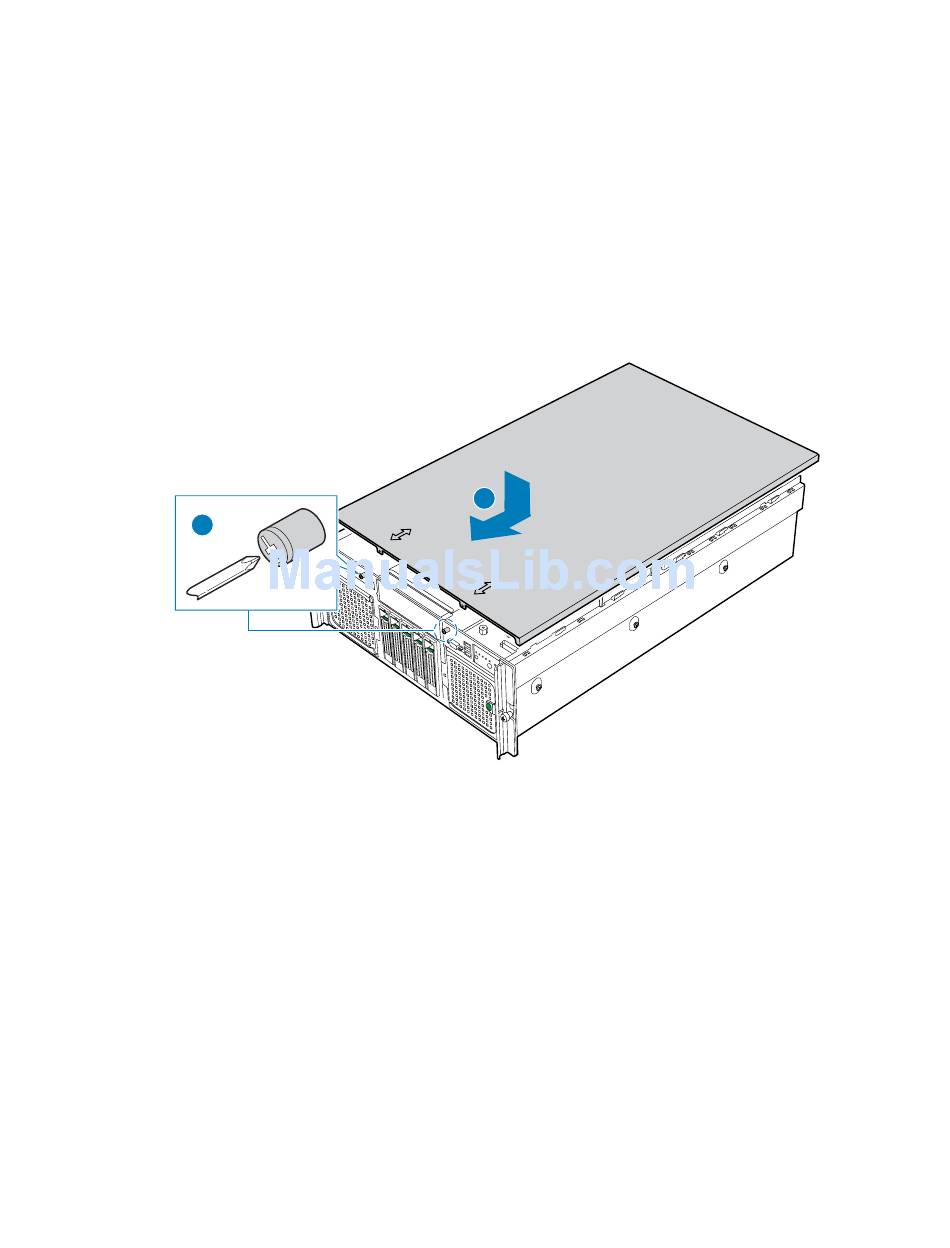

Figure 87. Installing the Top Cover

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Safety Information".
TP01404
