User Accessible Interconnects

Serial Port

The main board provides a rear panel DB9 serial port.
The COM serial port can be used either as an EMP or as a serial port. As an EMP, the connector is
used by the server management RS-232 connection to the Intel® Management Module. This
provides the ability to perform emergency management through an external modem. The RS-232
connection can be monitored by the BMC when the system is in a powered down (standby) state.

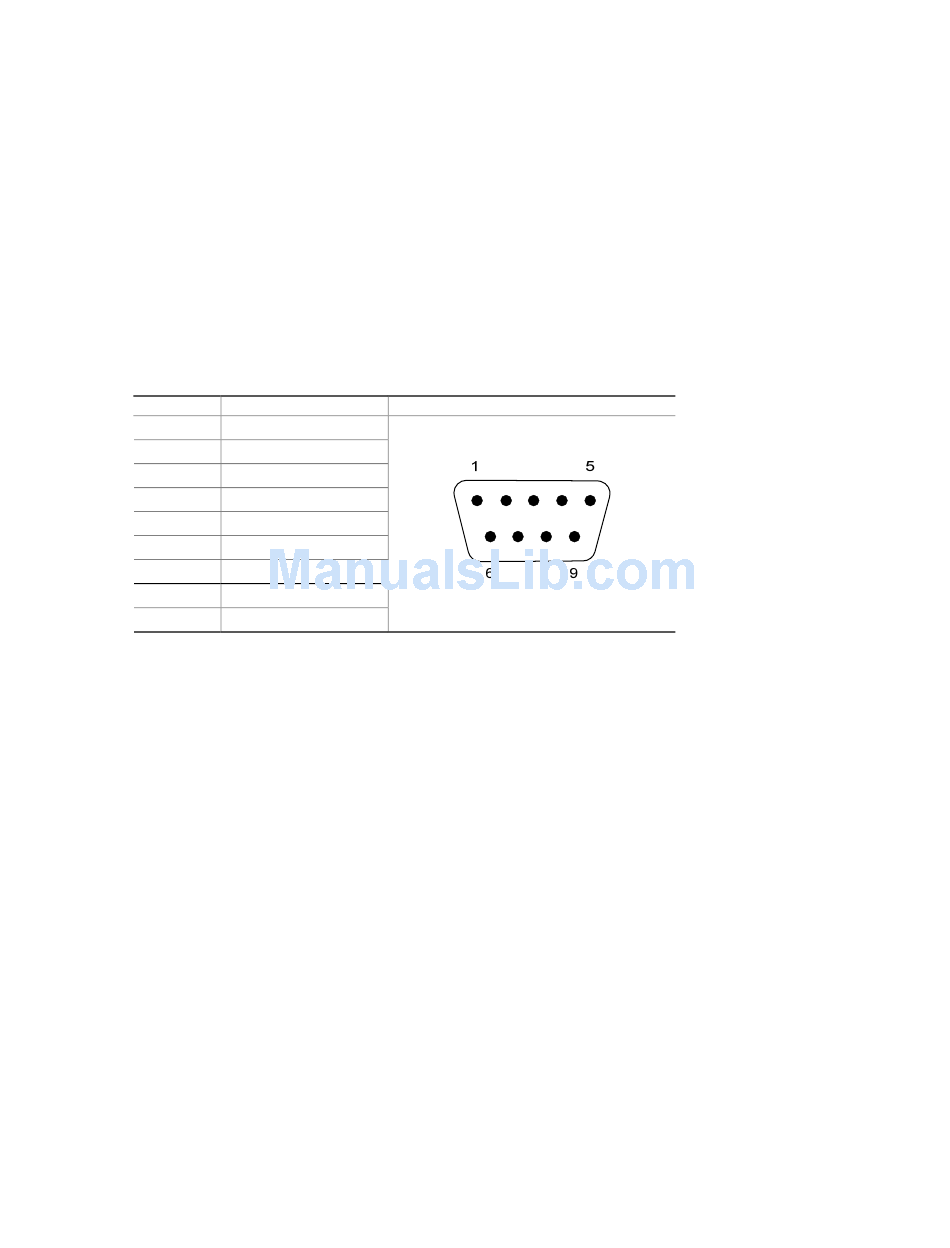

Table 14. COM1/EMP Serial Connector Pin-out
Pin Signal Name
1 RP_RTS_CONN_N
2 RP_RXD_CONN
3 RP_TXD_CONN
4 RP_DTR_CONN_N
5 Ground
6 RP_DSR_CONN_N
7 RP_RTS_CONN_N
8 RP_CTS_CONN_N
9 RP_RI_CONN_N
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
COM1/EMP Serial Connector
