Servicing the Peripheral Area Components
7. Remove the screws that attach the slide rails to the filler panel.
8. Attach the slide rails to the device using the screws removed from the filler panel.
9. Pull the Y-power cable through the 5 ¼ peripheral opening.
10. Attach the Y-cable to the 5 ¼ peripheral.
11. Slide the 5 ¼ peripheral device into the server until it clicks into place. See Figure 117.
12. Install the top cover. For instructions, see
Removing a 5 ¼" Peripheral
1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see
5. Push the tabs at each side of the carrier filler panel. See letter "A" in Figure 116.
6. Hold the tabs in while pulling the carrier filler panel from the bay. See letter "B" in the figure.
7. Disconnect the power cable at the rear of the device.
8. Unscrew the slide rails from the 5 ¼ peripheral.
9. Install the slide rails on the replacement device or install them on the 5 ¼ filler panel that came
with your server.
10. If installing a replacement device, attach the Y-power cable to the device.
11. Slide the device or filler panel into the 5 ¼ bay until it clicks into place. See Figure 117.
206
"Installing the Top
A

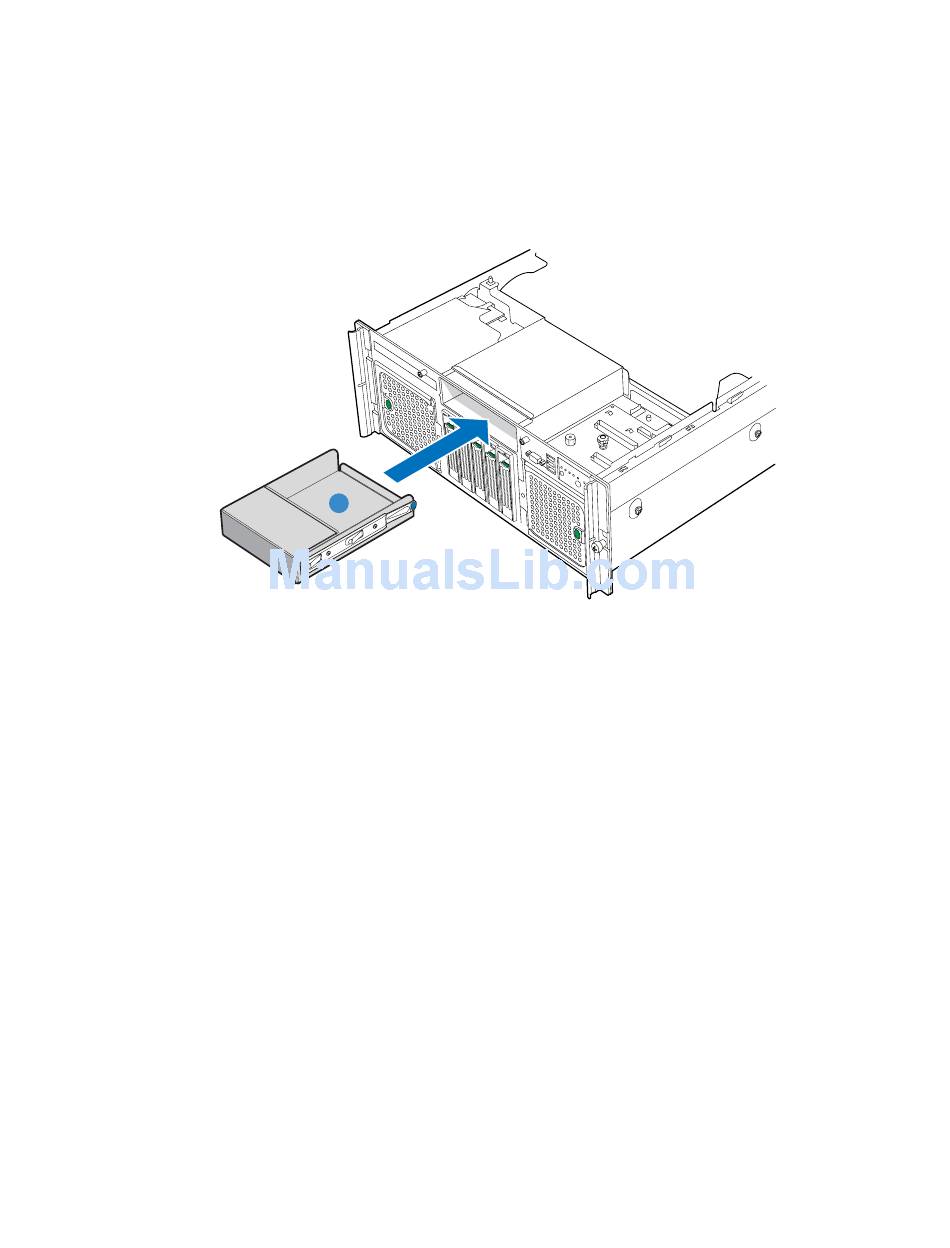

Figure 117. Installing 5 ¼ Peripheral into Server
"Removing the Top
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
Cover".
TP01436
"Safety
Information".
Cover".
