Technical Reference

Server Management LAN Connector (GCM)

The main board provides an RJ45 connector for Server Management connection. Below are the pin
descriptions.

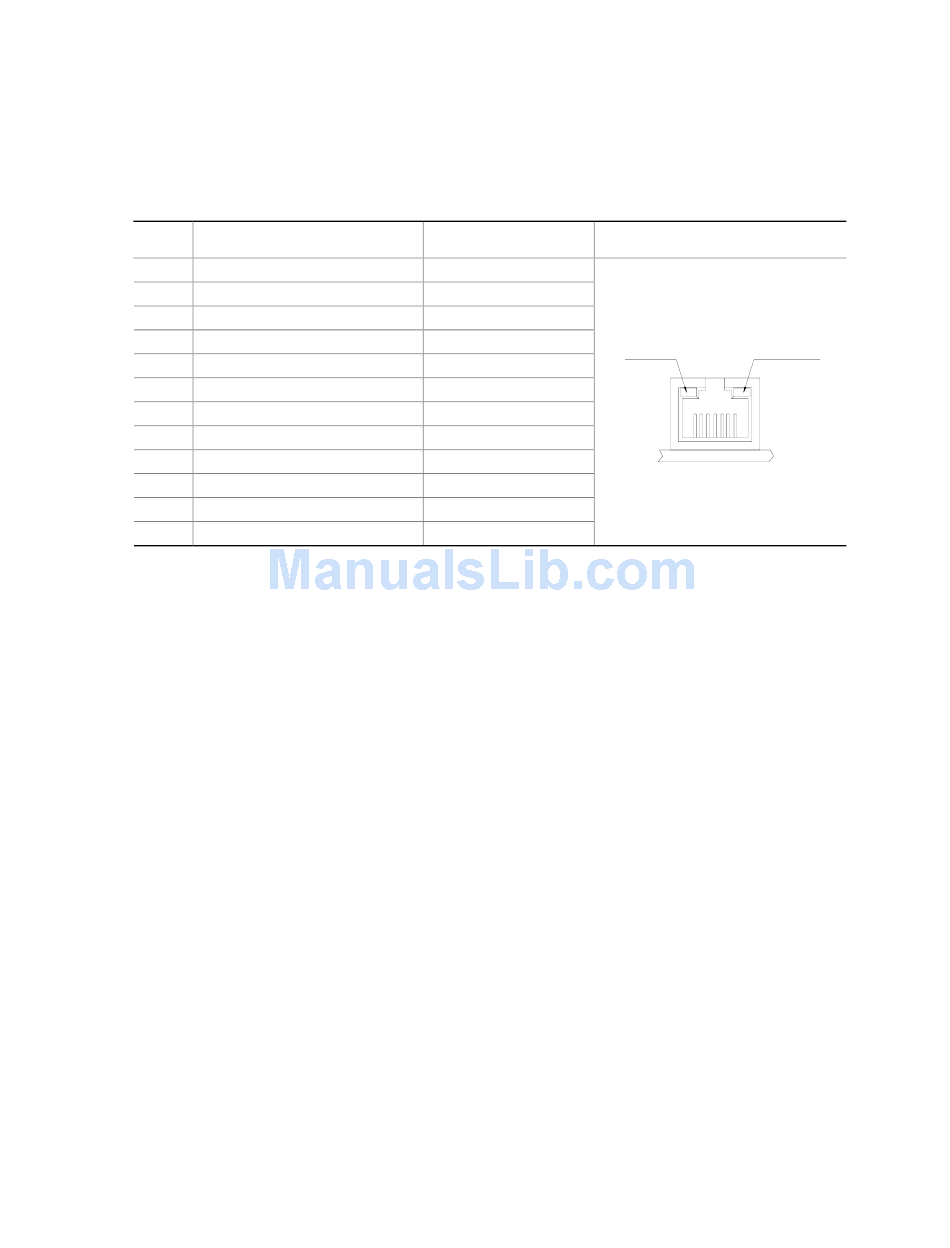

Table 18. Server Management Ethernet Connector
Pin Signal
1 GCM_NIC_RDM
2 GCM_NIC_RDP
3
4
5
6
7 GCM_NIC_TDM
8 GCM_NIC_TDP
A1 TP_GMC_RJ45_YEL_LED_A
C1 TP_GMC_RJ45_YEL_LED_C
A2 GMC_NIC_ACTLED_N
C2 GMC_NIC_ACTLED_R_N
240
Description
Magnetics Tap
Magnetics Tap
Magnetics Tap
Magnetics Tap
Yellow LED Anode
Yellow LED Cathode
Green LED Anode
Green LED Cathode
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
Server Management Ethernet
Connector
Green LED Yellow LED
