5. Once all the board LEDs are off, the latch on the handle (letter "A" in Figure 77) and lift the
memory board handle (letter "B" in the figure).
6. Pull up on the memory board handle to lift the memory board from the server. See letter "C"
in the figure.
7. Install DIMMs, then reinstall the memory board, or install a memory board air baffle:
- For instructions to install DIMMs, see
- For instructions to install the memory board air baffle, see
Board".
NOTE
If you fail to follow the proper Hot-plug Remove process you must unlock
the memory module by unlatching the handle shown in the figure above. By
pulling the handle, power to the slot will be immediately disabled. The
"surprise hot-remove" action may cause the operating system to crash, but
will not electrically damage the system.
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Installing and Removing
B
A

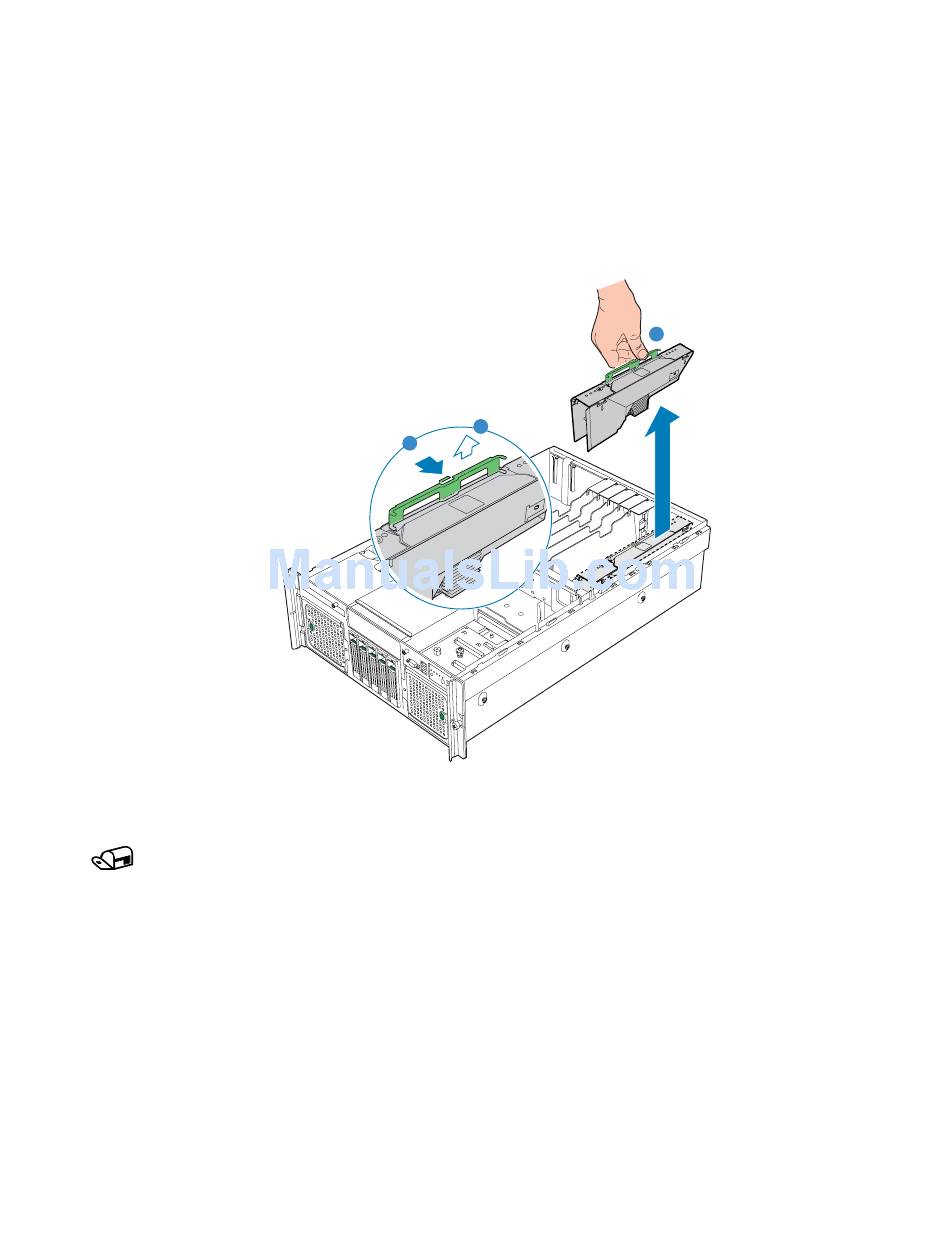

Figure 77. Memory Board Removal

DIMMs".
"Hot-insertion of a Memory
C
TP01417
157
