5. Remove the memory board or the memory board air baffle from Slot A to expose the battery.
For instructions, see
6. Place your finger on the edge of the battery, between the two smaller prongs that hold the
battery in place.
7. Without pulling up on the battery, push the battery toward the larger prongs until the edge of
the battery clears the small prongs.
8. Maintain pressure on the battery while pulling up on the released edge of the battery to lift it
from the server. See Figure 132.
CAUTION
Do not attempt to pull the battery up until it is pushed clear of the smaller
prongs. Doing so may damage the battery holder on the main board.
9. Dispose of the battery according to local ordinance.
10. Remove the new lithium battery from its package.
11. Being careful to observe the correct polarity, insert the battery at an angle into the battery
socket with the edge of the battery under the larger prongs in the battery socket.
12. Push the battery toward the larger prongs while pushing down on the raised edge of the battery
until it clicks into place under all four prongs.
13. Install the memory board or the memory board air baffle into slot A. For instructions, see
Insertion of a Memory
14. Install the top cover. For instructions, see
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Cold Removal of Memory

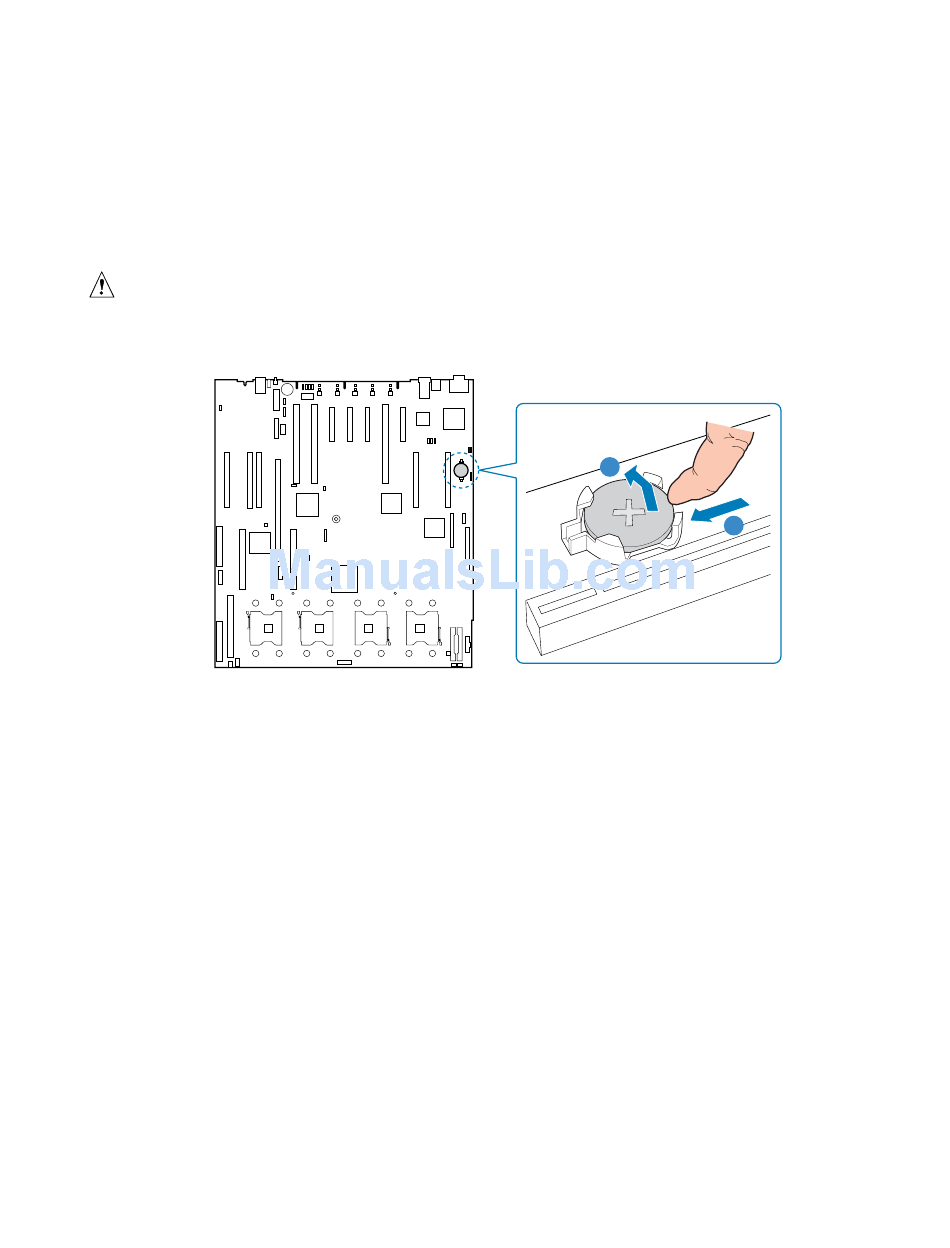

Figure 132. Removing the Battery

Board".
"Installing the Top
Board".
B
Cover".
A
TP01477
"Cold
225
