Working Inside the System
2. Lower the rear of the baffle into place, making sure the guides on each side of the air baffle will
correctly engage in the left and right chassis slots. See the following figure.
3. To seat the air baffle, push down on it at the two locations where the word "memory" is written
on the air baffle.
4. Connect the 100-pin cable to the front panel I/O board. See letter "B" in Figure 85 to locate the
connection point.
5. Connect the SCSI cable to the SCSI backplane board. See letter "C" in Figure 84 to locate the
cable connection point.
6. Connect the CD-ROM/DVD ROM power cable to the SCSI backplane board. See letter "D" in
Figure 84 to locate the cable connection point.
7. Connect any cables attached to the device in the 5 ¼" peripheral bay.
174

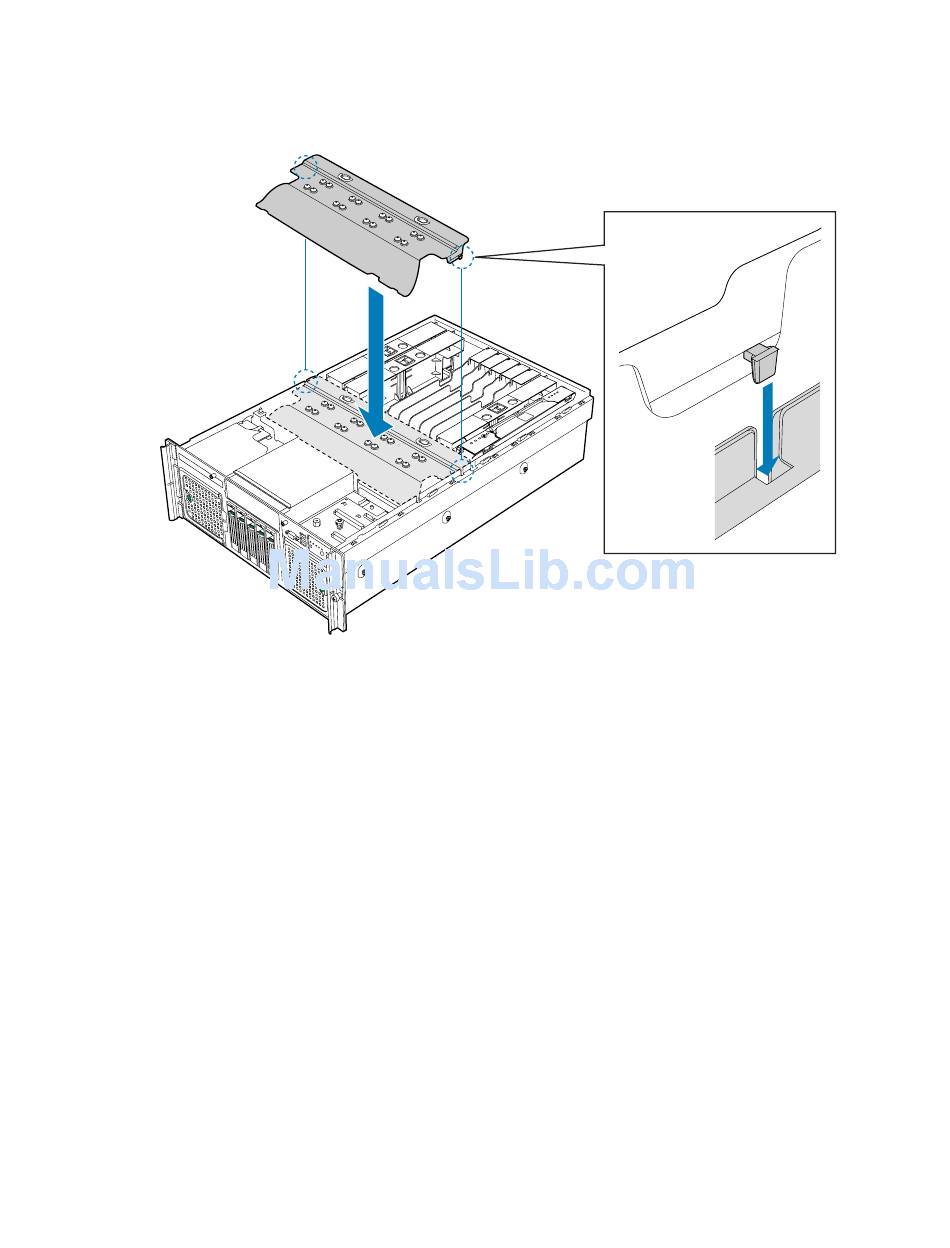

Figure 90. Engaging the Processor Air Baffle Guides

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
TP01415
