Figure 96. Set Processor Into Socket; Figure 97. Close Processor Socket Lever - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

Servicing the Processors
8. Position the processor over the socket, matching the two triangles and lining up the processor
pins with the socket. See letter "A" in Figure 96. Once centered in the socket, the processor
should easily insert into the socket. Do not apply force.
9. Once the processor is in the socket, gently press the processor to verify the processor has seated
properly.
10. Close the processor release lever. See Figure 97.
184
A
B
A

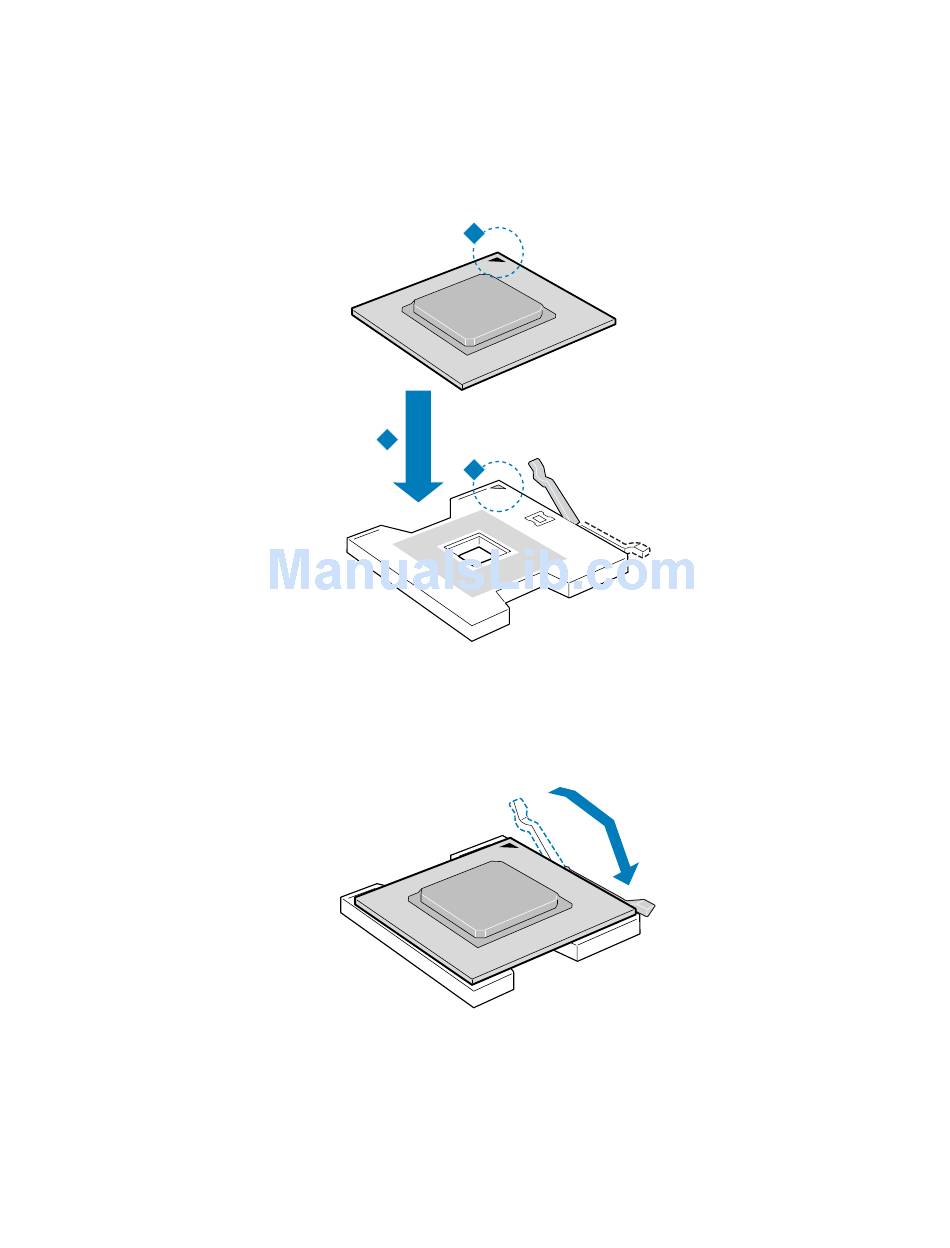

Figure 96. Set Processor into Socket

Figure 97. Close Processor Socket Lever

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
TP01425
TP01426
