8. Remove the center brace. For instructions, see
9. Disconnect all internal cables attached to PCI add-in cards.
10. Remove all installed PCI add-in boards. For instructions, see
Card".
11. Remove the Fibre Channel Module if it is installed. For instructions, see
Channel Module".
12. Remove all installed memory boards and memory board air baffles. For instructions, see
Removal of Memory
13. Remove all installed processors. For instructions, see
14. Remove all installed VRMs. For instructions, see
Converters" and
15. Remove the Intel® RAID Smart Battery if it is installed. For instructions, see
Intel® RAID Smart
16. Remove the Intel® RAID Activation Key if it is installed. For instructions, see
Intel® RAID Activation
17. Remove the RAID DIMM if it is installed. For instructions, see
DIMM".
18. Remove the Intel® Management Module. For instructions, see
Management Module".
19. Remove the plastic PCI slot dividers:
Push on the two release latches. See letter "A" in Figure 121.
Lift the dividers from the server. See letter "B" in the figure.
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
Board".
"Removing the Processor Cache VRM
Battery".
Key".
A

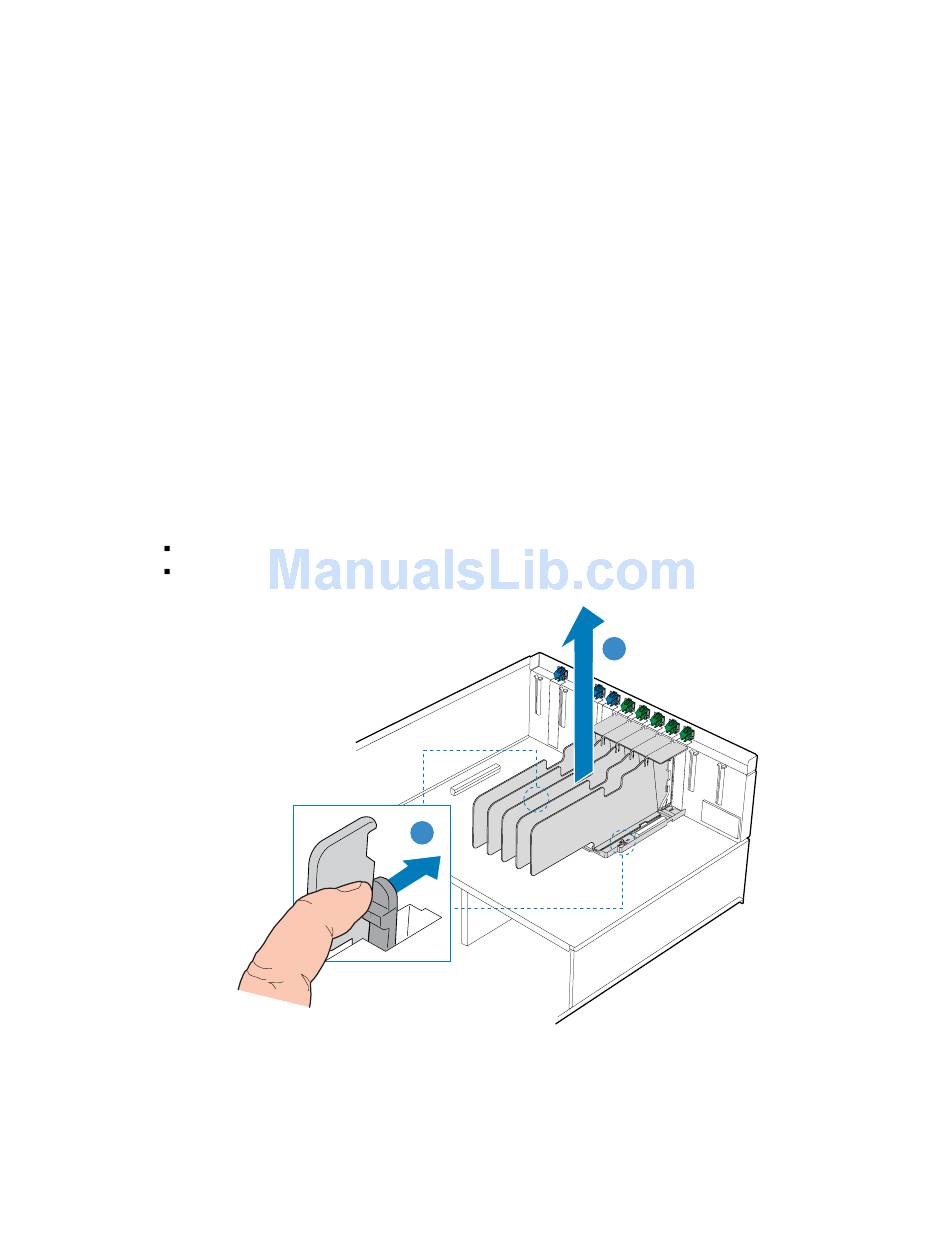

Figure 121. Removing the PCI Dividers

"Removing the Center Brace".
"Removing a Non-Hot-Plug PCI
"Removing a Processor".
"Removing the Processor Core VRM
Converter".
"Removing the RAID DDR2
"Removing the Intel®
B
"Removing the Fibre
"Cold
"Removing the
"Removing the
TP01494
