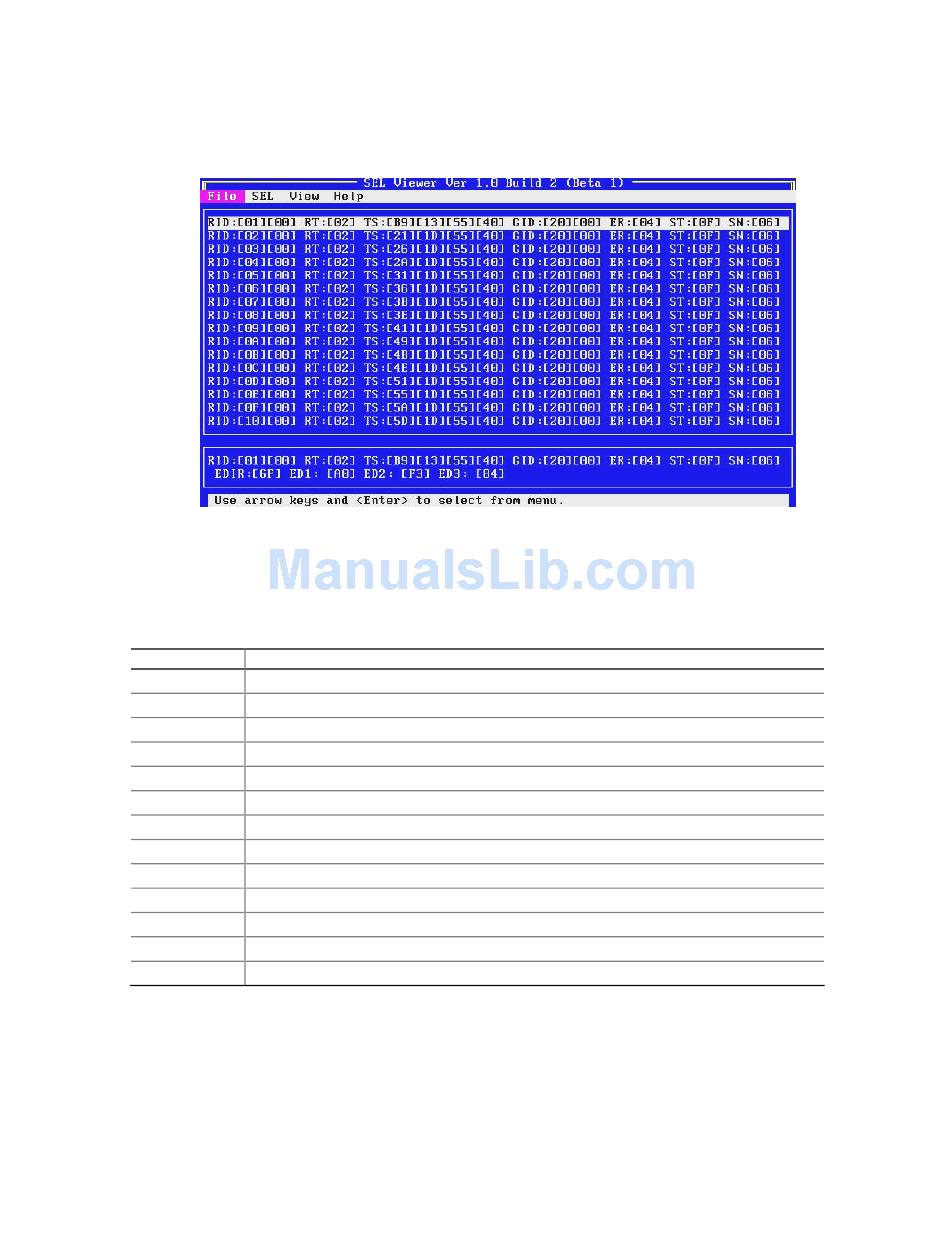

Figure 46. Sel Records In Hex Format - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

Service Technicians Guide
The SEL Viewer Utility displays the event logs in either an interpreted, textual form or in raw
hexadecimal format as read from the server. You can choose your display format. In the figure
below, the hexadecimal format is displayed.
Table 4 provides the abbreviations that are used in the hexadecimal mode display.
Table 4. Abbreviations Used in Hexidecimal Mode Display
Abbreviation Description
RID Record ID
RT Record Type
TS Time Stamp
GID Generator ID
ER Event Message Format Revision
ST Sensor Type
SN Sensor Number
EDIR Event Dir and Event Type
ED1 Event Data 1
ED2 Event Data 2
ED3 Event Data 3
MID Manufacturers ID (used when displaying OEM SEL records type C0h-DFh)
OEM OEM defined (used when displaying OEM SEL records type C0h-DFh and E0h-FFh)
118

Figure 46. SEL Records in HEX Format

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
