Installing Memory Board Air Baffle

1. Observe the safety precautions, warnings, and cautions described in
2. Remove the top cover. For instructions, see
3. Insert the memory board air baffle into the memory board slot with the arrow on the tab
pointing to the right. The memory board air baffle will lock into the memory board slot. See
Figure 75.

Hot-removal of a Memory Board

NOTE
If you remove a memory board from your server, either you must replace it
with a replacement memory board or you must install a memory board air
baffle.
If the memory board is installed in a system that is powered on, the following steps are required to
ensure proper hot-removal so that the system will not crash:
1. Observe the safety precautions, warnings, and cautions described in
2. Remove the top cover. For instructions, see
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Removing the Top

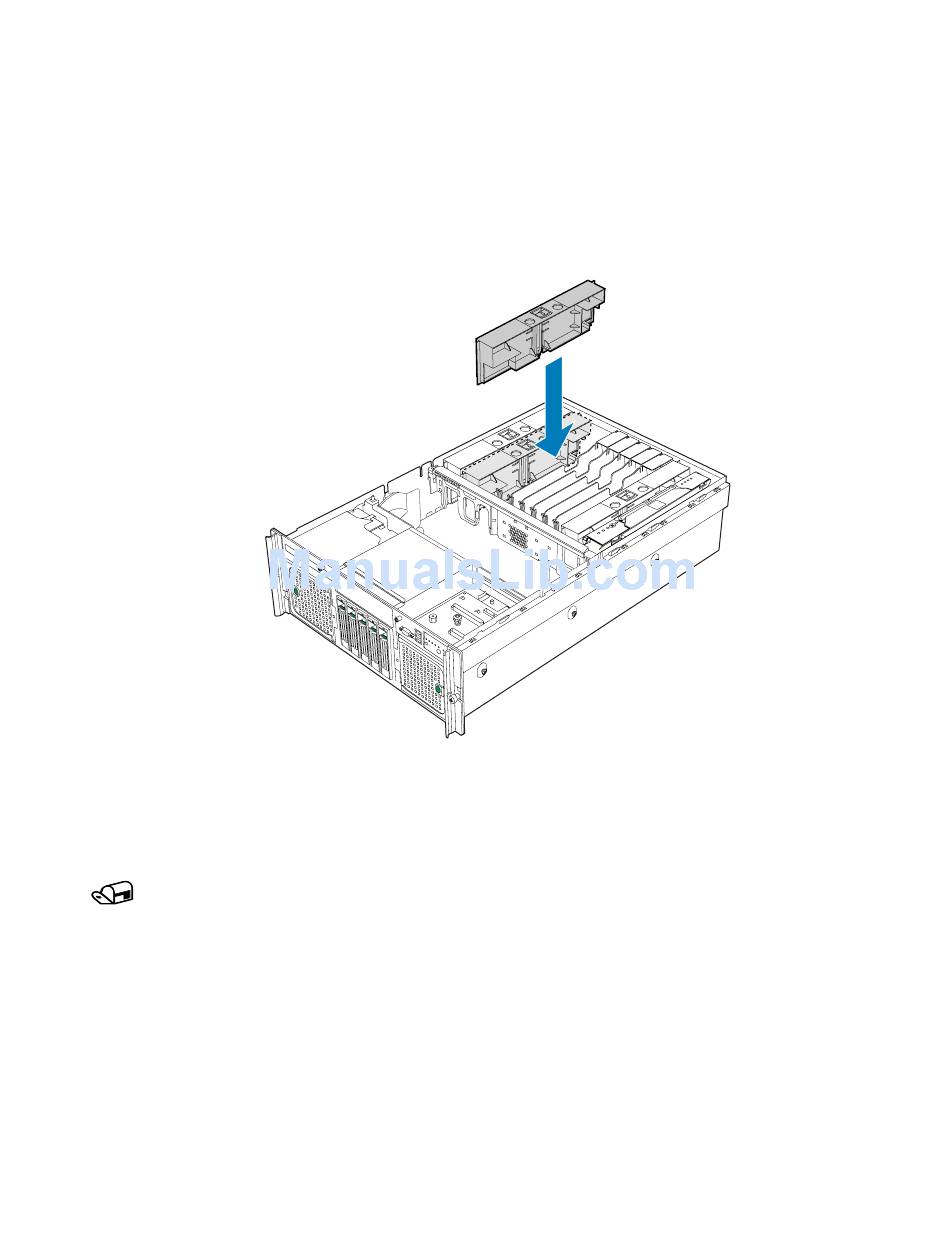

Figure 75. Installing Memory Board Air Baffle

"Removing the Top
"Safety Information".
Cover".
TP01441
"Safety Information".
Cover".
