Installing the CD-ROM/DVD-ROM Drive

1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see
5. Remove the new drive from its protective wrapper, and place it component-side down on a
clean ESD-protected work surface.
6. Record the drive model and serial numbers in your
7. Attach the SATA-to-IDE converter board to the CD-ROM/DVD-ROM drive.
8. Place the left side of the drive into the drive carrier as shown in Figure 114.
9. Press the CD-ROM/DVD-ROM drive into the carrier until it is firmly secured.

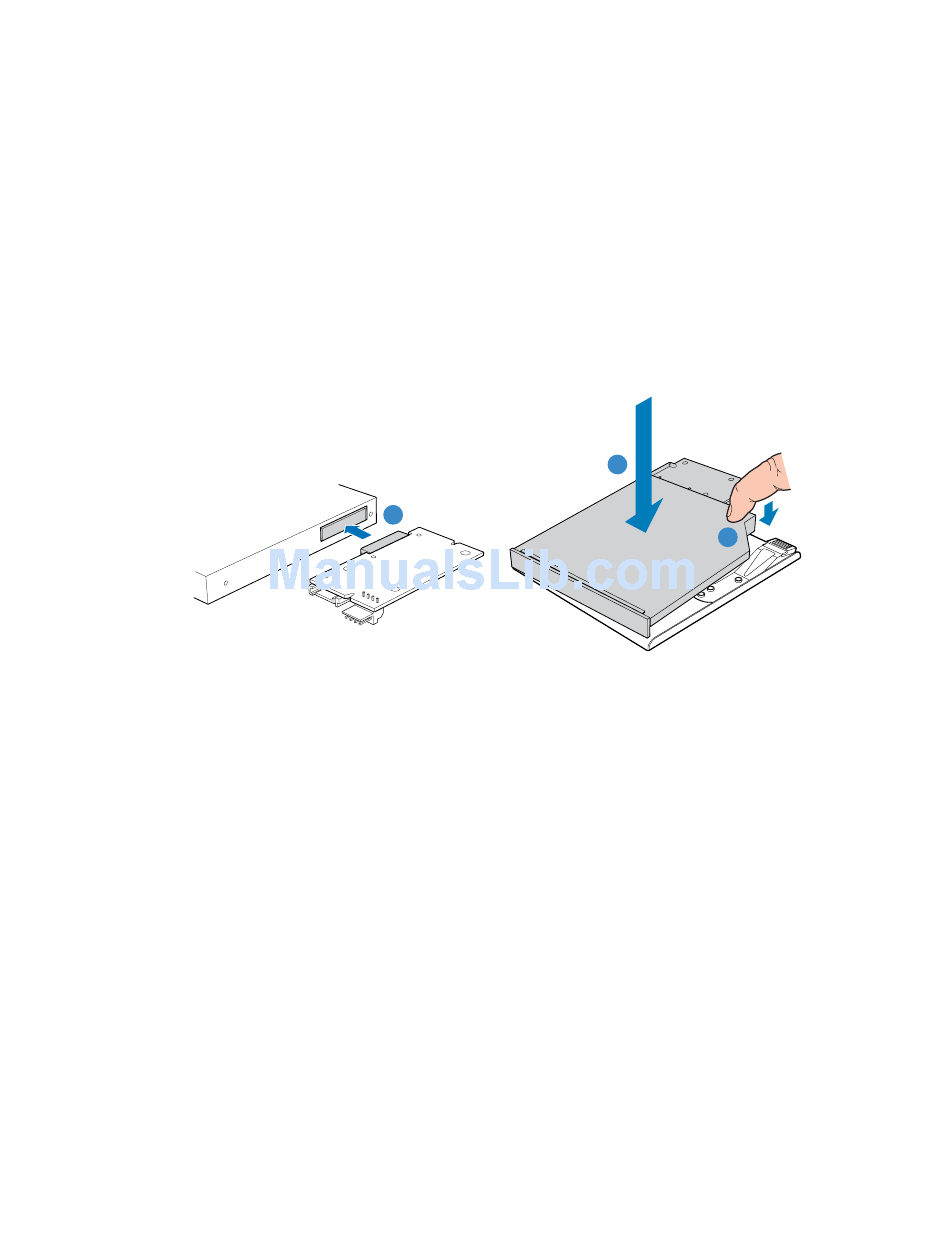

Figure 114. Assembling the CD-ROM/DVD-ROM Drive and Carrier

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Removing the Top
"Equipment
A
"Safety Information".
Cover".
Log".
B
C
TP01470
