Saving the Configuration to a Disk

When you have completed the data entry portion of the SCW, you are prompted to save the
configuration to a CD-ROM drive or to a USB flash memory device. This allows future servers to
be configured identically to this server, using the silent mode of the SCW. The figure below shows
the Save Server Configuration screen.
Save Server Configuration to Disk: The Save Server Configuration checkbox saves the
configuration to a USB accessible device. This makes configuring a group of identical servers fast
and easy. If you check the option to save the server's configuration, the SCW displays a file save
dialog, allowing you to enter a location and file name where the configuration is to be saved.
The file/open dialog follows the standard Windows file/open dialog scheme.
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide

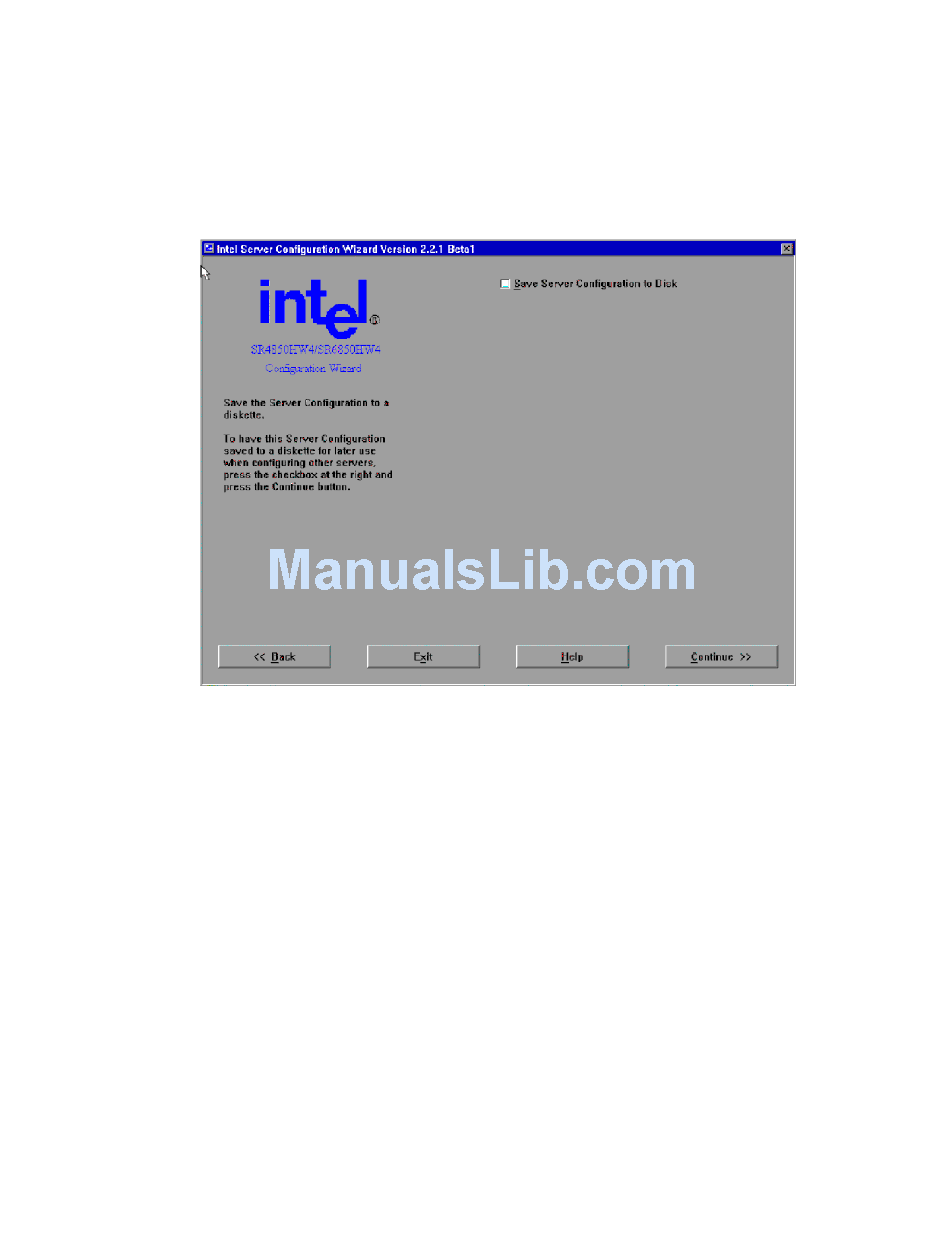

Figure 40. Save Server Configuration Screen

103
