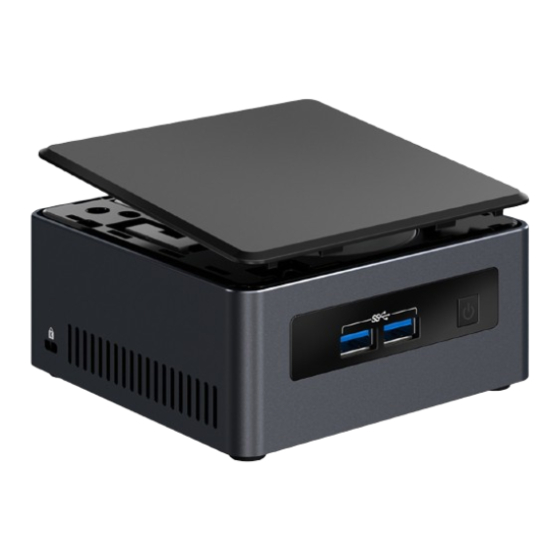

- Page 1 User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE Intel® NUC Kit NUC7i3DNHE Intel® NUC Kit NUC7i5DNHE Intel® NUC Kit NUC7i7DNHE User Guide...
-
Page 2: Before You Begin
If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: •... - Page 3 • Install the latest device drivers and software • Open the Intel NUC Chassis To open the Intel NUC chassis, follow these steps: 1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
-
Page 4: Installing And Removing Memory
User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE Installing and Removing Memory Intel NUC Kits NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE have two 260-pin DDR4 SO-DIMM sockets. Memory requirements: • 1.2V low voltage memory • 1866 or 2133 MHz SO-DIMMs • Non-ECC Find compatible memory modules in the ®... -
Page 5: Install An M.2 Ssd
3. Insert the bottom edge of the M.2 card into the connector (B). 4. Secure the card to the standoff with the small silver screw (C). Install a 2.5” SSD or Hard Drive Find compatible 2.5” SSDs and hard drives in the Intel® Product Compatibility Tool: • NUC7i3DNHE •... - Page 6 User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE connectors of the SATA daughter card (A). 2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B). Set the drive bay bracket down inside the chassis (C),...
-
Page 7: Close The Chassis
User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. Attach and Use the VESA Bracket (Optional) Follow these instructions to attach and use the VESA mount bracket: 1. -
Page 8: Connect Power
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket. Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes... -
Page 9: Install An Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well as versions of Linux that have been reported as compatible by Intel NUC owners. Refer to Operating System Installation for system requirements and installation steps.
