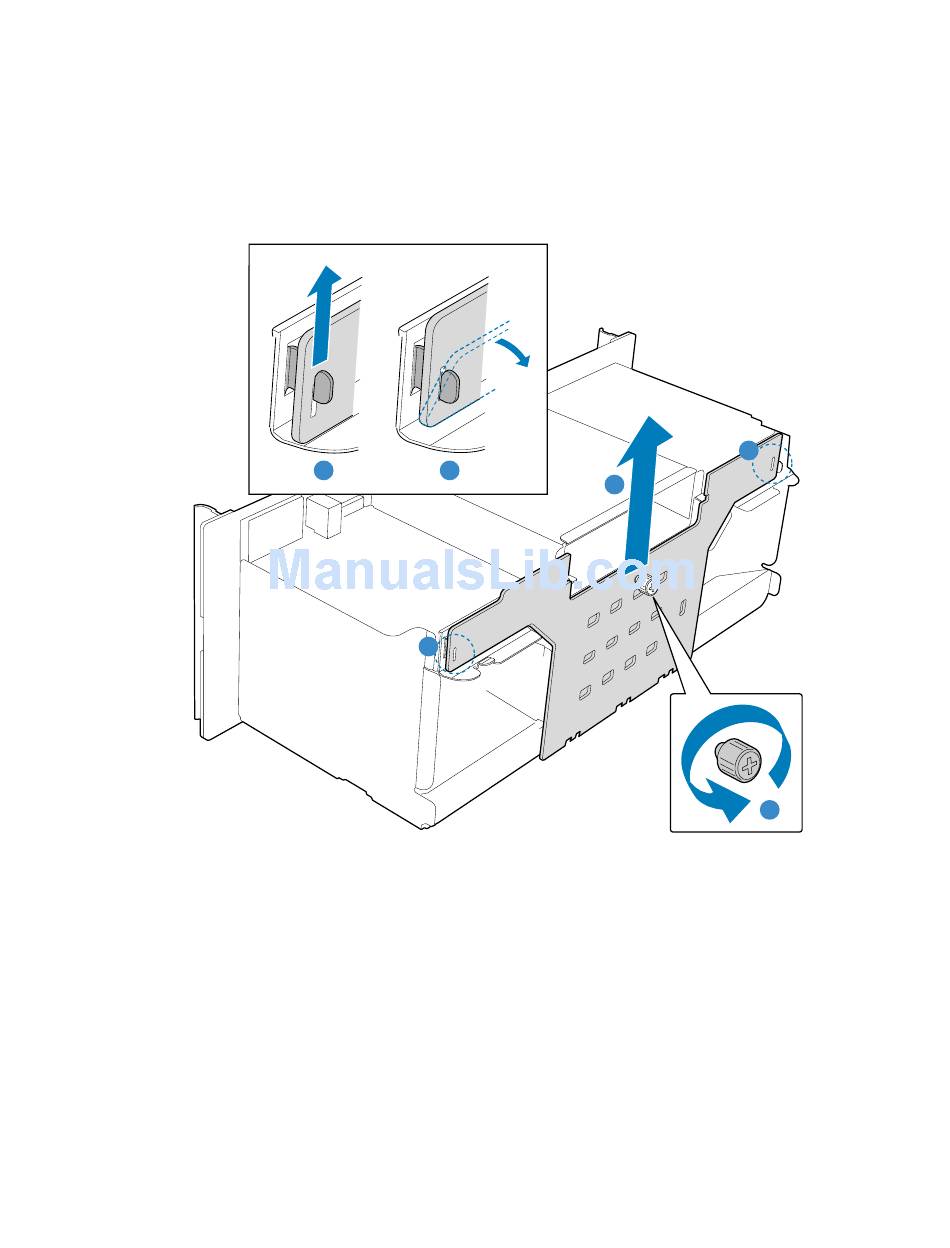

Figure 126. Removing The Scsi Backplane Board - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

8. Loosen the captive screw that secures the SCSI backplane board to the chassis. See letter "A"
in Figure 126.
9. Pull the SCSI backplane board upward slightly to disengage the tabs. See letter "B" in the
figure.
10. Tilt the SCSI backplane board towards the rear and lift it from the system. See letters "C" and
"D" in the figure.
11. Store the SCSI backplane board in an anti-static bag.
12. Install the replacement SCSI backplane board or replace the power distribution board if
necessary. For instructions, see
Power Distribution
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
B C
B

Figure 126. Removing the SCSI Backplane Board

"Installing the SCSI Backplane
Board".
B
C
A
TP01475
Board" and "Replacing the
217
