7. Rotate the retention latch at the rear of the card slot into the up position. See letter "A" in
Figure 70.
8. If a long card is installed, press the blue plastic piece at the front of the card.
9. Pull up on the card to remove it. See letter "B" in the figure.
10. Store the card in an antistatic protective wrapper.
11. Install an expansion slot cover over the empty slot or install a replacement PCI card:
-
To install an expansion slot cover: align the cover with the slot from the rear of the
chassis. Press the cover into the slot. Rotate the bracket at the rear of the card slot into the
down position. See letter "C" in Figure 70.
-
To install a replacement PCI card: see
12. Install the top cover. For instructions, see
146
B

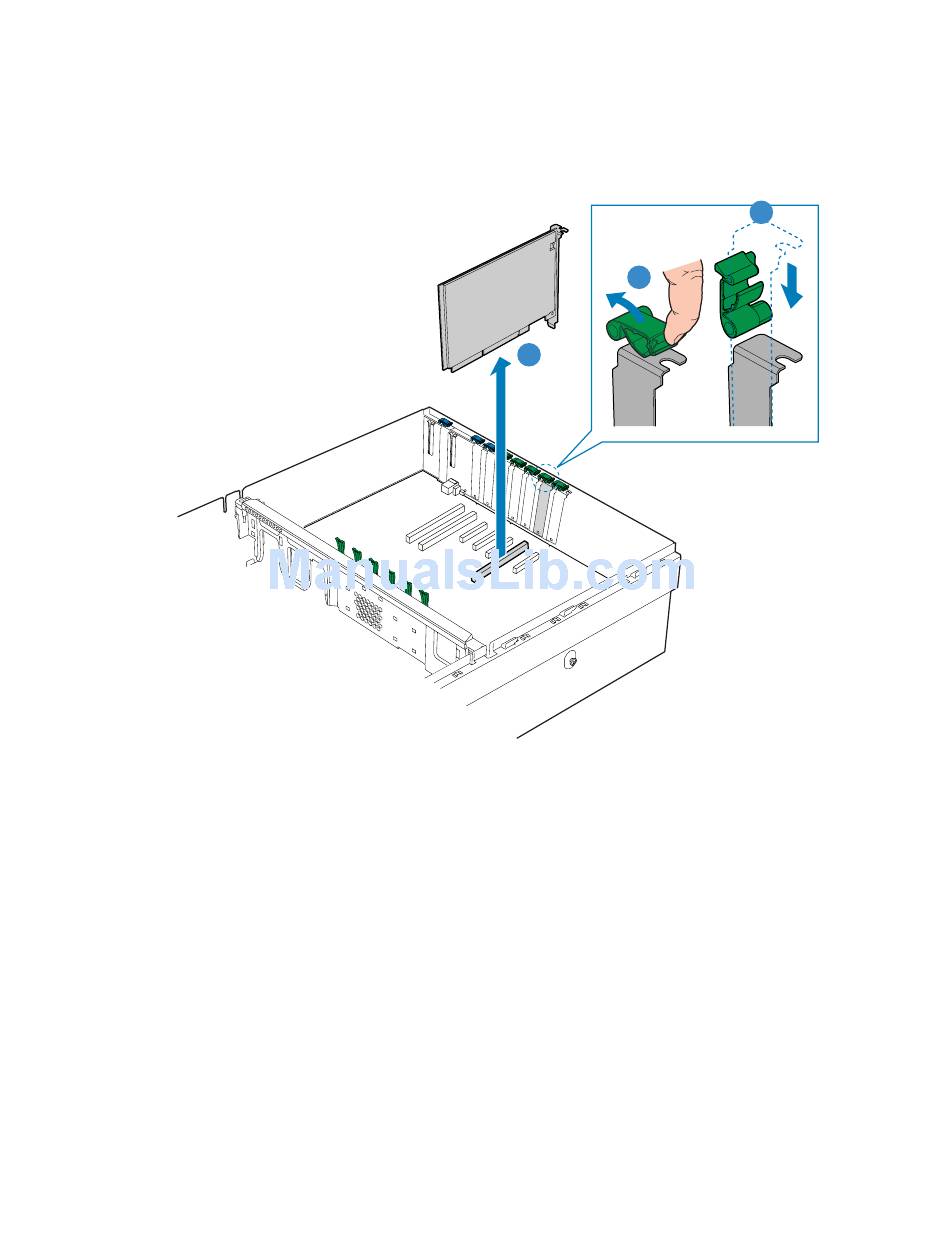

Figure 70. Removing a PCI Card
"Installing a Hot-plug PCI Add-in
"Installing the Top
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
C
A
TP01453
Card".
Cover".
