Service Technicians Guide

Installing the Fibre Channel Module

1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see
5. Remove the memory board or memory board air baffle from Slot C. For instructions, see
Removal of Memory
6. Being careful not to touch the components or gold edge-connectors on the Fibre Channel
Module, remove the Module from the anti-static bag, and place it on a clean, ESD-protected
work surface.
7. Record the serial number of the Fibre Channel Module in your
8. Rotate the retention lever at the rear of the Fibre Channel Module slot into the up position. See
letter "A" in Figure 73.
9. If necessary, remove the expansion slot cover in the slot you are using by sliding it up from
inside the chassis. See letter "B" in the figure.
10. Align and slide the adapter board down until it seats in the connector. See letter "C" in the
figure.
11. Press the card down firmly until it seats into the slot.
12. Attach any required cables to the Fibre Channel Module.
13. Install the memory board or memory board air baffle into Slot C. For instructions, see
Insertion of a Memory
14. Install the top cover. For instructions, see
152
"Removing the Top
Board".
C

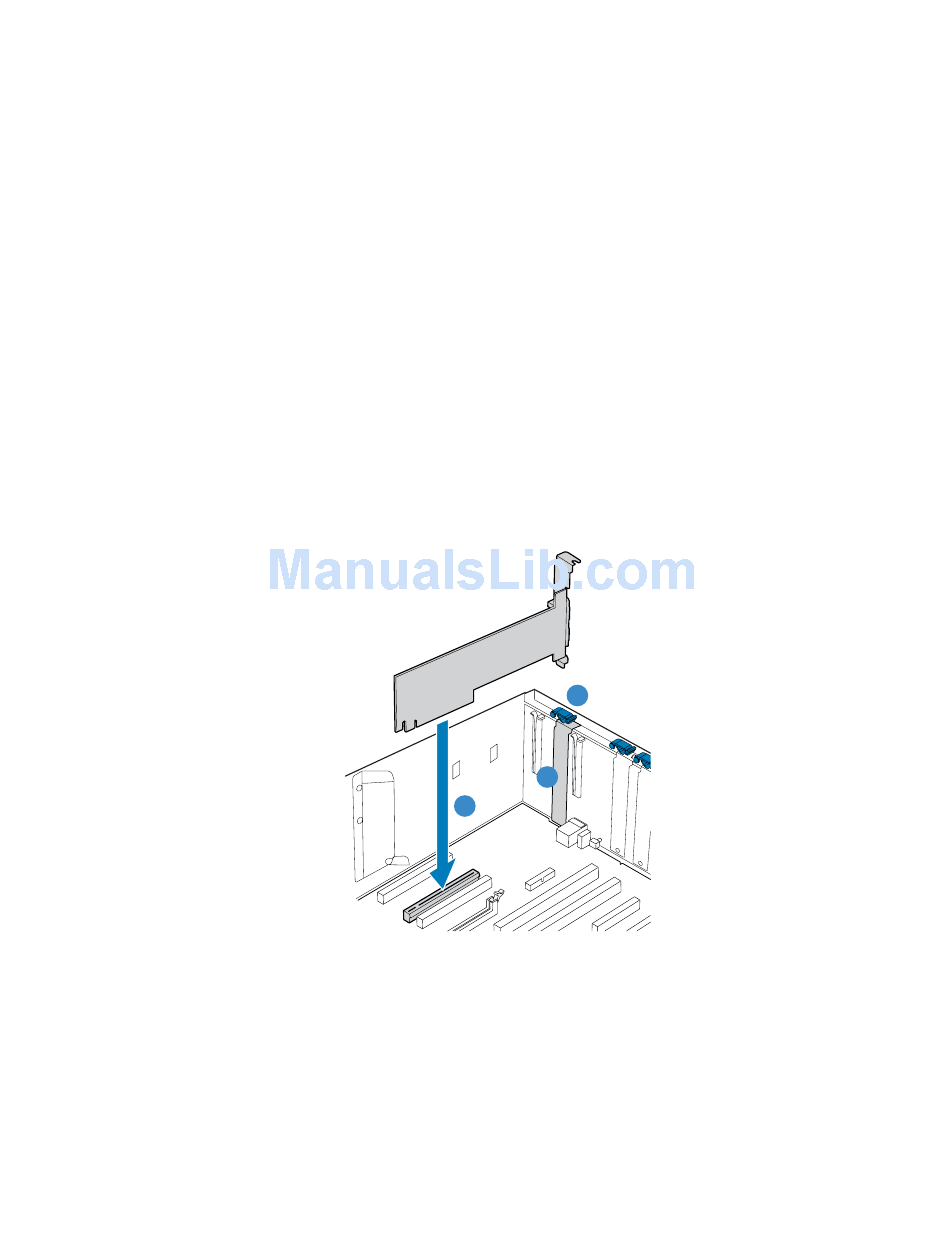

Figure 73. Installing a Fibre Channel Module

Board".
"Installing the Top
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Safety Information".
Cover".
"Equipment Log".
A
B
TP01430
Cover".
"Cold
"Cold
