Servicing the Peripheral Area Components
8. Lift up on the rear right corner of the CD-ROM/DVD-ROM to remove it from the carrier. See
letters "A" and "B" in Figure 113.
9. Disconnect the SATA-to-IDE converter board. See letter "C" in the figure.

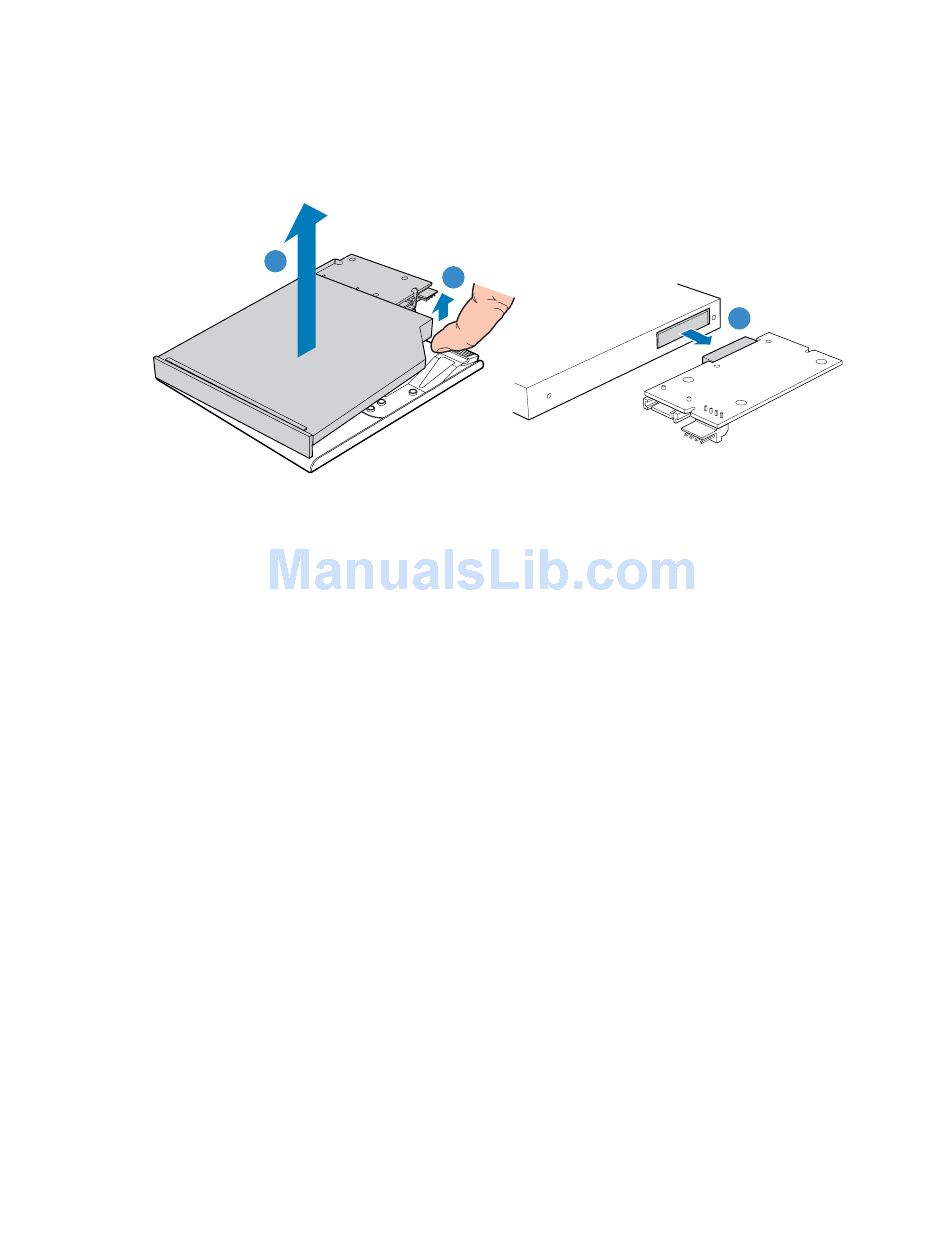

Figure 113. Removing the CD-ROM/DVD-ROM Drive from the Carrier

10. Store the drive in an antistatic protective wrapper or in its original packaging.
11. Install a new CD-ROM / DVD-ROM drive into the carrier or slide the empty carrier into the
server.
12. Install the top cover. For instructions, see
202
B
A
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Installing the Top
Cover".
C
TP01469
