Servicing the Server Boards

Replacing the Front Panel I/O Board

The front panel I/O board is located next to the front fan bay.

Removing the Front Panel I/O Board

1. Observe the safety precautions, warnings, and cautions described in
2. Remove the top cover. For instructions, see
3. Remove the processor air baffle. For instructions, see
4. Disconnect all cables attached to the front panel I/O board.
5. Pull up the captive screw. See letter "A" in Figure 130.
6. Slide the board towards the rear of the chassis until the tabs disengages with the board. See
letters "B" and "C" in the figure.
7. Lift the board from the chassis. See letter "D" in the figure.
8. Install the replacement front panel I/O board. For instructions, see
I/O Board".
222
A
B
C
D

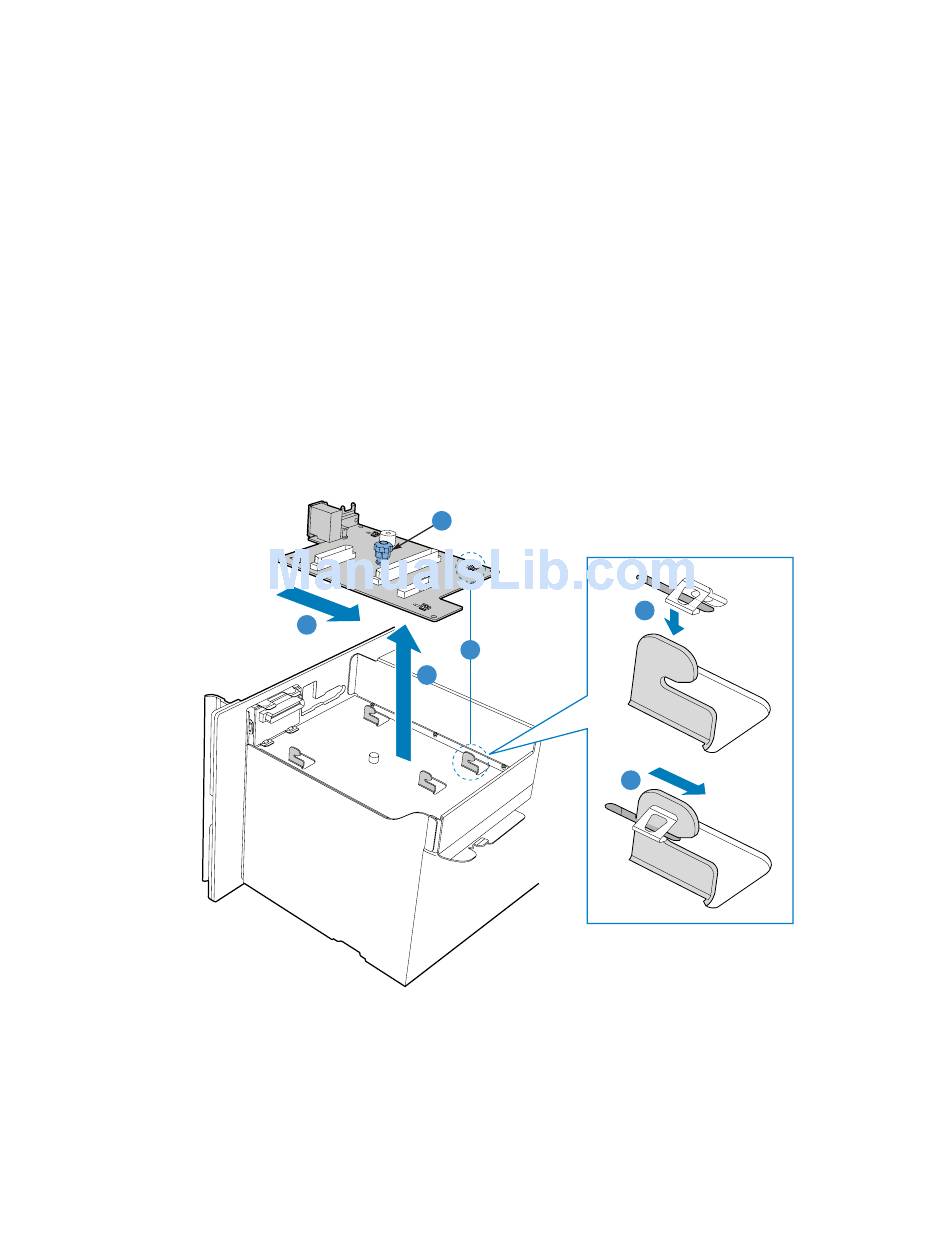

Figure 130. Removing the Front Panel I/O Board

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Safety
"Removing the Top Cover".
"Removing the Processor Air
"Installing the Front Panel
C
B
Information".
Baffle".
TP01473
